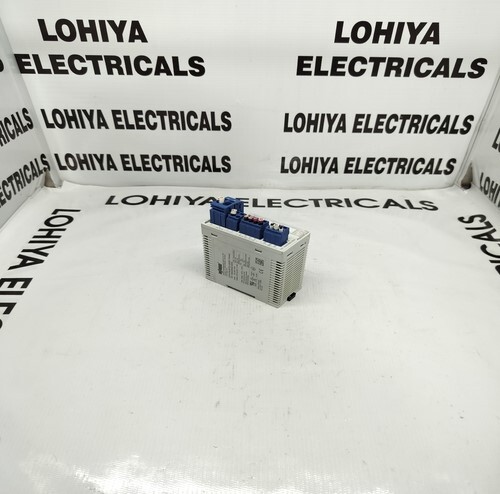

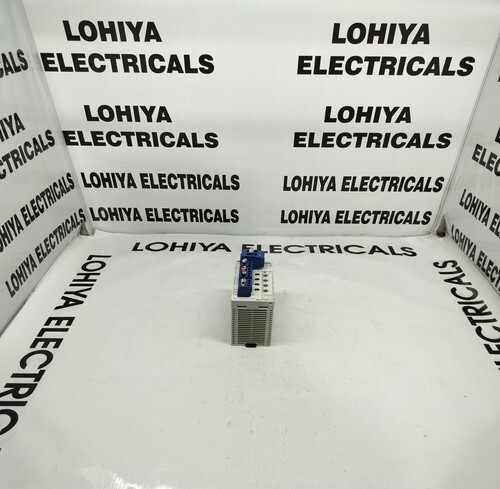

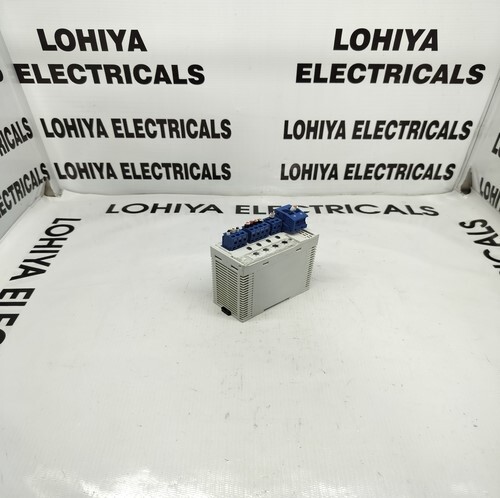

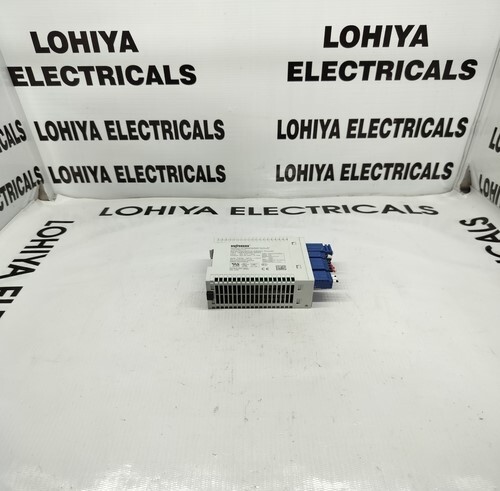

WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER Specification

Output
1 Channel, Normally Open Contact

Installation Type
DIN rail mounting

IP Rating
IP20

Current
6 A

Usage & Applications
Industrial control panels, machine safety, circuit protection, automation equipment

Mounting Type
DIN Rail

Connectivity Type
Screw connection

Features
Electronic trip, adjustable current rating, low profile design, status LED, resettable

Pole Type
Single Pole

Frequency
DC

Protection Level
IP20

Switch Type
Electronic / Circuit Breaker

Display
Status LED indicators

Phase
Single phase, DC

Product Type
Electronic Circuit Breaker

Operating Temperature
-25C to +70C

Working Temperature
-25C to +70C

Input
DC 24 V

Application
Protection of DC 24 V systems

Supply Voltage
DC 24 V (18...30 V)

Accuracy
10%

Dimension (L*W*H)
98 mm x 6 mm x 94 mm (approx.)

Weight
Approx. 60 g

WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
Yes

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America

Main Domestic Market
All India

About WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER

WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER (USED CONDITION) Supplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- 787-1664/0106-0000

Product Name:- WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER

Brand:- WAGO

Condition:- USED CONDITION

WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER is available in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT:-

Description:-

787-1664/0004-1000
ELECTRONIC CIRCUIT BREAKER
4-CHANNEL
24 VDC 15.2AMPS
INPUT VOLTAGE
3.8 A OUTPUT ACTIVE CURRENT LIMITATION
NEC CLASS 2
COMMUNICATION CAPABILITY
DIN RAIL MOUNT

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- M.G.

Versatile Circuit Protection for Industrial Applications

The WAGO 787-1664/0106-0000 Electronic Circuit Breaker is engineered to deliver reliable, adjustable protection in DC 24 V systems. Perfect for use in industrial control panels, automation setups, and machinery, its resettable design and fast response time ensure equipment safety while minimizing system downtime.

Easy Installation and Monitoring

Designed for straightforward DIN rail mounting and featuring clear screw connections, this breaker enables quick installation. The built-in status LED indicators facilitate real-time monitoring of operational states, helping users assess protection status at a glance.

Adaptive and Durable Performance

With an operating temperature range from -25C to +70C and sturdy IP20-rated plastic housing, the 787-1664/0106-0000 ensures consistent protection in varied industrial environments. The electronic, adjustable trip curve empowers precise circuit customization to suit different equipment needs.

FAQs of WAGO 787-1664/0106-0000 ELECTRONIC CIRCUIT BREAKER:

Q: How does the WAGO 787-1664/0106-0000 Electronic Circuit Breaker detect and respond to faults?

A: This circuit breaker uses electronic tripping technology, allowing it to quickly sense abnormal current levels. With a response time of under 100 ms, it disconnects the faulty circuit to prevent damage, while an adjustable trip curve gives flexibility in setting the protection threshold.

Q: What is the recommended process for resetting the breaker after a trip?

A: The breaker can be reset either manually using a built-in reset button or remotely through external control input. After addressing the fault, simply activate the reset mechanism to restore normal operation.

Q: When should I choose this particular model for my application?

A: Select the WAGO 787-1664/0106-0000 for applications requiring reliable DC 24 V circuit protection, adjustable trip settings, and compact DIN rail mountingideal for industrial control panels, factory automation, or machine safety where space and response time are critical.

Q: Where can this circuit breaker be installed and used?

A: Installation is recommended on DIN rails within industrial enclosures or control cabinets. The device is suited for indoor environments where IP20 protection level is adequate, commonly within automated machinery, panels, and process equipment setups.

Q: What are the main benefits of using this electronic circuit breaker over traditional fuses?

A: Unlike fuses, the breaker is resettable, reducing maintenance and replacement costs. Its adjustable trip curve offers tailored protection, while the status LED ensures quick diagnostics. The electronic design provides fast, accurate response to overloads, which enhances equipment safety.

Q: How can I connect wires to the WAGO 787-1664/0106-0000, and what is the terminal size supported?

A: Wiring is done through screw-type connections, supporting solid or stranded wires up to 2.5 mm. This ensures a secure and reliable electrical connection within the control system.
