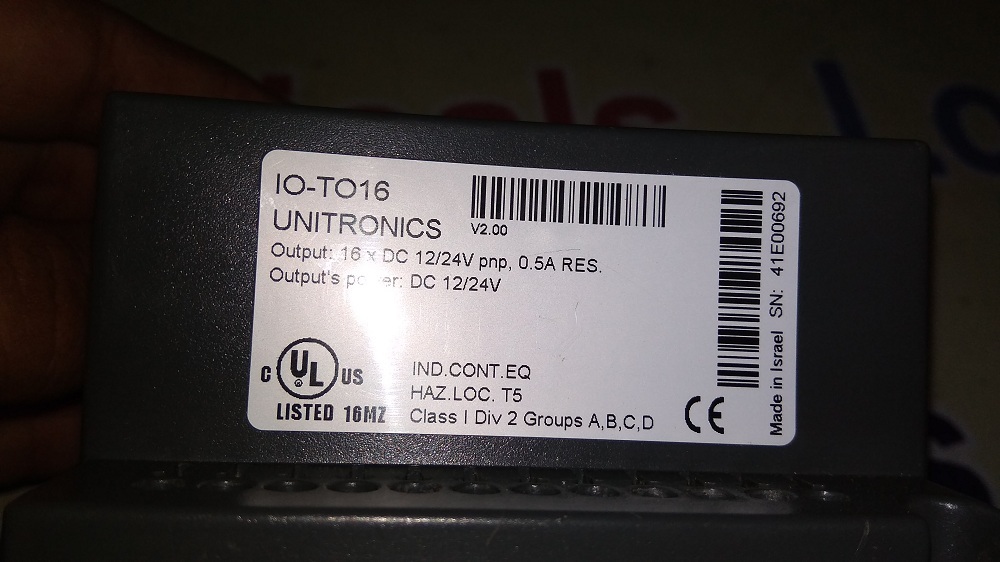

UNITRONICS MODULE

Get a Price/Quote

UNITRONICS MODULE Specification

Current
Up to 0.4A (varies per I/O channel type)

IP Rating
IP20

Sensor Type
Compatible with various industrial sensors

Features
Hot-pluggable, compact, modular, flexible configuration

Installation Type
DIN Rail Mount

Frequency
Depends on input configuration, digital up to 1kHz

Display
No display

Measuring Range
Depends on configuration (Voltage 0-10V, Current 4-20mA)

Protection Level
Over-voltage and short-circuit protection

Phase
Single phase (power supply)

Output
Digital output (transistor/relay), analog output optional

Switch Type
Electronic (output), input types selectable

Usage & Applications
PLC system expansion in automation and control

Mounting Type
DIN rail mount

Connectivity Type
RS485, CANbus, proprietary expansion port

Product Type
I/O Expansion Module

Operating Temperature
0°C to 55°C

Working Temperature
-20°C to 60°C

Input
Digital (sink/source), Analog (Voltage/Current dependent)

Application
Industrial automation, process control, factory management

Supply Voltage
24 VDC

Accuracy
±0.5% FSR (for analog channels)

Dimension (L*W*H)
95 mm x 57 mm x 90 mm

Weight
Approx. 170g

Material
Polycarbonate enclosure

Maximum Channels
Up to 16 digital I/O channels per module (model dependent)

Compatible PLC Series
Unitronics Vision, Samba, UniStream series

Expansion Bus
Unitronics proprietary expansion port with up to 8 modules

Indication
Status LEDs for inputs/outputs

Storage Temperature
-20C to 70C

Power Consumption
Max 3.5W

Module ID Setting
Configurable via DIP switch

Isolation Voltage
500V RMS (input/output to logic)

Response Time
<1ms (digital input/output)

Ambient Humidity
10% to 95%, non-condensing

UNITRONICS MODULE About

Experience the elite performance of the UNITRONICS MODULE, designed to deliver monumental reliability and enviable flexibility for your industrial automation needs. Compatible with Unitronics Vision, Samba, and UniStream PLC series, this module boasts up to 16 phenomenal digital I/O channels per unit (model dependent). Featuring hot-pluggable modularity, a robust polycarbonate enclosure, and configurable DIP switches, it supports seamless integration via proprietary expansion bus. Benefit from protection mechanisms, rapid response (<1ms), and comprehensive connectivity (RS485, CANbus). Buy online to explore superior automation for process control and factory management environments.

Versatile Applications Across Industrial Environments

The UNITRONICS MODULE excels in an array of applications, including factory process control, industrial automation, and facility management. Its modular construction and compatibility with a variety of industrial sensors allow for flexible system expansion and adaptation. The configuration process is straightforwardmount on DIN rails and utilize the proprietary expansion port to link up to eight modules. This module empowers organizations to streamline and optimize operations in manufacturing, packaging, and complex process management settings.

Swift Availability & Payment Solutions for Business

The UNITRONICS MODULE is stock ready and available for immediate order. We ensure careful packing & dispatch to safeguard your investment during transit. The main domestic market encompasses a broad industrial clientele, with expenditures managed through flexible payment terms to suit your business requirements. Delivery times are minimized, providing you with quick access to this essential automation component, so your projects remain on schedule and operations continue without interruption.

FAQs of UNITRONICS MODULE:

Q: How does the UNITRONICS MODULE integrate with existing PLC systems?

A: The module is compatible with Unitronics Vision, Samba, and UniStream PLC series and connects via a proprietary expansion port. Installation is straightforward, utilizing DIN rail mounting and configuration through DIP switches.

Q: What protections does the UNITRONICS MODULE offer for safe industrial operation?

A: It provides over-voltage and short-circuit protection, as well as an IP20 rating, ensuring safe and reliable operation in industrial automation environments.

Q: Where can the UNITRONICS MODULE be effectively used?

A: This module is ideal for applications in factory automation, process control, facility management, and industrial expansion projects requiring versatile digital and analog I/O capabilities.

Q: What payment and delivery terms are available for purchasing the UNITRONICS MODULE online?

A: Flexible payment options are supported, with immediate stock availability. Packing and dispatch are managed to ensure safe delivery, and typical delivery times are minimized to quickly meet customer requirements.

Q: What are the main benefits of using this module in industrial automation systems?

A: Users benefit from compact modularity, configurable inputs/outputs, robust protection features, hot-pluggable design, and swift response times, resulting in enviable system flexibility and scalability.
