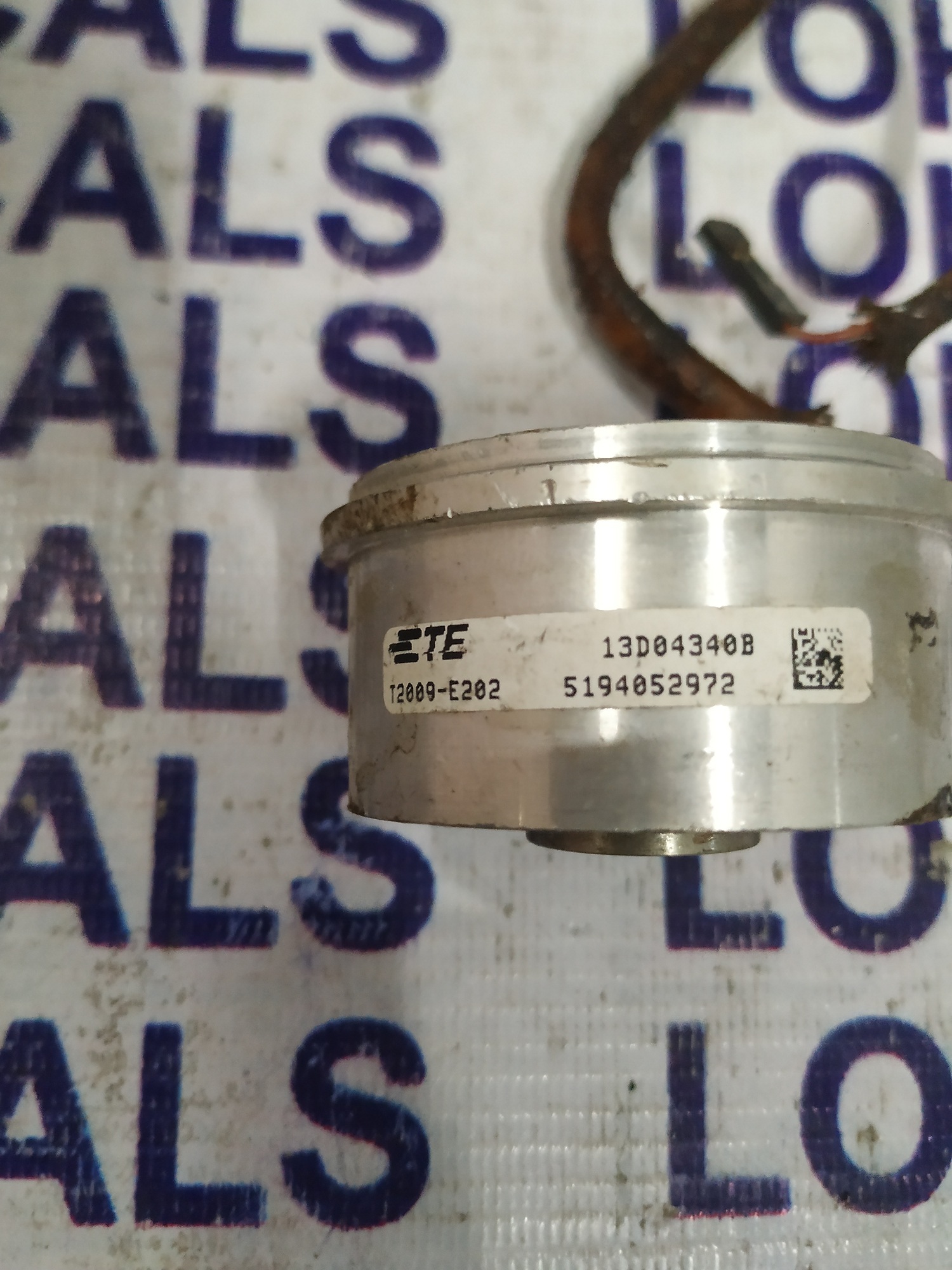

TYCO ENCODER T2009-E202

Get a Price/Quote

TYCO ENCODER T2009-E202 Specification

Cabinet Material
Metal Housing

Operating Voltage
5V DC

Way
Shaft Type

Control System
Digital Pulse Output

Protection Class
Class II

Cooling System
Natural Convection

Current Rating
50 mA

Components
Encoder Body, Shaft, Wiring Cable

Protection Level
IP50

Rated Current
50 mA

Rated Insulation Voltage
500V AC for 1 min

Features
Compact Size, High Resolution, Easy Mounting

Rated Operation Voltage
5V DC

Base Material
Aluminum Alloy

Connectivity Type
Cable Connection

Thickness
35 mm

Cover Material
ABS Plastic

Product Type
Rotary Incremental Encoder

Material
Plastic and Metal Components

Surface Finish
Matte

Standard
CE Certified

Surface Color
Black and Silver

Rated Voltage
5V DC

Frequency (MHz)
0-5000 Hz output signal frequency

Maximum Output Current
50 mA

Dimension (L*W*H)
38mm x 35mm

Application
Industrial Automation, Motor Feedback

IP Rating
IP50

Display Type
No Display

Shaft Diameter
6 mm

Insulation Resistance
Over 100M at 500VDC

Vibration Resistance
50 m/s (10~55 Hz)

Cable Length
2 meters

Mounting Type
Flange Mount

Storage Temperature Range
-25C to +85C

Shock Resistance
500 m/s, 3 times for each direction

Output Type
NPN Open Collector

Resolution
1000 PPR (Pulses Per Revolution)

Humidity Tolerance
35% to 85% RH (non-condensing)

Operating Temperature Range
-20C to +70C

About TYCO ENCODER T2009-E202

Experience first-rate performance with the TYCO ENCODER T2009-E202, designed for precision industrial automation and motor feedback applications. Featuring a 1000 PPR resolution, 6 mm shaft diameter, and NPN open collector output, this compact device ensures impeccable connectivity and reliability. Its robust construction combines polished aluminum alloy and ABS plastic components, meeting CE standards with a refined matte finish. With IP50 protection, vibration and shock resistance, and easy flange mounting, this encoder is engineered for severe environments. Benefit from Instant Checkout during our promotion and enjoy exclusive sale pricing from a trusted supplier and trader in India.

Optimized For Industrial and Plant Applications

TYCO ENCODER T2009-E202 is tailored for both general and specific industrial uses, providing flawless feedback in motor control and automation processes. Its matte black and silver surface ensures polished integration on machinery, while the flange mount design allows for straightforward installation. Ideal for plant operations, the encoders robust material and vibration resistance support sustained function in challenging settings, making it suitable for a wide variety of applications on metal and plastic surfaces.

Convenient Payment and Delivery Terms

Purchasing the TYCO ENCODER T2009-E202 is effortless, with streamlined payment terms and flexible list price options. Products are securely handed over at the designated FOB port, ensuring reliable delivery across Indias main domestic market. Enjoy prompt shipping and transparent settlement methods, with each sale backed by competitive promotional pricing and impeccable customer service. Your investment is met with swift order processing and consistent support throughout the delivery process.

FAQs of TYCO ENCODER T2009-E202:

Q: How is the TYCO ENCODER T2009-E202 installed on industrial machinery?

A: The encoder features a flange mount design for easy and secure installation onto various equipment surfaces. Simply attach the encoder using compatible mounting hardware to the designated flange points.

Q: What are the primary applications for this encoder model?

A: This encoder is mainly utilized in industrial automation, providing motor feedback and control signals. Its suited for general plant operations and any application requiring precise digital pulse output.

Q: When can I expect the encoder to be delivered after purchase?

A: Delivery timelines depend on the FOB port and your location within Indias domestic market. Most orders are processed promptly and handed over within standard shipping periods after payment confirmation.

Q: Where can I use the TYCO ENCODER T2009-E202 effectively?

A: You can employ this encoder on metal and plastic machinery surfaces in factories, manufacturing plants, and automated production lines with ambient conditions within the specified temperature and humidity ranges.

Q: What is the benefit of using NPN Open Collector output type?

A: The NPN open collector output provides versatility for digital connections, allowing seamless integration into control systems, and supporting reliable signal transmission in industrial environments.

Q: How does the vibration and shock resistance enhance its usage?

A: Thanks to its 50 m/s vibration and 500 m/s shock resistance ratings, the encoder maintains impeccable performance even in high-vibration or impact-prone locations, minimizing downtime and ensuring consistent operation.
