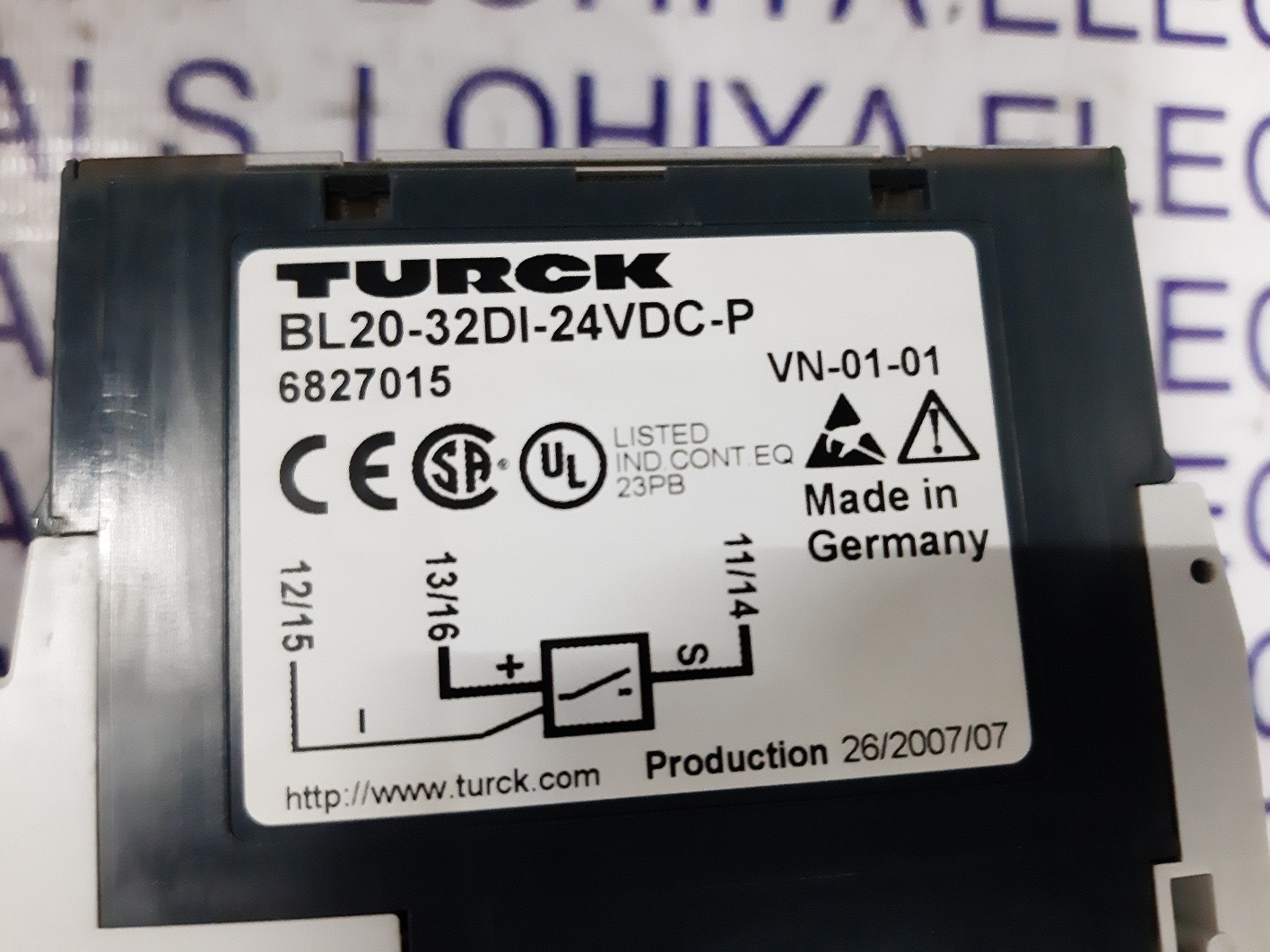

TURCK ELECTRONIC DIGITAL I/O MODULE BL20-32DI-24VDC-P

Get a Price/Quote

TURCK ELECTRONIC DIGITAL I/O MODULE BL20-32DI-24VDC-P Specification

Insulation Material
Polycarbonate

Connector Type
Screw/Push-in terminals

Efficiency
High Signal Integrity

Surface Finish
Gloss Finish

Humidity %
5% to 95% (non-condensing)

Feature
Pluggable, Fieldbus compatible

Operating Temperature
-25C to +60C

Shape
Rectangular

Overheating Protection
YES

IP Rating
IP20

Mounting Type
DIN Rail Mounting

Product Type
Electronic Digital I/O Module

Application
Industrial Automation, I/O Signal Acquisition

Protection Level
Short-circuit and overload protected

Frequency (MHz)
DC device (Not Applicable)

Rated Voltage
24 VDC

Energy Consumption
Max. 3 W

Output Type
Digital Input

Color
Gray/Yellow

Dimension (L*W*H)
74 mm x 130 mm x 35 mm

Weight
111 g

Phase
DC

Input Voltage
24 VDC

Size
Compact module

Connection Type
Removable terminals

No Of Poles
32

Material
Plastic/Metal Housing

Number of Channels
32 Digital Inputs

Hot Swap Capability
Yes

Isolation
Channel to bus: Optically isolated

Housing Material
Polyamide (PA 6.6)

Vibration Resistance
IEC 60068-2-6

Compatible Fieldbus Systems
Profibus-DP, DeviceNet, CANopen, EtherNet/IP

Signal Level
High 1530 VDC, Low 05 VDC

Status Indication
LED per Channel

Supply Voltage Range
1830 VDC

Approvals/Standards
CE, UL, cULus

Response Time
< 2 ms

Input Current per Channel
Approx. 3 mA

Module Identification
BL20-32DI-24VDC-P

Storage Temperature
-40C to +85C

Module Series
BL20

About TURCK ELECTRONIC DIGITAL I/O MODULE BL20-32DI-24VDC-P

Experience the rare utility and laureate-level performance of the TURCK Electronic Digital I/O Module BL20-32DI-24VDC-Pa superior choice for seamless industrial automation. With 32 wondrous digital input channels and high signal integrity (input: 3 mA, 15-30 VDC), this deal boasts hot-swap capability and LED status indication for every channel. Compatible with Profibus-DP, DeviceNet, CANopen, and EtherNet/IP, its compact, pluggable polyamide housing delivers unmatched reliability and meets CE, UL, and cULus standards. Utilise this offer for efficient, robust I/O signal acquisition in demanding applications.

Versatile Application Advantage

TURCKs BL20-32DI-24VDC-P stands out in industrial automation with its rare versatility and compact structure, suitable for DIN rail mounting. The modules superior signal acquisition capabilities extend to a range of environments, offering short-circuit and overload protection. Its IP20-rated design and high vibration resistance make it ideal not only for demanding surface applications but also for smart industry solutions and control panels, ensuring advanced efficiency and operational consistency for automated systems everywhere.

Domestic Supply and Shipping Assurances

Serving the main domestic markets with secure shipping and on-time supply, TURCKs BL20-32DI-24VDC-P is readily available via reliable FOB ports. Buyers can enquire about sample policies to ensure the modules suitability before bulk arrival. The company guarantees well-packaged, protected delivery and streamlined logistics, allowing customers to take advantage of fast supply and safe arrival, ensuring your automation projects maintain momentum without delay.

FAQs of TURCK ELECTRONIC DIGITAL I/O MODULE BL20-32DI-24VDC-P:

Q: How many digital input channels does the BL20-32DI-24VDC-P module support?

A: The BL20-32DI-24VDC-P module supports a total of 32 digital input channels, offering extensive I/O capabilities for complex industrial automation systems.

Q: What is the process for mounting the BL20-32DI-24VDC-P module?

A: The module is designed for easy DIN rail mounting, utilizing a compact, rectangular housing with removable screw or push-in terminals for quick installation and maintenance.

Q: What are the advanced protection features included in the module?

A: This module is equipped with short-circuit and overload protection, along with optical isolation between channels and the bus, enhancing safety and reliability in industrial environments.

Q: Where can the BL20-32DI-24VDC-P be effectively utilized?

A: It excels in industrial automation, control panels, and advanced I/O signal acquisition tasks where robust, secure, and reliable digital inputs are vital.

Q: What are the benefits of the BL20-32DI-24VDC-P regarding efficiency and maintenance?

A: With hot-swap capability, high signal integrity, and LED status indication per channel, the module minimizes downtime and ensures fast, efficient maintenance and diagnostics.
