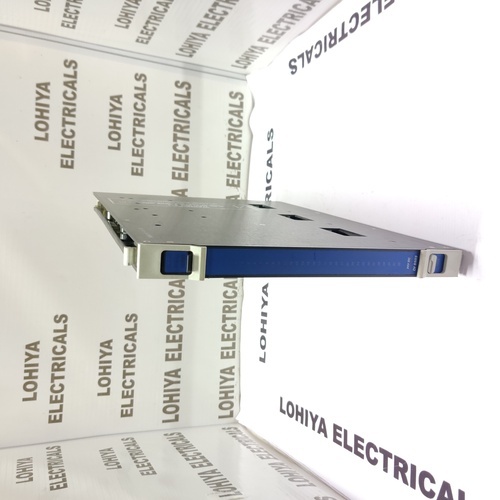

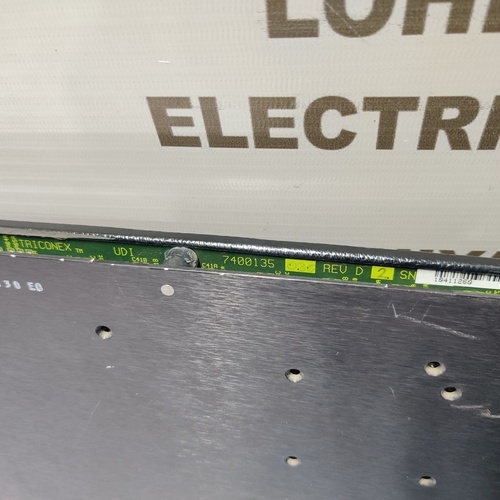

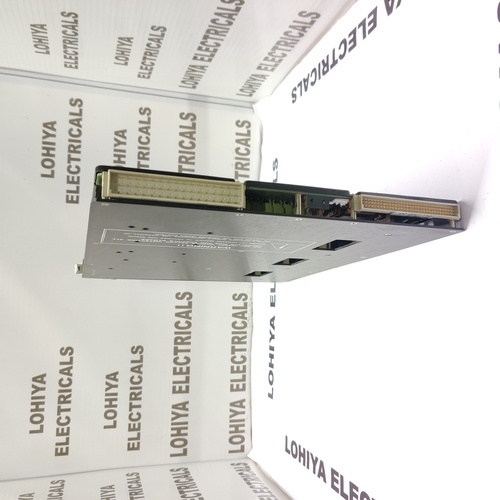

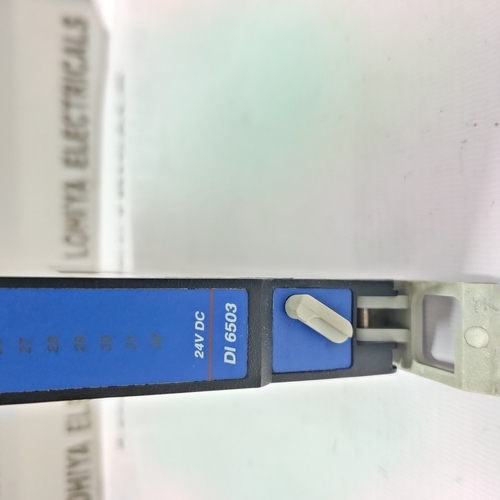

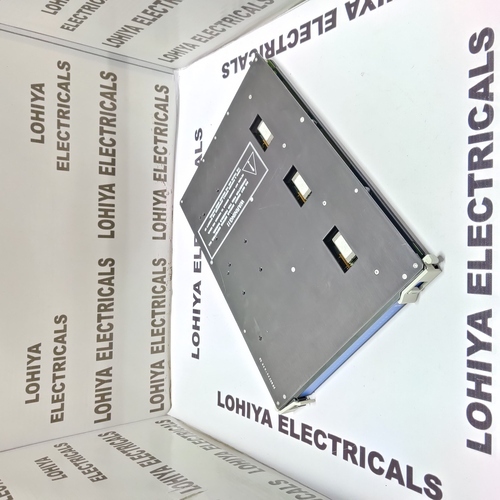

TRICONEX DI 6503 (7400135) MODULE

Get a Price/Quote

MOQ : 1 Piece

TRICONEX DI 6503 (7400135) MODULE Specification

Rated Insulation Voltage
500V AC/1 min

Operating Voltage
24V DC

Cabinet Material
Mounts into Metal Rack

Way
16 Channel

Control System
Triconex Safety PLC

Rated Current
2A max per input

Protection Level
Conformal Coated, EMI Immunity

Protection Class
Class I

Components
Opto-Isolators, Signal Conditioning Circuits

Base Material
Glass Epoxy FR4

Features
Hot-swap capability, Diagnostics, High Reliability

Connectivity Type
Edge Connector/Terminal Block

Current Rating
2A per channel

Cover Material
Plastic (ABS)

Thickness
Approx. 2 cm

Cooling System
Passive Air Ventilation

Rated Operation Voltage
24V DC

Panel Type
Module Based

Product Type
Digital Input Module

Material
Industrial Grade PCB, Electronic Components

Surface Finish
Matte Coated

Standard
TRICONEX Certified, IEC Standard

Surface Color
Black/Grey

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2A per channel

Dimension (L*W*H)
320mm x 30mm x 125mm

Application
PLC and Safety System Integration

IP Rating
IP20

Display Type
Status LED Indicators

Relative Humidity
5%95% Non-condensing

Isolation Voltage
1500V RMS

Response Time
< 5ms

Approval
CE, ATEX, CSA, SIL3

Hot Swappable
Yes

Power Consumption
< 3.5W

Compatibility
Triconex Safety Systems 3000 Series

Signal Type
Digital Input

Module Number
6503 (7400135)

Mounting Type
DIN Rail or Rack Mount

Operating Temperature Range
0C to +60C

Input Voltage Range
18V DC to 32V DC

Storage Temperature Range
-40C to +85C

TRICONEX DI 6503 (7400135) MODULE About

Reserve the new release TRICONEX DI 6503 (7400135) MODULEan exceptional masterpiece designed for formidable industrial control and safety demands. Shop Now and experience a polished blend of high-reliability performance, robust isolation voltage of 1500V RMS, and comprehensive approvals (CE, ATEX, CSA, SIL3). Featuring hot-swappable functionality and industrial-grade materials, this module ensures smooth PLC and safety system integration. With rapid response time (<5ms), matte-coated surface, and advanced diagnostics, the DI 6503 is sculpted for seamless operation and supreme operational safety within Triconex Safety Systems 3000 Series.

Competitive Advantages & Application Areas

The TRICONEX DI 6503 (7400135) MODULE stands out for its hot-swappable capability, advanced diagnostics, and formidable EMI immunity. Its conformal coating and robust design make it ideal for PLC and safety system integration in power plants, oil & gas, process industries, and more. With versatile mounting options and edge connectivity, it serves well in rigorous environments, reliably supporting industrial automation, monitoring, and critical control applications.

Payment Terms & Export Market

The TRICONEX DI 6503 (7400135) MODULE is handed over upon a confirmed purchase order, ensuring secure exchange and smooth transaction. Payment may be settled through standard business channels upon order confirmation. FOB Port services facilitate efficient international shipping to key export markets including Asia, Europe, and the Middle East. This allows customers to acquire reliable, certified modules for seamless integration into their safety and automation systems.

FAQs of TRICONEX DI 6503 (7400135) MODULE:

Q: How does the hot-swappable capability benefit users of the TRICONEX DI 6503 module?

A: The hot-swappable feature allows users to replace or upgrade the module without shutting down the system, minimizing downtime and supporting continuous operation in critical safety environments.

Q: What is the primary application area of the DI 6503 (7400135) MODULE?

A: This module is primarily used for PLC and safety system integration in industrial settings such as power plants, oil & gas facilities, and process industries, providing reliable digital input processing.

Q: When is the DI 6503 module handed over during the purchasing process?

A: The module is handed over to buyers after the purchase order is confirmed and the exchange process is complete, ensuring secure and transparent transactions.

Q: Where can the TRICONEX DI 6503 module be installed?

A: It can be mounted either on a DIN rail or rack within metal cabinets, giving users flexibility for installation in various control system environments.

Q: What process ensures the DI 6503 module maintains high reliability?

A: The modules industrial-grade PCB, opto-isolators, and conformal coating, combined with advanced diagnostics and strong EMI immunity, help maintain high operational reliability.

Q: How does the module support usage in harsh environments?

A: Constructed with industrial-grade materials and conformal-coated for protection, the module operates reliably in environments with wide temperature and humidity ranges, ensuring durability and performance.
