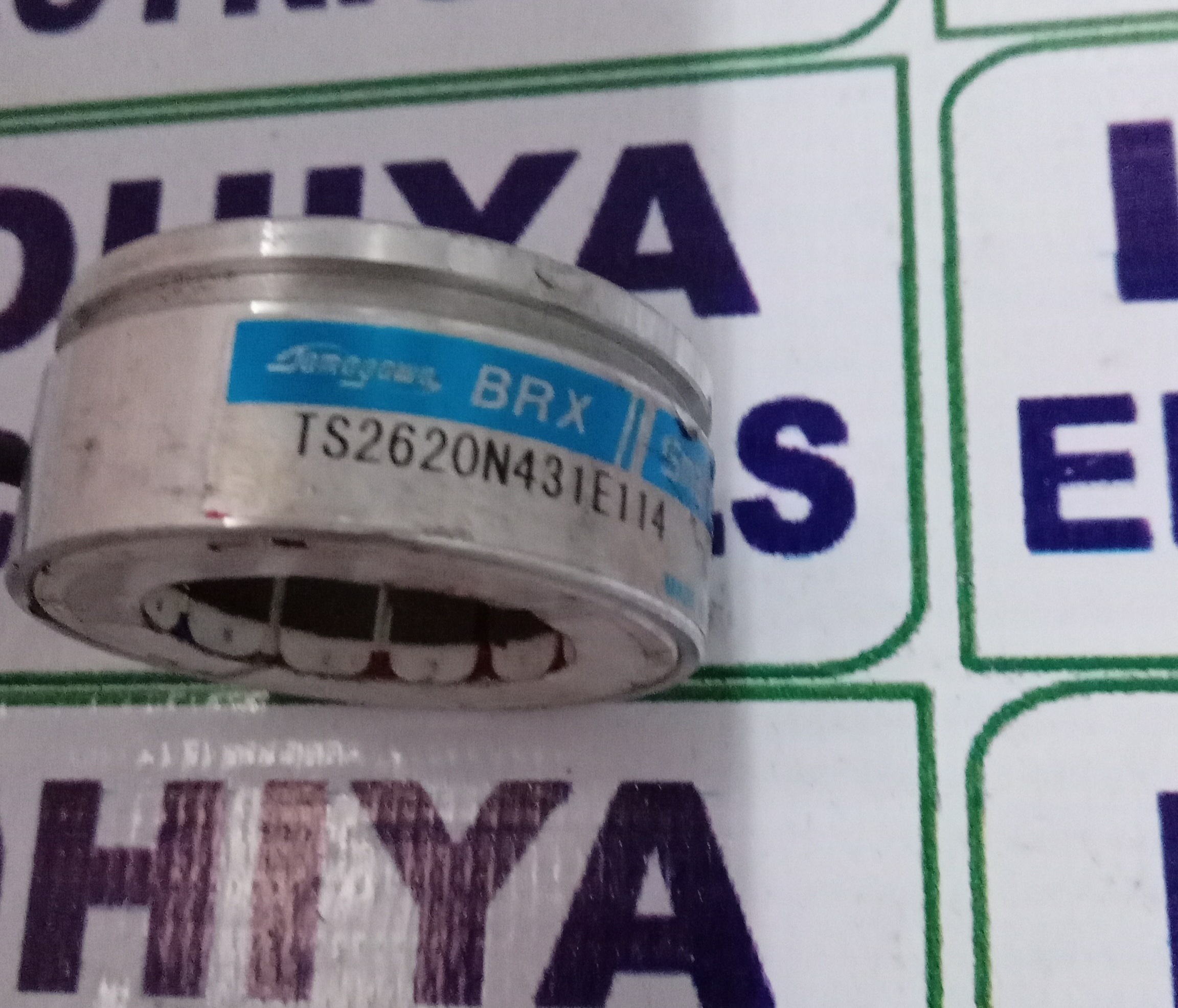

TAMAGAWA Encoder TS2620N431E114

Get a Price/Quote

TAMAGAWA Encoder TS2620N431E114 Specification

Connector Type
8-pin Connector

IP Rating
IP65

Operating Temperature
-10C to +70C

Insulation Material
PVC

Mounting Type
Flange Mount

Surface Finish
Anodized

Shape
Round

Power Factor
0.98

Efficiency
99%

Humidity %
85% RH Max

Feature
Compact Design, High Resolution, High Reliability

Overheating Protection
YES

Product Type
Rotary Encoder

Application
Industrial Automation, Robotics, Motor Feedback

Protection Level
IP65

Frequency (MHz)
2.5 MHz

Rated Voltage
5 VDC

Energy Consumption
Max. 120 mA

Output Type
Incremental

Color
Silver / Black

Dimension (L*W*H)
60 mm x 38 mm

Weight
Approx. 320 g

Input Voltage
5 V

Size
Diameter 38 mm

Phase
Single

Material
Aluminium Alloy

Connection Type
Shielded Cable

No Of Poles
4

About TAMAGAWA Encoder TS2620N431E114

Discover the Latest TAMAGAWA Encoder TS2620N431E114, engineered to deliver radiant performance and commanding accuracy for advanced industrial automation and robotics. Featuring a soaring 2500 PPR resolution, robust shock and vibration resistance, and an IP65 reduced price protection level, this encoder embodies reliability in challenging environments. Reserve this compact design today, equipped with a solid 8 mm shaft, 1.5 m shielded cable, and efficient A, B, Z channel output. Suited for motor feedback and precision tasks, its anodized aluminium alloy body ensures lasting durability.

Usage Directions & Key Features

The TAMAGAWA Encoder TS2620N431E114 is designed for easy flange mounting and protected operation in industrial environments. Its single-phase, incremental output ensures direct compatibility with motor feedback systems, robotics, and automation equipment. The compact, round shape and anodized surface finish promote efficient handling, while the shielded cable supports reliable signal transmission. Users can position the encoder securely using the flange and connect via its 8-pin connector for commanding performance.

Certifications, Export Markets & Payment Terms

The TAMAGAWA Encoder TS2620N431E114 meets strict industrial certifications for dependable usage and safety compliance. Main export markets include India and global destinations specializing in automation and robotics. Our streamlined order processing ensures quick dispatching of your encoder upon confirmation of proposal amount and secure payment terms. Clients benefit from transparent transactions, enabling efficient and swift acquisition for their industrial needs.

FAQs of TAMAGAWA Encoder TS2620N431E114:

Q: How can I reserve the TAMAGAWA Encoder TS2620N431E114 at a reduced price?

A: Contact our supplier or trader in India to place a reservation. Reduced pricing options can be discussed during the proposal amount stage before order confirmation.

Q: What benefits does the IP65 protection level offer for industrial usage?

A: IP65 rating ensures the encoder is safeguarded against dust ingress and water jets, guaranteeing reliable operation in harsh industrial settings and minimizing downtime.

Q: Where is the recommended mounting location for optimal encoder performance?

A: Install the encoder using its flange mount on stable machinery in industrial automation or robotics applications to ensure precise feedback and secure positioning.

Q: How is the order processing and dispatching handled by suppliers?

A: Order processing starts after confirmation of the proposal amount; upon completion of payment terms, the encoder is swiftly dispatched to the designated address.

Q: What is the process for connecting and using the output channels?

A: Utilize the 8-pin connector and shielded cable to link the encoders A, B, Z output channels to your motor feedback or automation system, enabling accurate incremental data acquisition.
