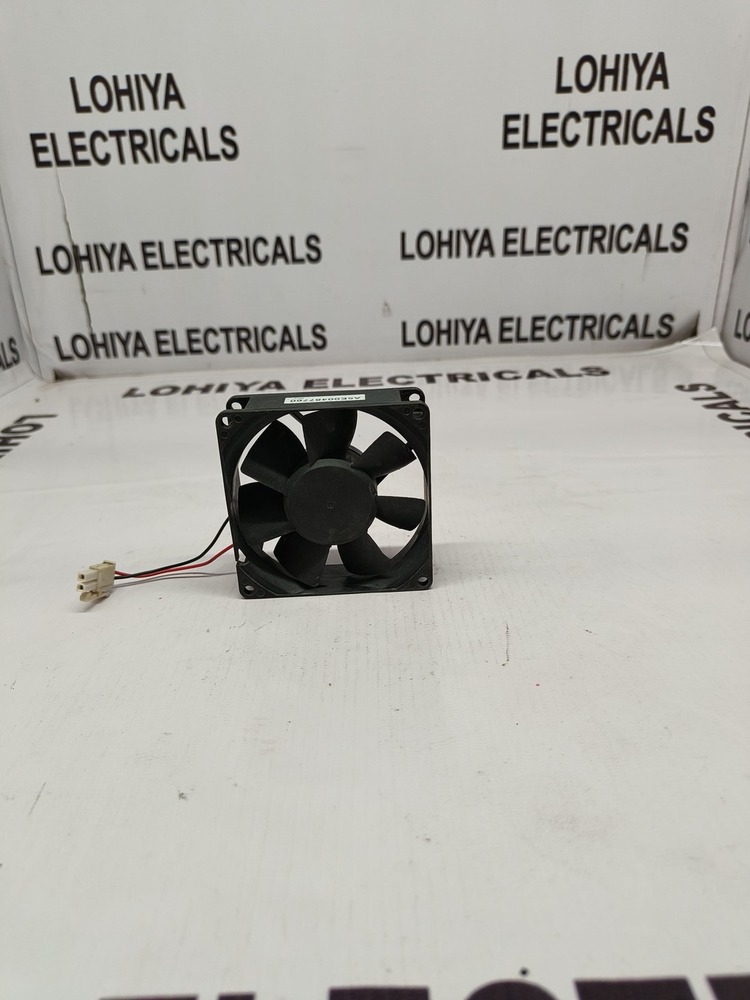

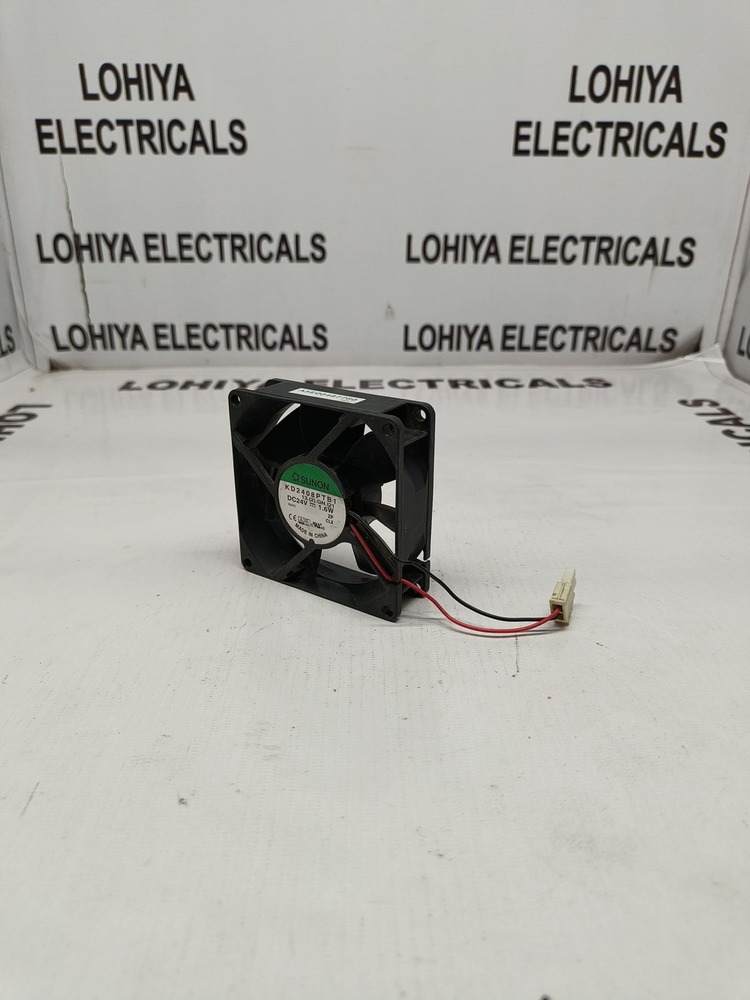

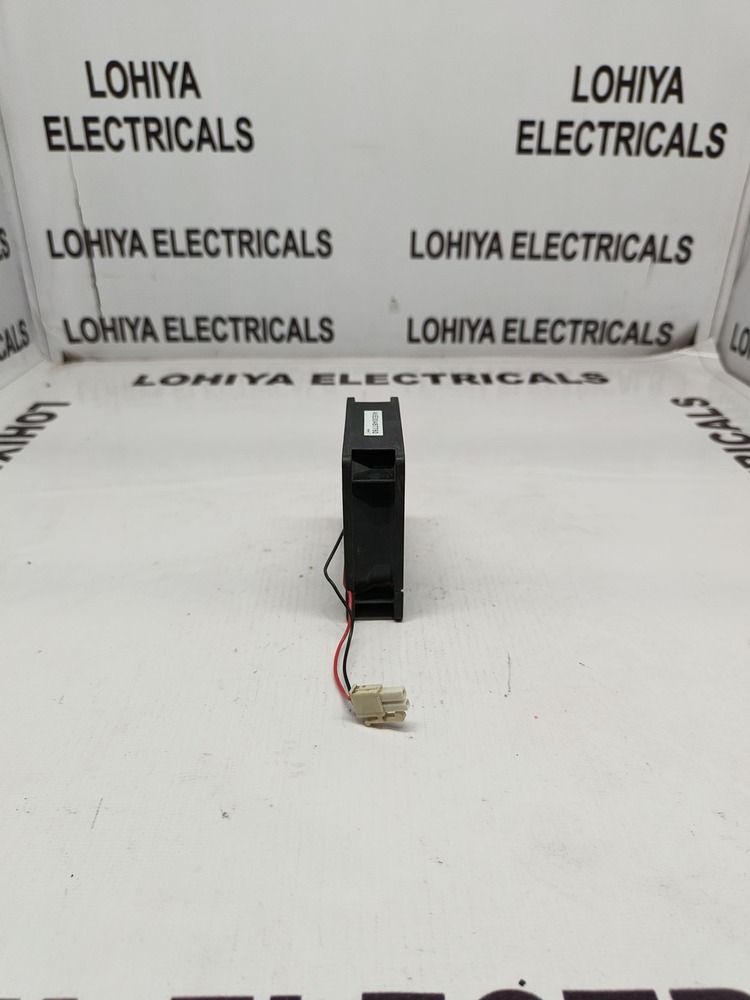

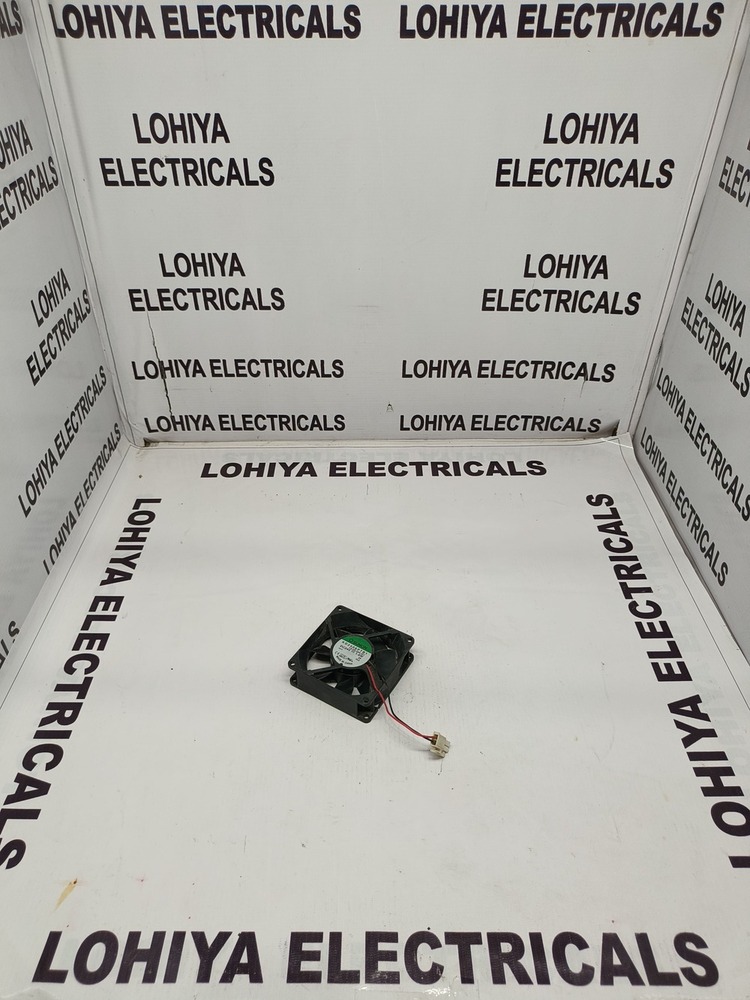

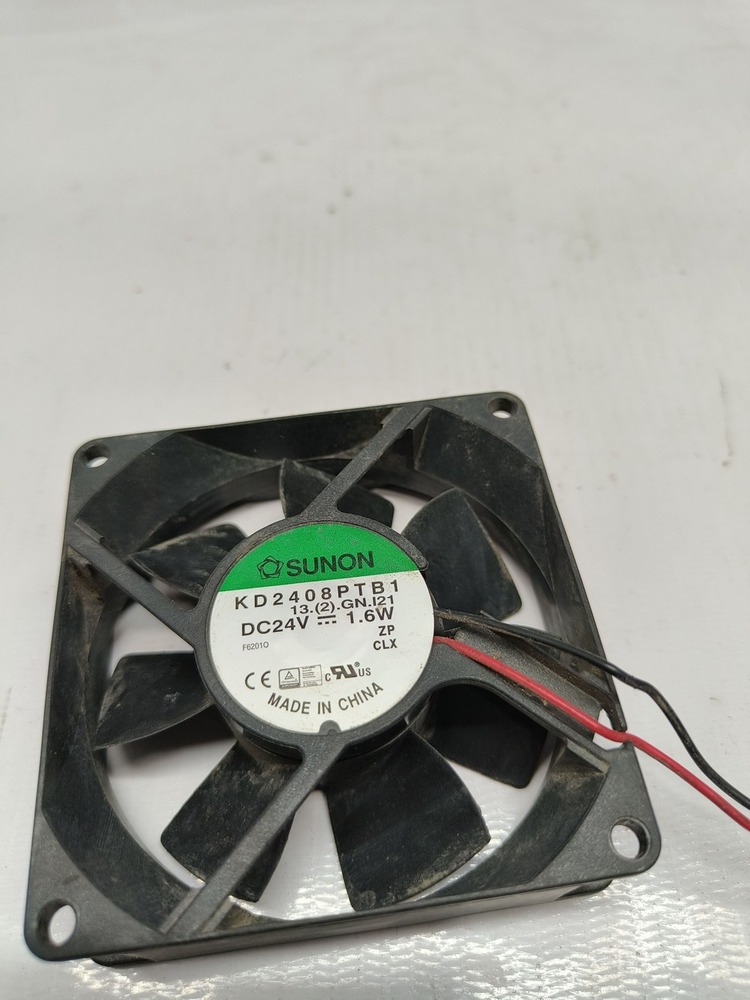

SUNON KD2408PTB1 FAN

Get a Price/Quote

MOQ : 1 Piece

SUNON KD2408PTB1 FAN Specification

Humidity %
35% to 85% RH

Connector Type
Leads

IP Rating
IP20

Efficiency
High

Mounting Type
Panel Mount

Power Factor
0.92

Overheating Protection
YES

Shape
Square

Surface Finish
Matte

Insulation Material
Class B

Operating Temperature
-10C to +70C

Feature
Low noise, high airflow, ball bearing

Product Type
Axial Cooling Fan

Application
Electronics cooling, machinery ventilation, computer servers

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
24V DC

Energy Consumption
2.2 W

Output Type
Air Flow

Color
Black

Dimension (L*W*H)
80 mm x 80 mm x 25 mm

Weight
120 g

Input Voltage
24V DC

Phase
Single Phase

Size
80 mm

Material
PBT (Polybutylene Terephthalate)

Connection Type
2-wire

No Of Poles
4

Frame Material
Plastic (PBT)

Impeller Material
Plastic (PBT)

Storage Temperature
-40C to +75C

Life Expectancy
50,000 hours at 25C

Current
0.092 A

Noise Level
33 dBA

Static Pressure
4.1 mm H2O

Fan Speed
3000 RPM

Model Number
KD2408PTB1

Airflow
32.2 CFM

Bearing Type
Ball Bearing

About SUNON KD2408PTB1 FAN

Experience the ace of electronic cooling solutions with the SUNON KD2408PTB1 FAN. Secure this special rate offeryour last chance to own an optimum, polished fan designed for reliable performance. Delivering efficient airflow of 32.2 CFM at 3000 RPM, this fan operates with low noise (33 dBA) and high efficiency, thanks to its durable ball bearing structure and 50,000-hour life expectancy. Crafted from robust PBT plastic with a matte finish, this lightweight (120g), IP20-rated fan is perfect for machinery and computer server ventilation. Dont miss this ultimate opportunity for polished operational excellence.

Superior Performance for Electronics & Machinery

The SUNON KD2408PTB1 FAN excels in electronics cooling, machinery ventilation, and computer server applications. Its robust static pressure and high airflow ensure swift heat dissipation in critical environments, delivering reliability for continuous operation. Competitive advantages include a noise level as low as 33 dBA and exceptional ball bearing efficiency, backed by an impressive 50,000-hour lifespan. Engineered for optimum functional endurance, it is the polished choice for manufacturers and traders prioritizing ace cooling solutions in demanding settings.

FOB Port and Export Logistics Details

SUNON KD2408PTB1 FAN is dispatched from leading Indian FOB ports, tailored for efficient export market demands. Upon confirmed Purchase Order, samples are available under our flexible sample policy, providing smooth pre-purchase evaluation with minimal expenditure. Delivery time is optimized for industry standards, ensuring prompt dispatch and reliable lead times. From quotation to door delivery, each process is streamlined for buyer convenience, offering both cost-effectiveness and timely fulfillment to global clients.

FAQs of SUNON KD2408PTB1 FAN:

Q: How do I install the SUNON KD2408PTB1 FAN in my equipment?

A: The fan is designed for simple panel mount installation using its square frame, accommodating standard mounting hardware. Just connect the 2-wire leads to your 24V DC power source and securely fasten the fan for optimum airflow direction.

Q: What are the ideal usage scenarios for this fan model?

A: This fan is highly recommended for electronics cooling, machinery ventilation, and computer server cabinets, providing effective temperature regulation and enhanced device longevity.

Q: When can I expect delivery after placing a purchase order?

A: Once your purchase order is confirmed, prompt dispatch from our Indian FOB port ensures delivery within the stipulated timeline, following standard export procedures and logistics practices.

Q: Where can the SUNON KD2408PTB1 FAN be sourced in India?

A: You can purchase this fan directly from authorized suppliers and traders specializing in industrial cooling solutions nationwide, ensuring authentic, high-quality products.

Q: What are the benefits of the SUNON KD2408PTB1 FANs ball bearing design?

A: The ball bearing mechanism ensures a long operational life of up to 50,000 hours, reduced maintenance, and stable performance across a wide range of temperatures and humidity conditions.

Q: How does this fan ensure protection against overheating?

A: The fan includes integrated overheating protection, providing an extra layer of safety by automatically guarding against excessive temperature buildup during continuous operation.
