SIEMENS SINAMICS G120 A5E00928894 PC BOARD

Send Inquiry

Request To Call Back

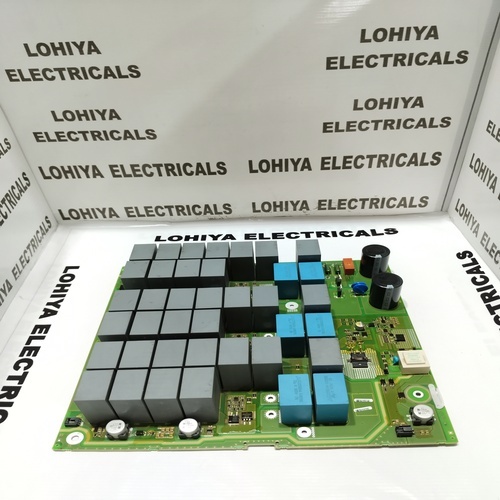

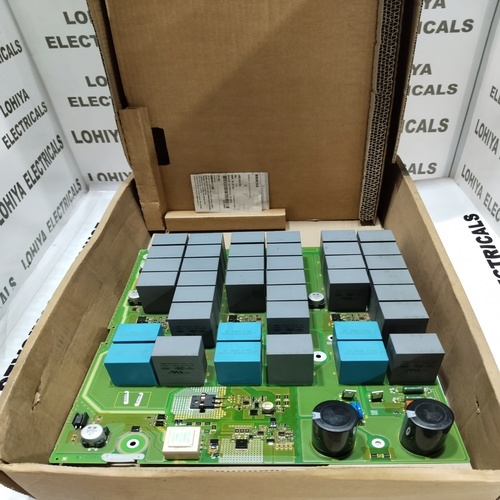

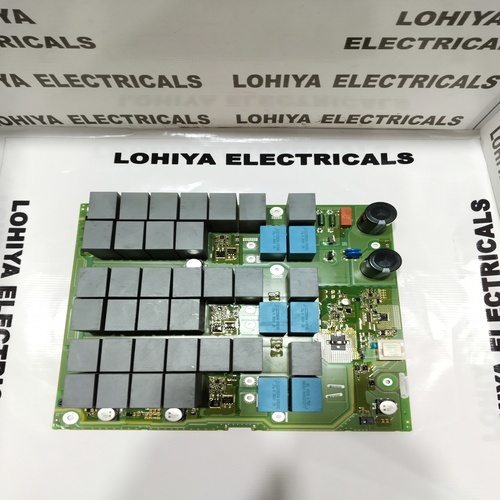

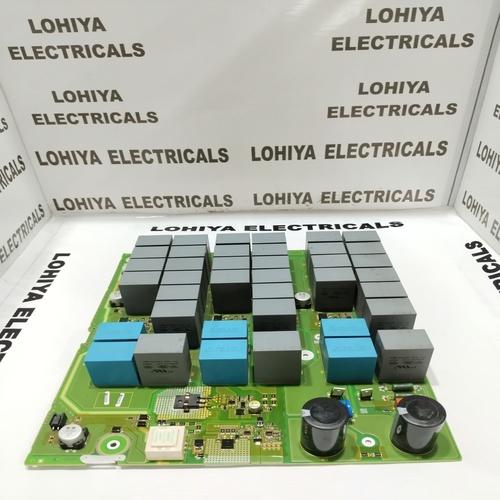

SIEMENS SINAMICS G120 A5E00928894 PC BOARD

Name: SIEMENS SINAMICS G120 A5E00928894 PC BOARD
Brand: LOHIYA ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

SIEMENS SINAMICS G120 A5E00928894 PC BOARD Specification

Protection Class
Class I

Rated Operation Voltage
24V DC

Rated Current
2A

Cooling System
Convection (no fan)

Rated Insulation Voltage
500V

Base Material
FR4 Epoxy Fiberglass

Thickness
1.6 mm

Control System
Digital electronic

Protection Level
Basic coated PCB

Operating Voltage
24V DC

Features
High reliability, optimized for G120 drives, compact design

Connectivity Type
Plug-in terminal

Cabinet Material
Not included

Current Rating
2A

Components
Microcontrollers, capacitors, resistors, connectors

Cover Material
None (Open PCB)

Product Type
PC Board Module

Material
High-grade PCB (Printed Circuit Board)

Surface Finish
Protective coated

Standard
SIEMENS Industrial Standard

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50-60 Hz

Maximum Output Current
2A

Dimension (L*W*H)
Approx. 180mm x 80mm x 18mm

Application
SINAMICS G120 Drive system-Control Electronics

IP Rating
IP00 (for internal use only)

Compatible Series
SINAMICS G120

Mounting Type
Screw and plug-in

Part Number
A5E00928894

Storage Temperature Range
-40C to +70C

PCB Type
Multilayer

Function
Controller/Interface PCB for Frequency Converter

Operating Temperature Range
0C to +60C

Weight
Approx. 110 grams

SIEMENS SINAMICS G120 A5E00928894 PC BOARD Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About SIEMENS SINAMICS G120 A5E00928894 PC BOARD

SIEMENS SINAMICS G120 A5E00928894 PC BOARD Supplier In Bhavnagar, Gujarat, India.

Lohiya Electricals Dealing in all types of Industrial Automation Product and We are dealing in all India.

Model No: A5E00928894

Product Name: SIEMENS SINAMICS G120 A5E00928894 PC BOARD

Brand: SIEMENS

Condition: NEW-OPEN BOX

Warranty: N/A

SIEMENS SINAMICS G120 A5E00928894 PC BOARD available in Stock.

For Further Information:

Lohiya Electricals

Call: +91 - 9427215462

Mail: lohiyaelectricals@gmail.com

Purpose-Built for SINAMICS G120

This PC board serves as a controller and interface solution for the SINAMICS G120 drive system, ensuring seamless integration and optimized performance. Its digital electronic control system manages various drive functions, contributing to efficient and stable frequency conversion for diverse industrial applications.

Durable and Reliable Construction

Manufactured with a multilayer, high-grade FR4 epoxy fiberglass and a protective coated surface, the A5E00928894 PCB guarantees durability under demanding conditions. It operates safely within a wide temperature range and meets SIEMENS industrial standards, making it a trusted choice for internal control electronics.

Easy Installation and Application

With screw and plug-in terminal connectivity, the board is straightforward to install within SINAMICS G120 drive enclosures. Its compact form factor and convection cooling design (no fan required) make it ideal for internal mounting, where space and reliability are critical considerations.

FAQ's of SIEMENS SINAMICS G120 A5E00928894 PC BOARD:

Q: How do I install the SIEMENS SINAMICS G120 A5E00928894 PC Board?

A: This PCB features screw and plug-in mounting, allowing for secure placement within the SINAMICS G120 drive system. Ensure the drive is powered off, connect the plug-in terminals, and securely fasten the board using the provided screw holes.

Q: What are the recommended operating and storage temperatures for this PC board?

A: The board operates safely between 0C to +60C and can be stored in conditions ranging from -40C to +70C, which supports flexibility in a variety of industrial environments.

Q: When should I use this specific PCB in my application?

A: Use this PCB as a replacement or upgrade for control electronics within the SINAMICS G120 drive system when a reliable interface and controller are needed, especially for applications requiring high reliability and precise digital control.

Q: Where is this PC board typically installed?

A: Designed for internal use (protection class IP00), the board is installed inside control panels or enclosures housing the SINAMICS G120 drive, providing essential control functions for the frequency converter.

Q: What benefits does the A5E00928894 PCB offer compared to generic alternatives?

A: This board is engineered to meet SIEMENS industrial standards and is optimized specifically for SINAMICS G120 drives, offering enhanced compatibility, reliability, and compactness over non-specific PCBs.

Q: How does the board ensure safe operation within drive systems?

A: It includes a protective coated surface, a rated insulation voltage of 500V, and a Class I protection level, ensuring robust electrical insulation and safe operation within standard industrial environments.

Q: What is the process to replace the existing PCB with this one?

A: First, power down and isolate the drive system. Remove existing connections and mounting screws, swap in the new board adhering to matching terminal points, secure it, verify connections, and then restore power for system testing.
