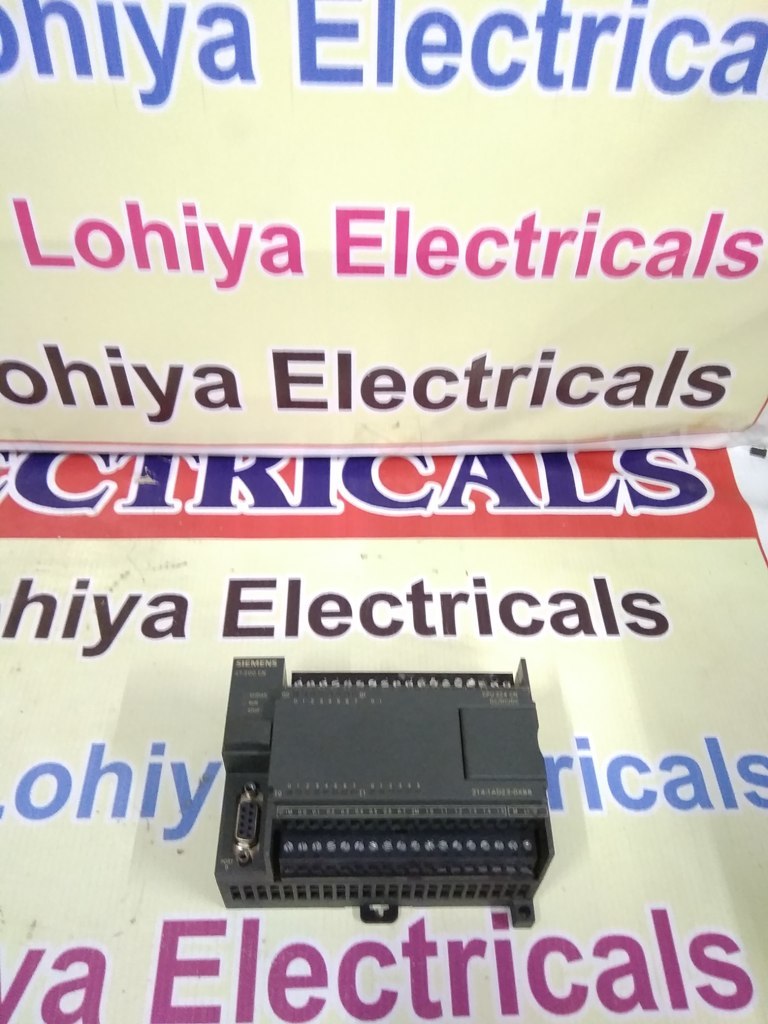

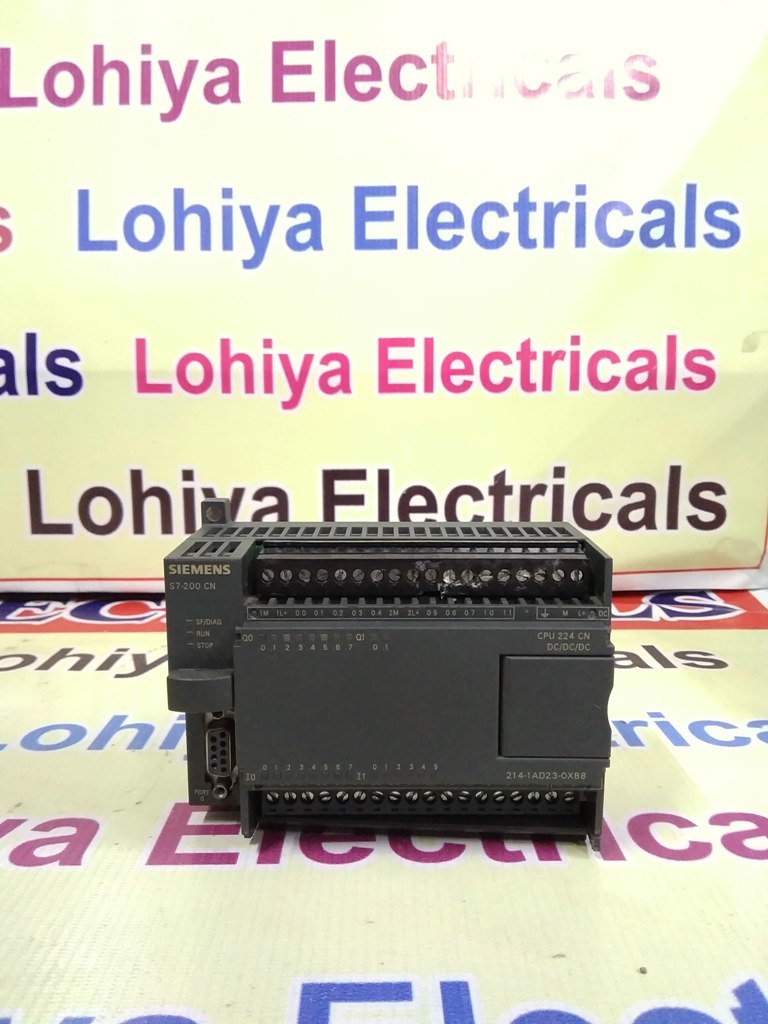

SIEMENS SIMATIC S7-200 CPU 224 6ES7 214-1AD23-0XB8

Send Inquiry

Request To Call Back

SIEMENS SIMATIC S7-200 CPU 224 6ES7 214-1AD23-0XB8

Get a Price/Quote

SIEMENS SIMATIC S7-200 CPU 224 6ES7 214-1AD23-0XB8 Specification

Features
Compact design, Integrated power supply, Support for digital I/O, Expandable design

Cabinet Material
Plastic

Rated Current
400 mA (at 24 V DC)

Base Material
Polycarbonate/Metal

Operating Voltage
24 V DC

Rated Operation Voltage
24 V DC

Current Rating
0.5 A (Output)

Protection Class
Class II

Protection Level
IP20

Cover Material
Polycarbonate

Panel Type
Module Mount

Way
Expandable (supports additional modules)

Control System
PLC (Programmable Logic Controller)

Rated Insulation Voltage
500 V

Cooling System
Air-cooled (Passive)

Thickness
Dimension-based; Typically Compact

Connectivity Type
RS-485 (PPI/MPI), Expansion Ports

Components
CPU, Digital Inputs/Outputs

Product Type
PLC CPU Module

Material
Plastic, Metal Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24 V DC (Power Supply)

Frequency (MHz)
50-60 Hz

Maximum Output Current
0.5 A (per output)

Dimension (L*W*H)
120 x 80 x 62 mm (approx.)

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
LED Status Indicators

Program Memory
12 Kbytes

Order Number
6ES7 214-1AD23-0XB8

Mounting Type
DIN Rail Mount

Power Consumption
Max. 5 W

Processor Speed
1.2 ms (per 1 K operations)

Data Memory
10 Kbytes

Number of Digital Inputs
14

CPU Type
CPU 224

Operating Temperature
0 to 55C

Output Type
Relay

Number of Expandable Modules
Up to 7 (maximum 248 I/O points)

Storage Temperature
-40 to +70C

Number of Digital Outputs
10 (Relay)

Communication Ports
1 x RS-485 (integrated)

Relative Humidity
5% to 95%, non-condensing

About SIEMENS SIMATIC S7-200 CPU 224 6ES7 214-1AD23-0XB8

Experience the crowning achievement in industrial automation with the SIEMENS SIMATIC S7-200 CPU 224 (Order Number: 6ES7 214-1AD23-0XB8). This pivotal PLC offers a compact yet expandable design, enlightened by 14 digital inputs and 10 relay outputs, supporting up to 7 modules for maximum flexibility. Avail reduced expenditure with our exclusive sale and discount offers, making top-tier process control more accessible. Engineered for reliability, its high-speed processor and robust connectivity set it apart for industrial automation applications, ensuring seamless performance and optimized operations.

Application & Usage Areas

The SIEMENS SIMATIC S7-200 CPU 224 is widely used for industrial automation and process control. It supports operations by manufacturers, production managers, and system integrators, proving valuable across sectors like pharmaceuticals, automotive, and packaging. With its versatile digital I/O and flexible expansion capabilities, this compact PLC module excels in environments requiring precise, reliable, and scalable automation solutions.

Supply Ability, Delivery Time & Sample Policy

Handover of the SIEMENS SIMATIC S7-200 CPU 224 is executed promptly, with typical delivery timeframes aligning with domestic market demands. Our supply ability ensures readiness to meet bulk requirements while keeping customer expenditure minimized. Sample policies are designed to provide clarity, allowing prospective clients to evaluate quality and compatibility before full-scale investment, thereby streamlining purchasing and deployment decisions.

FAQs of SIEMENS SIMATIC S7-200 CPU 224 6ES7 214-1AD23-0XB8:

Q: How does the SIEMENS SIMATIC S7-200 CPU 224 enhance industrial automation processes?

A: By combining a high-speed processor with expandable I/O capability and integrated RS-485 communication, it supports fast, reliable control and streamlined process integration, allowing for efficient automation in various industries.

Q: What is the recommended way to mount the S7-200 CPU 224 unit?

A: The device is designed for simple and secure DIN rail mounting, making installation straightforward and ensuring stability in industrial environments.

Q: When can customers expect the handover after placing an order?

A: Delivery times are optimized for the domestic market, typically ensuring prompt handover and rapid fulfillment in accordance with supply availability and order volume.

Q: Where is this PLC most commonly used?

A: It finds primary usage in industrial automation settings, including manufacturing plants, packaging lines, and process control environments requiring scalable digital I/O and reliable operation.

Q: What benefit does the expansion capability provide to the user?

A: Expansion up to 7 modules, reaching 248 I/O points, grants flexibility to tailor automation systems to specific operational needs, supporting both current processes and future growth.
