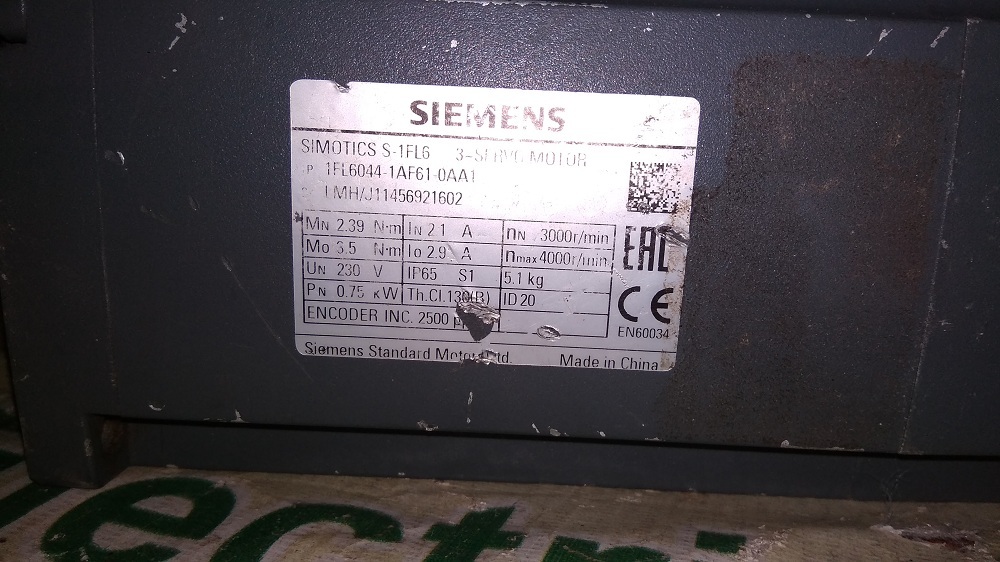

SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1

Get a Price/Quote

SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1 Specification

Rated Insulation Voltage
500 V

Components
Encoder, Rotating Shaft, Power Terminals

Cooling System
Self-Cooling

Connectivity Type
Terminal Block, Connector

Cover Material
Metal

Protection Level
IP65

Operating Voltage
400 V AC

Control System
Position/Speed Control via Servo Drive

Protection Class
Class F

Features
Compact design, High precision, Maintenance-free bearings, Overload protection

Way
Three-Phase

Rated Operation Voltage
400 V

Rated Current
2.1 A

Base Material
Aluminum Alloy

Current Rating
2.1 A

Thickness
Standard Siemens Motor Dimension

Product Type
Servo Motor

Material
Aluminum Alloy Housing

Surface Finish
Smooth Anodized

Standard
IEC / SIEMENS Standard

Surface Color
Black and Silver

Rated Voltage
400 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
3.5 A

Dimension (L*W*H)
90 mm x 90 mm x 140 mm (approx.)

Application
Industrial Automation, CNC Machines, Robotics

IP Rating
IP65

Vibration Resistance
Yes

Mounting
Flange Mounted

Ambient Temperature
0C to +40C

Rated Power
0.4 kW

Model Number
1FL6 044-1AF61-0AA1

Insulation Class
F

Shaft Diameter
11 mm

Weight
Approx. 2.6 kg

Noise Level
Less than 60 dB

Rated Speed
3000 rpm

Encoder Type
Incremental Encoder

Service Life
20,000 hours

Torque Rating
1.27 Nm

About SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1

Experience the peerless performance of the SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1, a renowned new release now available at a compelling price cut. Featured for its enlightened engineering, this servo motor boasts a 0.4 kW rated power and a robust 3000 rpm speed. Its compact, flange-mounted design ensures effortless installation in industrial automation, CNC, and robotics. Meticulously constructed with a black and silver aluminum alloy housing, this IEC-standard solution delivers high precision, overload protection, and maintenance-free operationmaking it a trusted choice for precision-driven applications.

Exceptional Features and Commercial Applications

The SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1 stands out with its compact design, high-precision incremental encoder, and maintenance-free bearings. Key features include IP65 protection, vibration resistance, and overload protection, ensuring longevity and dependable operation. Its robust performance and self-cooling design make it ideal for applications in industrial automation, CNC machines, and advanced robotics, where accuracy, reliability, and efficiency are critical. Industries looking for advanced control and flawless execution will find this motor exceptionally suited to their needs.

Certifications, Shipment, and Supply Details

Certified to IEC and SIEMENS standards, the SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1 guarantees both safety and quality. With a strong supply ability to support timely shipment and arrival, the product can be exchanged if any issue arises under supply terms. Samples are available upon request, enabling hands-on evaluation before procurement. Each shipment is meticulously packaged to ensure the product arrives in optimal condition and meets the stringent requirements of modern industry professionals.

FAQs of SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1:

Q: How does the SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1 enhance automation processes?

A: The motor offers precise position and speed control, high torque output, and robust protection, making it ideal for automation, CNC machines, and robotics applications that require reliability and accuracy.

Q: What are the key features that distinguish this servo motor from competitors?

A: This model features a maintenance-free design, overload protection, IP65 rating, incremental encoder, and vibration resistance, providing peerless performance and long service life in harsh industrial environments.

Q: When is the supply and shipment typically processed for industrial orders?

A: Orders are processed promptly, with shipment and arrival coordinated to meet industrial project timelines. Supply capability ensures timely fulfillment even for bulk orders.

Q: Where can the SIEMENS SERVO MOTOR 1FL6 044-1AF61-0AA1 be commonly used?

A: It is widely used in sectors such as industrial automation, CNC machinery, and robotics, where high precision, durability, and safety are critical performance requirements.

Q: What is the process for requesting a sample of this servo motor?

A: To request a sample, customers can contact the supplier directly. The sample will be shipped for evaluation, allowing verification of quality and compatibility before placing a larger order.

Q: What benefits does the IEC/SIEMENS standard certification provide to users?

A: Certification ensures compliance with international safety and performance benchmarks, offering users confidence in the products reliability, compatibility, and operational safety.
