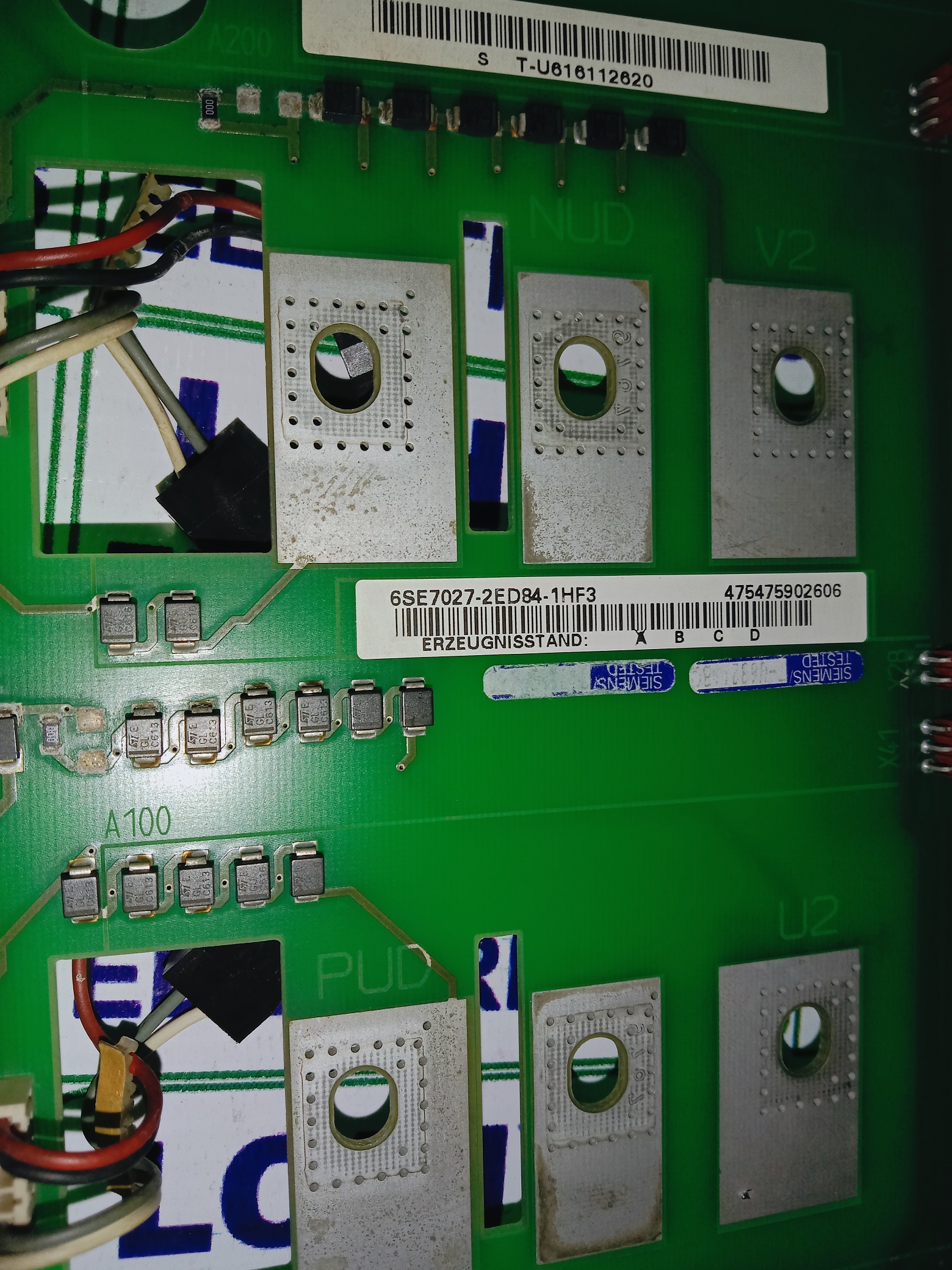

SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3

Get a Price/Quote

SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 Specification

Noise Level
Low (Electronic PCB, depends on enclosure)

Power Supply
24V DC control, main supply via inverter unit

Current Range
Application dependent, typically mA range for logic circuits

Operating Temperature
0C to +55C

Features
Integrated diagnostics, modular design, plug-in connections

Output Type
Signal and control outputs for inverter operation

Application
Industrial automation, drive control, machinery systems

Output Current
Defined by application and connected load

Rated Power
As per inverter specifications

Power Factor
>0.95 (inverter system dependent)

Phase
Three phase, supports inverter motor connections

Connector Type
Multipin terminal blocks, edge connectors

Cooling Method
By forced air (via inverter cooling system)

Rated Current
Application dependent

Working Temperature
0C to +55C

Product Type
Siemens Inverter PCB Board

Output Power
Varies as per drive (refer to drive specification)

Output Frequency
0 650 Hz (depends on inverter configuration)

Input Voltage
24V DC (typical logic supply), main power per inverter model

Voltage Protection
Overvoltage and undervoltage protection integrated

Efficiency
>98% at rated conditions

Material
FR4 Epoxy PCB, copper tracks, electronic components

Line Regulation
Regulated for industrial standards

Storage Temperature
-40C to +70C

Weight
Approx. 0.85 kg

Isolation
Optical Isolation

Supported Motors
Asynchronous and Synchronous AC Motors

PCB Dimensions
Approx. 230mm x 160mm x 30mm

Protection Class
IP20

Model Number
6SE7027-2ED84-1HF3

Humidity Range
<95% non-condensing

Mounting Type
Panel Mount

Display Type
None (PCB only)

Control Method
Vector Control, V/f Control

Life Expectancy
100,000 hours (MTBF)

Firmware
Compatible with Siemens Drive Firmware

SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 About

Bring your industrial automation projects into the spotlight with the SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 a laureate in precision engineering and robust performance. This special panel-mount PCB is crafted with FR4 epoxy, ensuring durability and astoundingly reliable operation in demanding environments. With versatile support for both asynchronous and synchronous AC motors, it delivers terrific efficiency (>98%) and seamless vector/V/f control. Standout features include integrated diagnostics, modular plug-in design, and superior voltage protection all contributing to remarkable, continuous operation for up to 100,000 hours (MTBF). Markdown your downtime and upgrade your drive systems effortlessly!

Versatile Usage & Application Scope

The SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 is exceptionally suitable for use within industrial automation, drive control mechanisms, and advanced machinery systems. This panel-mount PCB is used as a core control component, providing vital signal and control outputs to inverter units. Designed for varied usage types, it seamlessly integrates into both new installations and system upgrades, effectively supporting asynchronous and synchronous AC motors in automated production lines and precise machinery operations.

Efficient Packing, Dispatch & Supply Details

Packing & Dispatch procedures for the SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 are streamlined for optimal safety and promptness. Goods are dispatched from the designated FOB port, ensuring smooth international shipments. Delivery time typically ranges from immediate stock release to expedited shipping based on order volume. With a strong supply ability, SIEMENS supports both urgent requests and bulk requirements, ensuring your order is packed, shipped, and delivered on schedule for seamless workflow integration.

FAQs of SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3:

Q: How is the SIEMENS INVERTER PCB 6SE7027-2ED84-1HF3 typically used in industrial automation?

A: This PCB is commonly used as the main control element within drive systems and industrial machinery, managing inverter operations for both asynchronous and synchronous AC motors.

Q: What are the benefits of the integrated diagnostics feature?

A: Integrated diagnostics provide real-time monitoring and troubleshooting, ensuring quick fault detection and minimal downtime for more efficient maintenance and operation.

Q: When should this PCB be replaced in a system?

A: You should consider replacement when there is a significant decline in performance, visible wear, or after it reaches its rated life expectancy of approximately 100,000 hours (MTBF).

Q: Where does the PCB get its power supply from?

A: The logic supply is typically powered by a 24V DC input, while the main operational power is drawn from the inverter unit it controls.

Q: What type of motors are supported by this inverter PCB?

A: It supports both asynchronous and synchronous AC motors, allowing flexible application across diverse automation scenarios.

Q: How is the PCB protected from voltage fluctuations?

A: The board offers integrated overvoltage and undervoltage protection to maintain stable operation and safeguard connected components from power anomalies.
