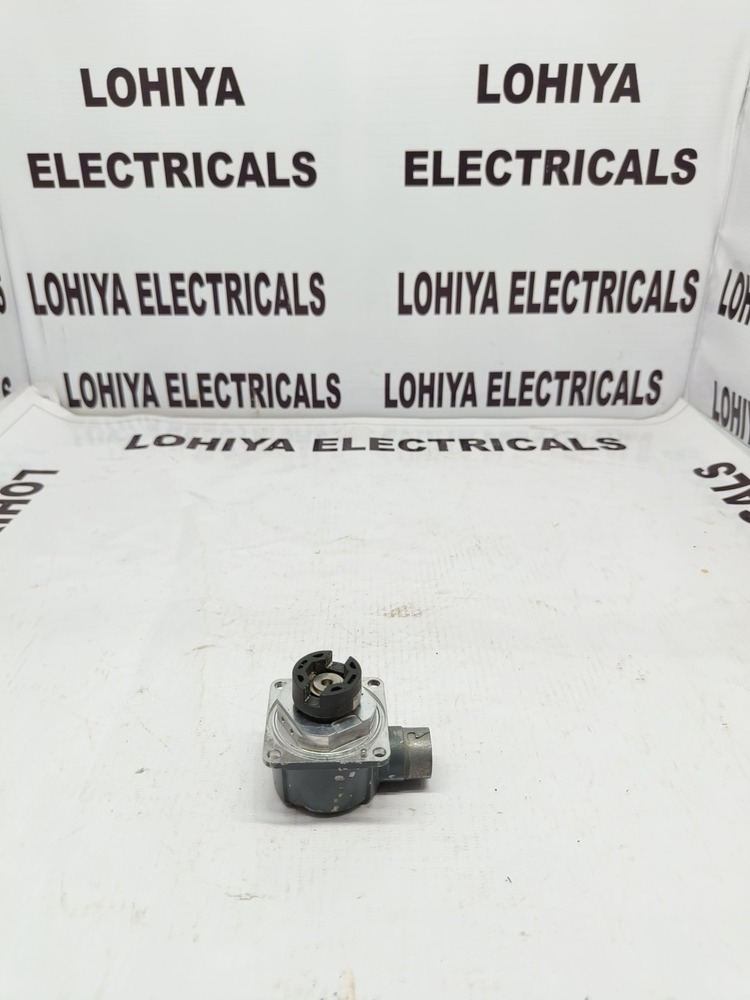

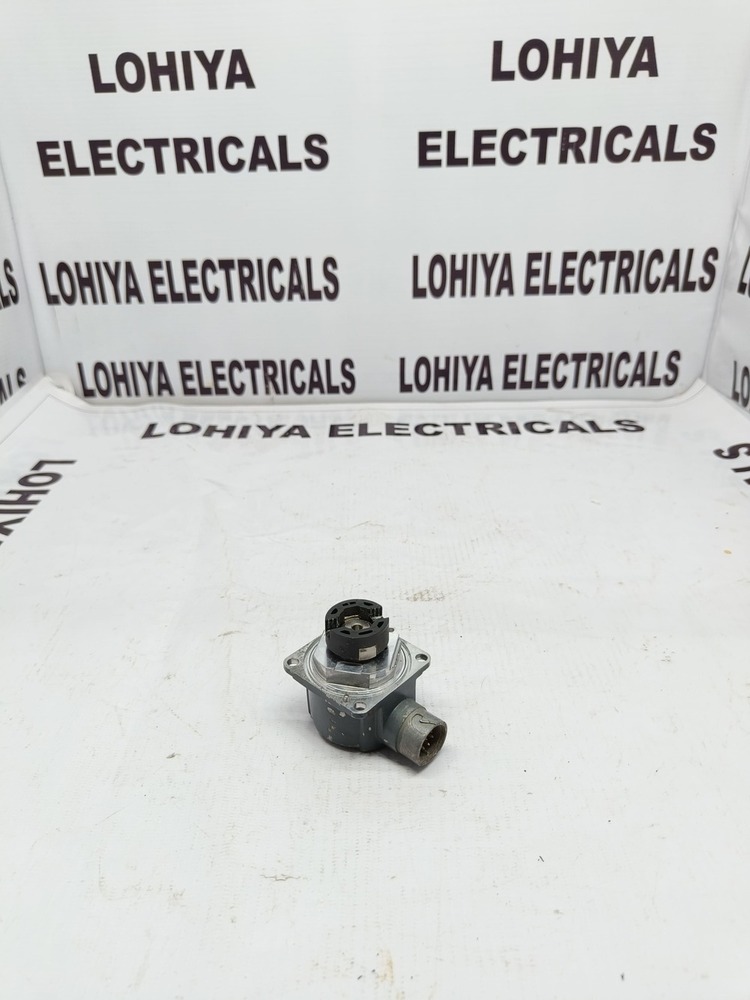

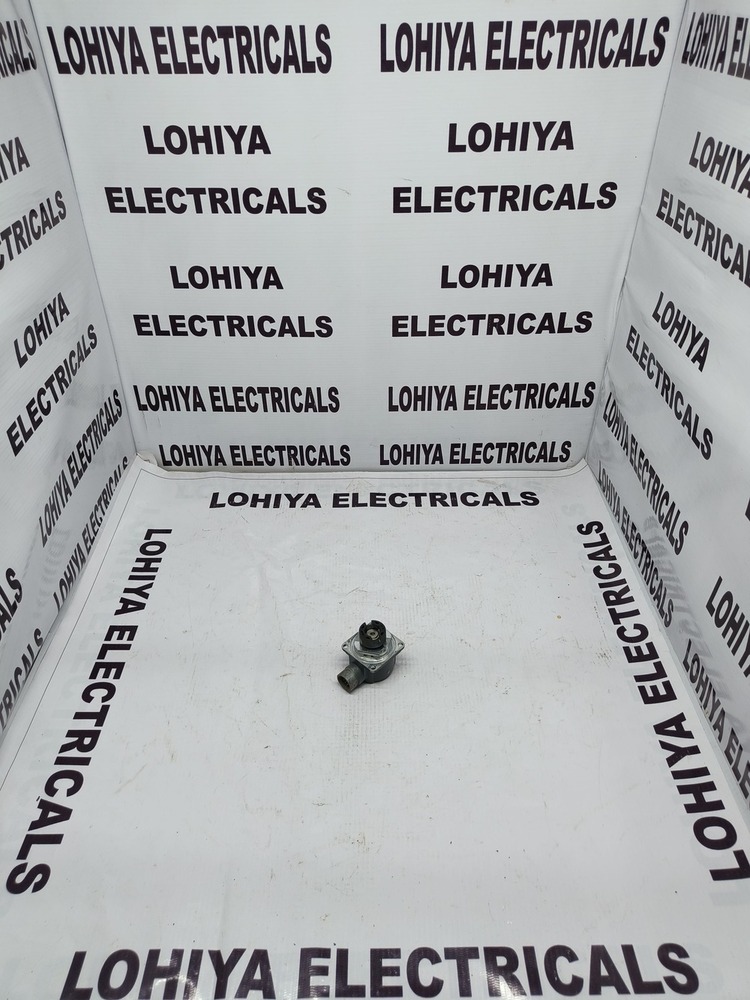

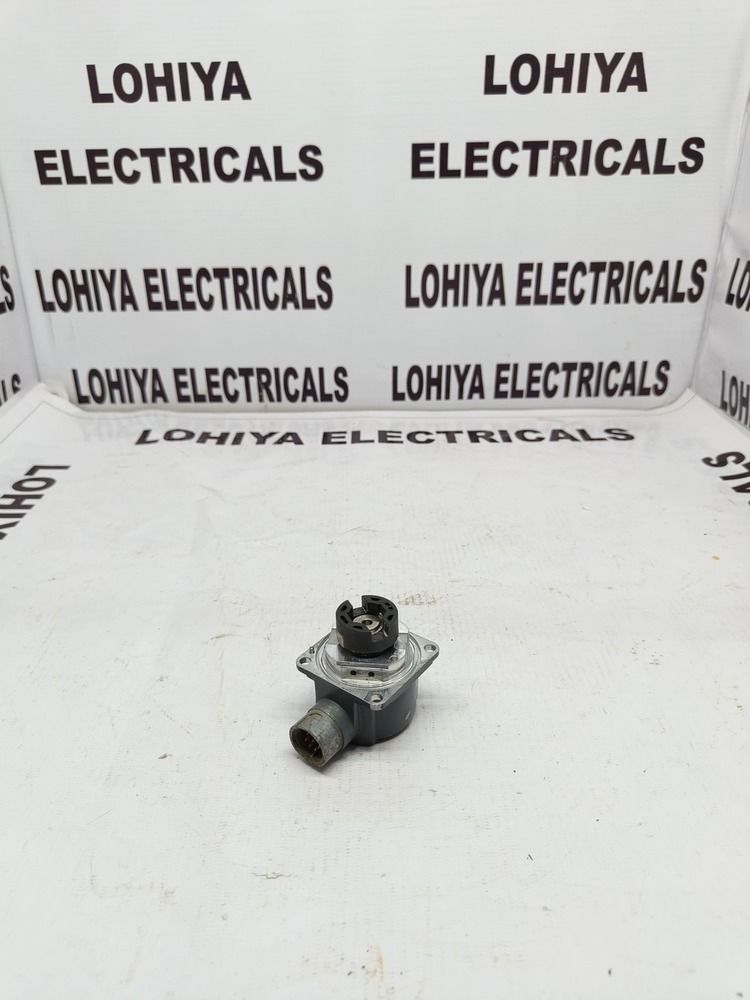

SIEMENS HGX-0572896.a 658684924/J3 ENCODER

Name: SIEMENS HGX-0572896.a 658684924/J3 ENCODER
Brand: LOHIYA ELECTRICALS
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS HGX-0572896.a 658684924/J3 ENCODER Specification

Current Rating
150 mA

Base Material
Aluminum

Way
Single Turn

Operating Voltage
5V DC

Components
Integrated PCB, Rotary Shaft, Encoder Disk

Cabinet Material
Aluminum Alloy

Features
High Precision Sensing, Sturdy Construction, Compact Design

Control System
Digital Output; Incremental Encoder

Cover Material
Polycarbonate

Connectivity Type
Wired (Cable) Output

Rated Operation Voltage
5V DC

Protection Level
IP65

Rated Insulation Voltage
500V AC

Thickness
23 mm

Protection Class
Class II

Rated Current
150 mA

Cooling System
Natural Air Cooling

Product Type
Rotary Encoder

Material
Aluminum Alloy and Electronic Components

Surface Finish
Matte Finish

Standard
Siemens Factory Standard

Surface Color
Metallic Silver

Rated Voltage
5V DC

Maximum Output Current
150 mA

Dimension (L*W*H)
65 mm x 58 mm x 49 mm

Application
Position Feedback in Automation Systems

IP Rating
IP65

Display Type
No Display

Output Type
Incremental, Quadrature

Shaft Diameter
10 mm

Response Time
1 s

RoHS Compliance
Yes

Mounting Type
Flange Mounted

Encoder Model Number
HGX-0572896.a 658684924/J3

Electrical Connection
Shielded Cable with Pre-fitted Connector

Operating Temperature Range
-20C to +85C

Housing Protection
Dustproof, Splash Resistant

Resolution
1024 pulses per revolution (PPR)

SIEMENS HGX-0572896.a 658684924/J3 ENCODER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
No

Main Export Market(s)
Middle East, Africa, South America, Eastern Europe, Western Europe, Asia, Australia, Central America, North America

Main Domestic Market
All India

About SIEMENS HGX-0572896.a 658684924/J3 ENCODER

SIEMENS HGX-0572896.a 658684924/J3 ENCODER upplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- HGX-0572896.a 658684924/J3

Product Name:- SIEMENS HGX-0572896.a 658684924/J3 ENCODER

Brand:- SIEMENS

Condition:- USED CONDITION

SIEMENS HGX-0572896.a 658684924/J3 ENCODER in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT

Description:-

SIEMENS
HGX-0572896.a 658684924/J3
ENCODER

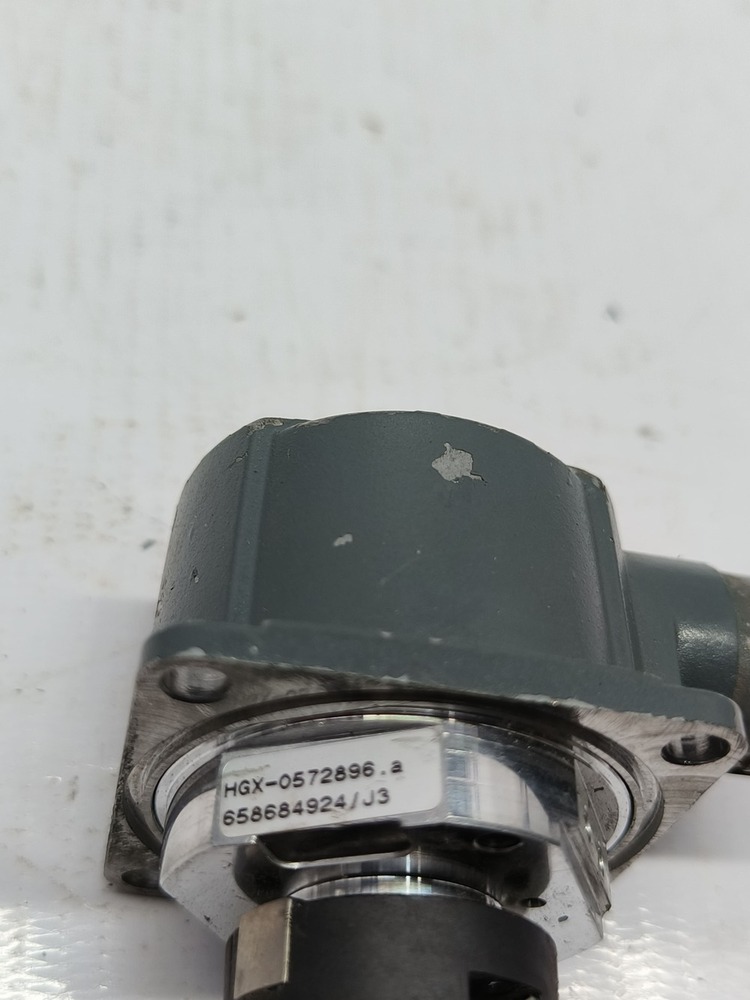

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- HAFIZ SUMRA

Exceptional Precision and Performance

With a resolution of 1024 pulses per revolution, the SIEMENS HGX-0572896.a 658684924/J3 ENCODER offers accurate position feedback critical for automation systems. Its digital quadrature output ensures seamless integration with modern control units, improving overall system reliability and performance in industrial automation.

Durable and Robust Construction

Constructed from premium aluminum alloy and protected by a polycarbonate cover, the encoder withstands tough environments. The IP65 rating guarantees resistance to dust and splashes, while the matte metallic finish shields electronic components for consistently reliable operation in harsh industrial settings.

Simple Integration and Reliable Connectivity

Flange mounting and a shielded cable with a pre-fitted connector allow for straightforward installation and robust signal transmission. The encoder's compact dimensions enable easy retrofitting or incorporation into new designs, making it an ideal solution for automation engineers seeking flexibility and reliability.

FAQ's of SIEMENS HGX-0572896.a 658684924/J3 ENCODER:

Q: How is the SIEMENS HGX-0572896.a 658684924/J3 ENCODER typically installed?

A: This encoder is designed for flange mounting, allowing secure and stable attachment to machinery. The pre-fitted shielded cable and connector simplify the integration process, ensuring reliable data transmission and protection against interference in industrial environments.

Q: What benefits does an incremental quadrature output provide?

A: The incremental quadrature output delivers high-resolution feedback (1024 PPR) and direction detection. This enables precise position tracking, making it suitable for automation systems that demand high accuracy and fine motion control.

Q: Where is this SIEMENS encoder most effectively used?

A: The encoder is ideal for position feedback in automation systems across industries such as manufacturing, robotics, and process control. Its IP65 protection, robust build, and high precision make it suitable for environments where dust, splashes, and demanding operational conditions are present.

Q: What is the recommended operating environment for this encoder?

A: It is designed to function in temperatures ranging from -20C to +85C. The IP65-rated dustproof and splash-resistant housing ensures reliable operation even in harsh and demanding environments.

Q: How does RoHS compliance benefit users?

A: RoHS compliance ensures that the encoder is manufactured without hazardous substances, making it environmentally friendly and safer for operators, and aligning with global standards for electronics sustainability.

Q: What is the process for connecting the encoder to a control system?

A: Simply use the integrated shielded cable with its pre-fitted connector to connect to your automation system's input. The digital incremental signals can then be processed by the system's controller for precise position feedback.
