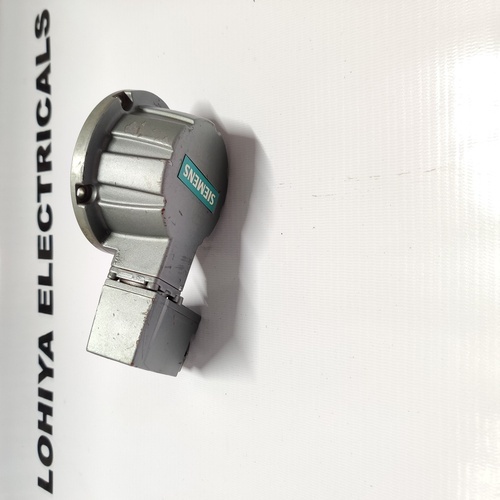

SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 ENCODER

Send Inquiry

Request To Call Back

SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 ENCODER

Get a Price/Quote

MOQ : 1 Piece

SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 ENCODER Specification

Cabinet Material
Aluminum

Cover Material
Aluminum/Anodized

Rated Operation Voltage
5V DC

Connectivity Type
Cable with Connector

Features
Compact Design, High Precision, Durable Housing, Metal Shielding

Base Material
Aluminum

Rated Current
<150 mA

Thickness
Standard/Compact

Operating Voltage
5V DC

Panel Type
Mounting Flange

Components
Incremental Encoder, Connector, Mounting accessories

Rated Insulation Voltage
250V AC

Way
Shaft type, Single-turn

Protection Level
IP64

Control System
CNC/PLC Integration

Cooling System
Natural Convection

Protection Class
II

Current Rating
150 mA

Product Type
Rotary Encoder

Material
Aluminum Alloy, Industrial Electronics Components

Surface Finish
Anodized Finish

Standard
Manufacturer Standard (Siemens/Heidenhain)

Surface Color
Silver/Grey

Rated Voltage
5V DC

Frequency (MHz)
2.048 MHz

Maximum Output Current
150 mA

Dimension (L*W*H)
Approx. 85mm x 60mm x 60mm

Application
Industrial Automation, CNC Machines

IP Rating
IP64

Display Type
No Display (Encoder Output)

Compliance
RoHS Compliant

Weight
Approx. 0.5kg

Vibration Resistance
20 g, 10-2000 Hz

Encoder Type
Incremental Encoder

Model Number
IC22DQ88.011-2048 21B26-T1

Line Driver
RS422 Compatible

Operating Temperature Range
-20°C to +85°C

Made In
Germany

Output Signal
TTL Compatible

Storage Temperature Range
-40°C to +100°C

Shock Resistance
100 g, 6 ms

Shaft Type
Solid Shaft

Bearing Life
>10^9 Revolutions

Cable Length
Standard 1.5 meters (customizable)

Connector Type
Industrial Circular Connector

Resolution
2048 Pulses per Revolution (PPR)

Maximum Mechanical Speed
6000 rpm

Mounting Type
Servo Mount Flange

About SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 ENCODER

Introducing the exclusive SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 Encoderan invincible solution crafted for modern industrial automation. This highlighted, impeccable device delivers 2048 PPR with a solid shaft and TTL-compatible output, ensuring immaculate signal integrity and operational consistency. With its anodized aluminum alloy construction, it is both gorgeous and robust, tailored for demanding CNC and PLC environments. The encoder endures harsh conditions (IP64, -20C to +85C), boasting an ephemeral yet enduring performance thats ahead of its time, perfectly aligning with high-precision applications. Rigorously engineered in Germany, its the top-tier industrial choice.

Unmatched Features & Versatility

The SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 Encoder boasts extra features such as high-precision 2048 PPR resolution, superior vibration and shock resistance, and a compact servo mount flange. Made from lightweight, durable anodized aluminum alloy, it is impeccably suited for intense industrial settings. Ideal for use in CNC machines and automation systems, this encoder ensures accurate position feedback for seamless and reliable integration in control systems, facilitating stable, uninterrupted machinery operation.

Speedy Supply & Nationwide Distribution

We supply the SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 Encoder with stock ready for immediate dispatch throughout Indias main domestic market. With prompt delivery times, customers can secure this industrial encoder at a competitive sale price. Sample units are available on request, allowing for thorough evaluation prior to large-scale procurement. Whether for urgent machine maintenance or system upgrades, our supply chain guarantees consistent availability to meet all automation and CNC requirements.

FAQs of SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 ENCODER:

Q: How is the SIEMENS/HEIDENHAIN IC22DQ88.011-2048 21B26-T1 Encoder typically used in industrial environments?

A: This encoder is primarily used in CNC machines and automation systems, providing precise incremental position feedback for seamless integration with control systems such as PLCs or dedicated motion controllers.

Q: What are the core benefits of choosing this encoder over conventional alternatives?

A: Key advantages include immaculate signal accuracy, robust build quality, highlighted shock and vibration resistance, extended bearing life, and RoHS compliance. The exclusive use of high-grade aluminum alloy ensures durability and longevity under intense industrial demands.

Q: Where can this encoder be supplied and how is delivery managed?

A: We supply and maintain stock ready for prompt delivery across Indias main domestic industrial markets. Our efficient distribution network ensures rapid supply and reliable support.

Q: What materials are used for the encoders construction?

A: Engineered from lightweight yet invincible anodized aluminum alloy for the body and cover, this encoder offers superior corrosion resistance, metal shielding, and an immaculate finish, making it suitable for rugged industrial applications.

Q: How do I request a sample or obtain stock at a sale price?

A: Customers may request sample units for evaluation prior to bulk purchase. Sale price inquiries and sample requests can be directed to our sales team, ensuring you receive the best offer based on your requirements.

Q: What is the process for integrating this encoder into a CNC or PLC system?

A: Integration is streamlined via TTL/RS422 compatible line driver output and industrial circular connector, allowing simple connection to most standard control systems. Mounting accessories are included for secure installation.
