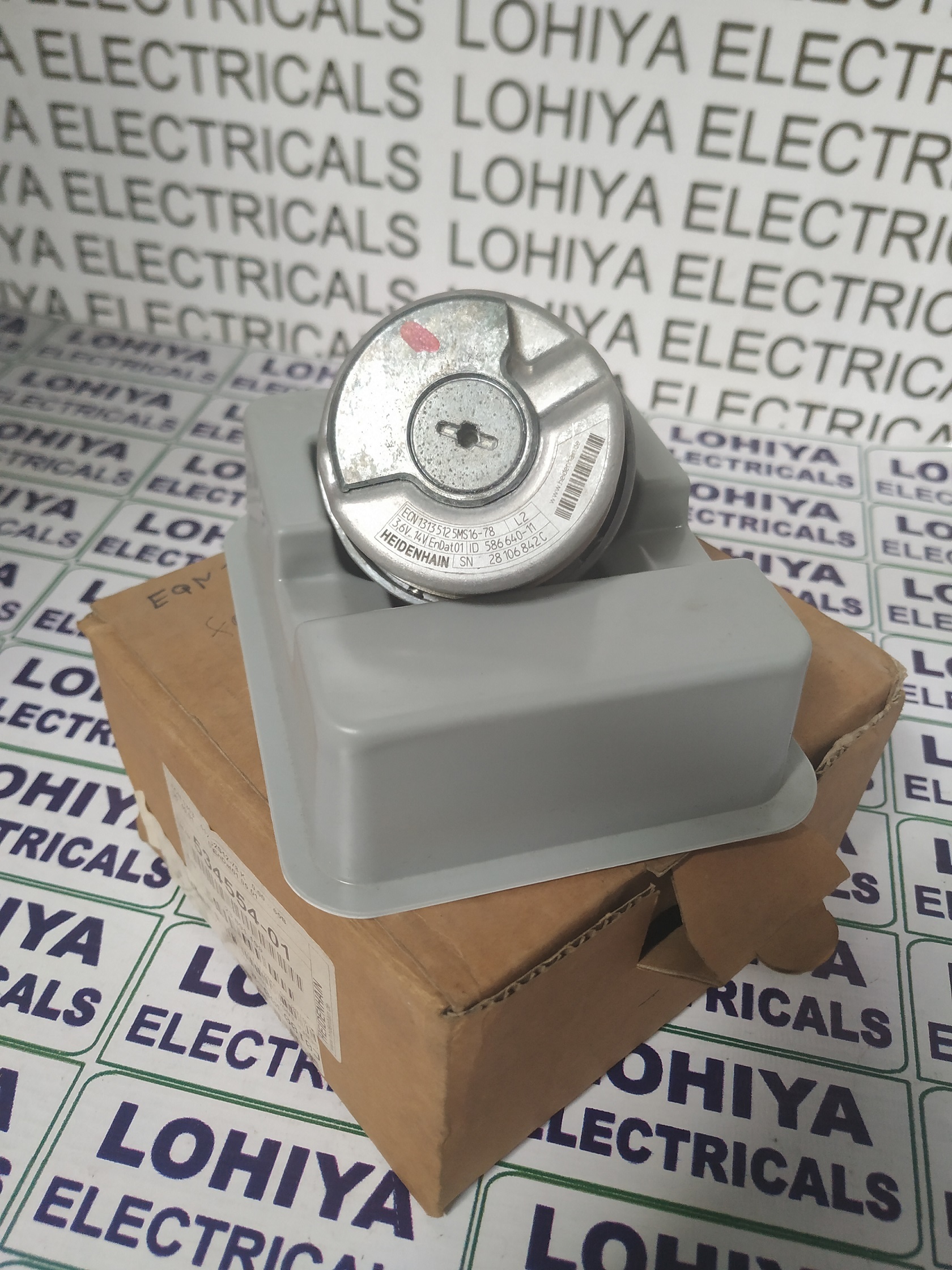

SIEMENS ENCODER ECN 1313 512 5MS16-78

Get a Price/Quote

SIEMENS ENCODER ECN 1313 512 5MS16-78 Specification

Components
Encoder Disc, Shaft, Output Circuitry

Current Rating
100 mA

Rated Current
100 mA

Rated Operation Voltage
5V DC

Base Material
Aluminum

Rated Insulation Voltage
500V

Protection Class
Class II

Cover Material
Aluminum

Connectivity Type
Cable Output, 16-pin Connector

Control System
Feedback/Closed Loop Systems

Features
High precision, Robust construction, Easy installation

Way
Single-Turn

Thickness
Approximately 28 mm

Operating Voltage
5V DC

Protection Level
IP64

Product Type
Rotary Encoder

Material
Aluminum Alloy, Electronic Components

Surface Finish
Anodized

Standard
Industrial Grade

Surface Color
Silver & Black

Rated Voltage
5V DC

Maximum Output Current
100 mA

Dimension (L*W*H)
58 mm (diameter) x 28 mm (height)

Application
Industrial Automation, Servo Motors, CNC Machinery

IP Rating
IP64

Max. Shaft Speed
12000 RPM

Shaft Type
Clamping (hollow shaft with 12 mm diameter)

Output Signal
Incremental (TTL/RS422 compatible)

Resolution
512 PPR (Pulses Per Revolution)

Light Source
Infrared LED

Storage Temperature Range
-40°C to +100°C

Housing Diameter
58 mm

Model Number
ECN 1313 512 5MS16-78

Mounting Type
Shaft-mounted with clamping ring

Operating Temperature Range
-20°C to +85°C

Relative Humidity
Up to 95% (non-condensing)

SIEMENS ENCODER ECN 1313 512 5MS16-78 About

The elite SIEMENS ENCODER ECN 1313 512 5MS16-78 is a new release garnering favorable reviews within the automation sphere. This impeccable incremental encoder delivers a stellar 512 pulses per revolution, ensuring precise motion control for demanding applications. Crafted with a robust aluminum alloy body in a sleek silver & black finish, it champions durability under rigorous industrial conditions. Its rapid 12000 RPM shaft speed and IP64 protection level mark it as a premier choice for servo motors, CNC machinery, and feedback systems. Easy installation and high-precision output make it a standout performer in its class.

Versatile Usage & Methodical Application

SIEMENS ENCODER ECN 1313 512 5MS16-78 offers exceptional adaptability in industrial automation, CNC machinery, and servo motor feedback systems. Its shaft-mounted, hollow design (12 mm diameter) allows seamless integration using a straightforward clamping ring. For optimal use, affix the encoder to the designated shaft, connect the 16-pin cable to your control system, and calibrate within its operational voltage range. It delivers precise, reliable feedback crucial for closed-loop applications, championing operational efficiency in automation environments.

Export Markets, Payments, and Packaging Solution

The SIEMENS ENCODER ECN 1313 512 5MS16-78 enjoys a prominent presence in global markets, particularly across Europe, Asia, and the Americas. Packing & Dispatch practices follow strict industrial standards, ensuring product integrity during shipment. Freight and expenditure details are clarified pre-order, offering flexible payment terms to suit client needs. Each unit is securely packaged for safe transit, minimizing the risk of damage and ensuring its stellar performance upon arrival to your facility.

FAQs of SIEMENS ENCODER ECN 1313 512 5MS16-78:

Q: How do I install the SIEMENS ENCODER ECN 1313 512 5MS16-78?

A: To install, position the encoder onto a 12 mm diameter shaft using the integrated clamping ring. Secure it firmly, then connect the cable output with a 16-pin connector to your control system, ensuring correct voltage and polarity as per the specifications.

Q: What makes this encoder favorable for industrial applications?

A: Its high resolution of 512 PPR, robust aluminum alloy construction, and IP64 protection rating ensure impeccable accuracy and reliability, especially ideal for industrial automation, CNC machinery, and servo motor feedback systems.

Q: Where can I use the SIEMENS ENCODER ECN 1313 512 5MS16-78?

A: This encoder is designed for industrial settingssuch as manufacturing plants, CNC workshops, robotics operations, and servo motor applicationswhere precision feedback and durability are paramount.

Q: When should the encoder be calibrated?

A: Calibration should be performed during initial installation and after any maintenance affecting the encoder or the connected machinery, ensuring continued precision in feedback and performance.

Q: What are the shipment and payment options for this product?

A: SIEMENS encoders are dispatched worldwide, with favorable packing & dispatch arrangements. Customers may discuss freight expenses and select from flexible payment terms prior to placing an order.

Q: How does the encoder enhance operational efficiency?

A: The encoder delivers high-precision feedback necessary for closed-loop control systems, thereby enhancing operational stability, accuracy, and productivity within industrial automation frameworks.
