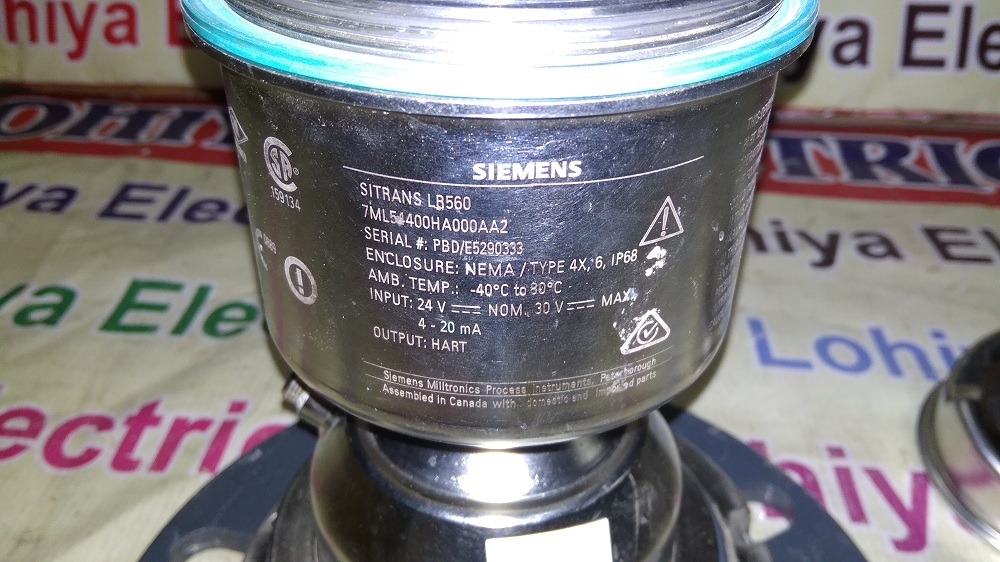

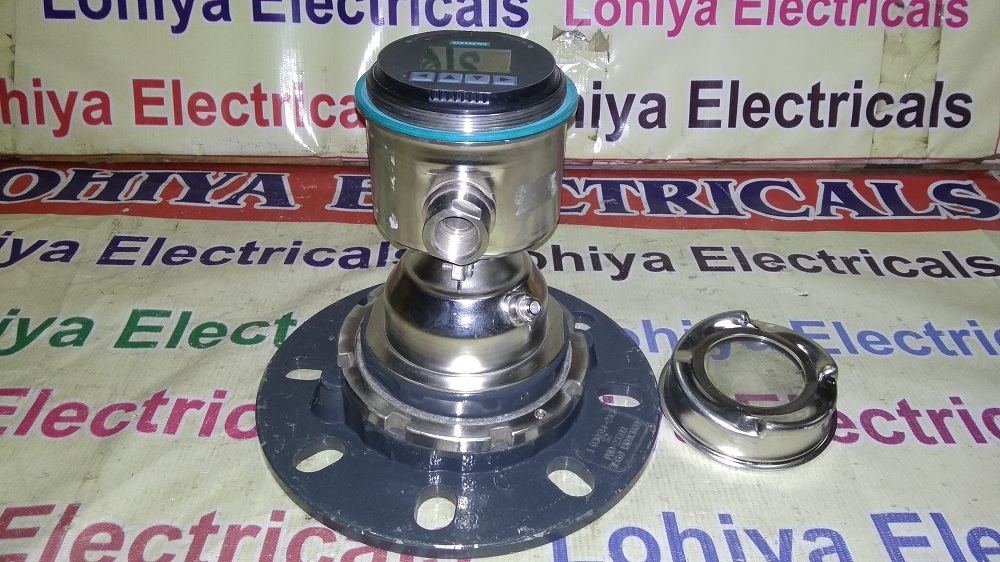

SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2

Send Inquiry

Request To Call Back

SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2

Get a Price/Quote

SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2 Specification

Base Material
Aluminum

Operating Voltage
24 V DC

Rated Operation Voltage
24 V DC

Features
Non-contact radar, high chemical resistance, easy menu navigation, remote configuration

Panel Type
Field mount

Control System
Digital/HART, PROFIBUS PA, Modbus RTU

Cooling System
Natural convection

Way
Two-wire

Connectivity Type
PROFIBUS, HART, Modbus

Rated Current
Max. 500 mA

Cover Material
Aluminum

Rated Insulation Voltage
250 V AC

Components
Integrated display, digital output interfaces

Protection Class
Class I, Div 1/Zone 1 (ATEX/IECEx)

Current Rating
500 mA

Protection Level
IP66/IP68

Cabinet Material
Aluminum, powder coated

Product Type
Digital Interface Level Measurement Transmitter

Material
Aluminum housing, PVDF/Rod antenna

Surface Finish
Industrial grade coating

Standard
Siemens standards, CE, ATEX, IECEx

Surface Color
Gray/Blue

Rated Voltage
24 V DC

Frequency (MHz)
80 GHz (Radar)

Maximum Output Current
500 mA

Dimension (L*W*H)
Approx. 260 x 140 x 110 mm

Application
Continuous level measurement of liquids and solids in tanks, silos, and process vessels

IP Rating
IP66/IP68

Display Type
LCD with on-site operation

Process Connection
Threaded or flanged as specified

Resolution
1 mm

Ambient Temperature Range
-40C to +80C

Measuring Range
Up to 30 m for liquids, 100 m for solids

Explosion Protection
Yes, ATEX and IECEx certified

Process Pressure
-1 to +16 bar

Setup and Configuration
On-site with built-in LCD or remote by SIMATIC PDM

Mounting Orientation
Vertical mounting recommended

Output Signal
4-20 mA/HART, PROFIBUS PA, Modbus RTU

Response Time
< 1 s

Process Temperature Range
-40C to +200C

SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2 About

Capitalise on unprecedented reliability with the SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2, engineered for world-class performance in rigorous industrial settings. Offering a valiant measuring rangeup to 30 m for liquids and 100 m for solidsthis eminent device ensures accurate, non-contact level detection. Reduced installation times and simplified configuration via a built-in LCD or remotely with SIMATIC PDM drive efficiency. With explosion protection (ATEX, IECEx), robust aluminum housing, lowest price advantage, and seamless integration via 4-20 mA/HART, PROFIBUS PA, and Modbus RTU, it is an astute investment for secure process control.

Versatile Application Surface & Eminent Features

The SIEMENS 7ML54400HA000AA2 is meticulously crafted for continuous level measurement in tanks, silos, and process vesselshandling both liquids and solids. Its non-contact radar with 80 GHz frequency ensures precise monitoring, even under challenging conditions. Special features include high chemical resistance, LCD with on-site menu navigation, industrial-grade coating, and explosion protection. Setup is simplified with vertical mounting and can be operated on-site or remotely, capitalising on Siemens valiant engineering standards and renowned reliability.

Sample, Payment, and Rapid Delivery

Stock Ready: Samples of the SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2 are available for evaluation. Payment terms are flexible and tailored to customer requirements. Once ordered, goods are expertly dispatched to your specified locationensuring minimal downtime. Delivery time is optimised through reliable goods transport channels, ensuring the product arrives swiftly and safely. Benefit from expedited supply to keep your operations running with reduced interruptions and prompt, world-class service.

FAQs of SIEMENS DIGITAL INTERFACE LEVEL MEASUREMENT 7ML54400HA000AA2:

Q: How is the SIEMENS 7ML54400HA000AA2 installed and configured?

A: The device is designed for vertical mounting and can be set up using the integrated LCD display for on-site configuration or remotely via SIMATIC PDM for added convenience.

Q: What are the primary applications of this level measurement device?

A: It is ideal for continuous level monitoring of liquids and solids in tanks, silos, and process vessels in various industrial sectors.

Q: What special features does the device offer?

A: This instrument provides non-contact radar measurement, high chemical resistance, explosion protection (ATEX/IECEx), and easy menu navigation, ensuring durability and user-friendly operation.

Q: When can I expect delivery after placing an order?

A: With stock ready, goods are typically dispatched promptly. Delivery time depends on shipping location and transport method, but rapid goods transport ensures swift arrival.

Q: Where is the product best utilised for optimal performance?

A: The device achieves optimal performance when mounted vertically in tanks, silos, or vessels where continuous and precise level measurement of liquids or solids is required.
