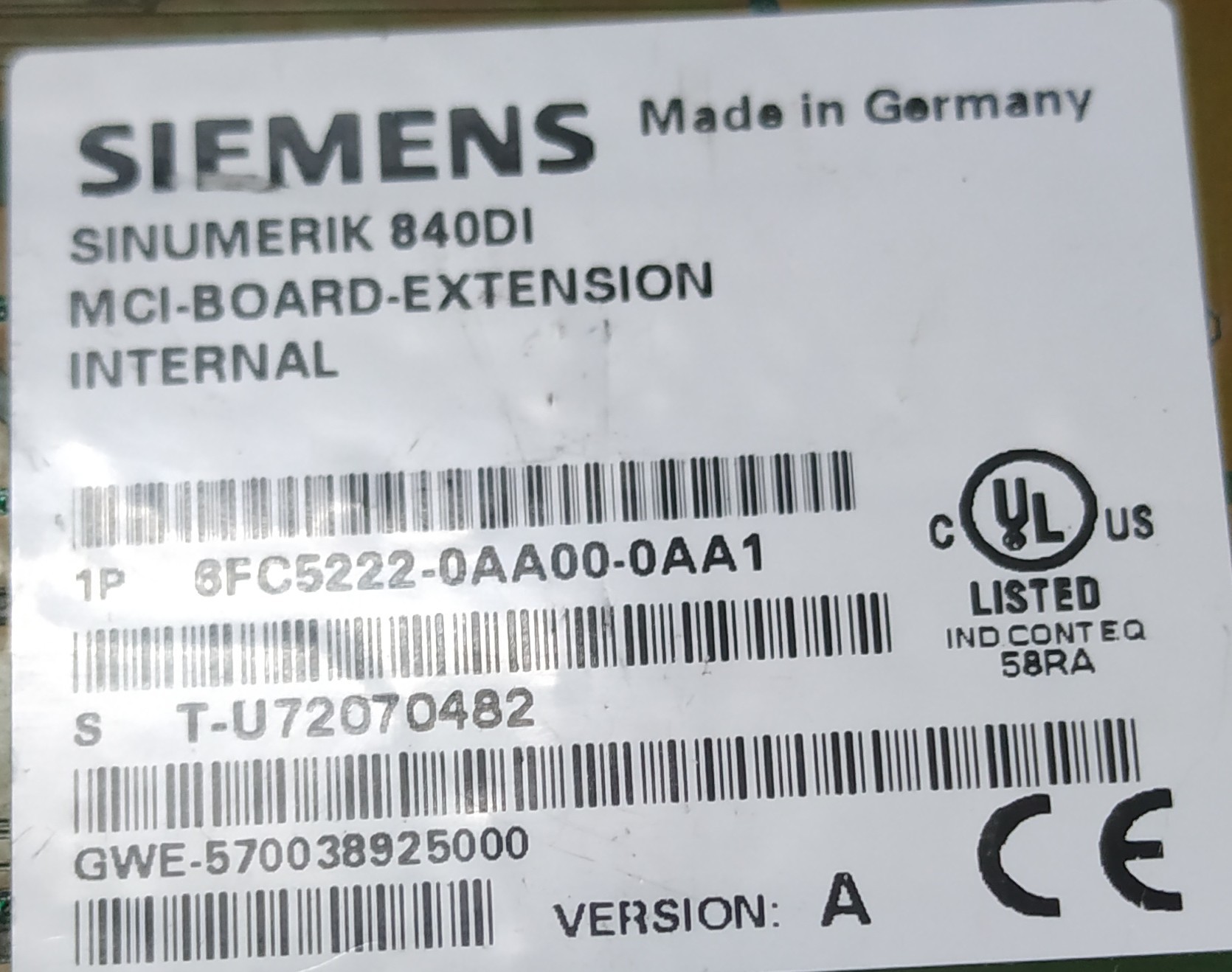

SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1

Get a Price/Quote

SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1 Specification

Overheating Protection
No integrated protection

Shape
Rectangular

Operating Temperature
0C to 55C

Insulation Material
PCB Laminate and Conformal Coating

Surface Finish
Solder mask finish

Connector Type
Multipin Edge Connector

Mounting Type
PCB slot/Rack Mount

Efficiency
High signal fidelity

Humidity %
5% to 95% (non-condensing)

Feature
Reliable Performance, RoHS Compliant

Product Type
Industrial Circuit Board

Application
CNC Machine, Automation Control System, SINUMERIK System

Protection Level
Standard Conformal Coating

Rated Voltage
24V DC (typical, check datasheet)

Energy Consumption
Low

Output Type
Digital/Electronic signal

Color
Green

Dimension (L*W*H)
Approx. 260 mm x 180 mm x 25 mm

Weight
Approx. 250 g

Input Voltage
24V DC

Size
Standard for SIEMENS 6FC5222 Series

Material
High-grade PCB with electronic components

Connection Type
Edge Connector / Plug-in

RoHS Compliance
Yes

Signal Type
Digital/Control/Communication

ESD Protection
Yes

Compatibility
For Siemens SINUMERIK CNC Systems

Packaging Type
Anti-static sealed packaging

Firmware Upgradable
Yes, if applicable per machine

Model Number
6FC5222-0AA00-0AA1

Product Condition
New (Unused)

About SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1

Get your hands on the astounding SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1 specifically designed for Siemens SINUMERIK CNC Systems. Procure this prime, new, unused PCB featuring ESD protection, remarkable signal fidelity, and limited stock availability. Its glorious green surface finish and high-grade construction ensure reliable automation control for machine operations. The board includes digital/control/communication outputs, firmware upgrade capability (where applicable), RoHS compliance, and low energy consumption. Packaged securely in anti-static material, it mounts easily into standard PCB slots with plug-in edge connectors. Make automation flawless with Siemens genuine quality.

Direction and Application Areas

Utilize the SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1 by slotting it securely into Siemens SINUMERIK CNC systems or compatible automation racks. Suitable for advanced industrial applications, it excels in CNC machining centers, automation control systems, and SINUMERIK configurations. Designed for straightforward plug-in operation, it brings efficiency to automation processes across engineering domains where high-precision electronic signal control is required.

Supply Ability and Certifications

Stock Ready for immediate dispatch, our supply chain supports swift processing for domestic market demands. Proposal amount can be confirmed upon inquiry, ensuring transparent transactions and competitive terms. This Siemens circuit board adheres to strict certification standards, including RoHS compliance and meticulous quality benchmarking. Secure payment terms and responsive customer support accompany every purchase, personifying reliability for professional automation projects.

FAQs of SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1:

Q: How can I install and use the SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1 in my CNC machine?

A: Insert the board into the designated PCB slot or rack of your Siemens SINUMERIK CNC system. Its edge connector is designed for secure plug-in and immediate integration with digital/control/communication signals.

Q: What certifications does the SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1 carry?

A: The circuit board is RoHS compliant, ensuring it meets stringent European standards for hazardous substances restraint, providing safety and reliability in automation environments.

Q: When can I expect delivery after placing my order for this circuit board?

A: Stock is ready, and dispatch typically occurs within a short timeframe. Exact delivery schedules depend on your location and proposal amountour team will confirm upon processing.

Q: Where is this Siemens circuit board suitable for use?

A: It is primarily designed for Siemens SINUMERIK CNC systems but is also suitable for other automation control systems in engineering and manufacturing sectors that require reliable digital signal management.

Q: What process ensures the reliability of the SIEMENS CIRCUIT BOARD 6FC5222-0AA00-0AA1?

A: The board features a robust solder mask finish, standard conformal coating protection, and is packaged in anti-static sealed materials to maintain high signal fidelity and safeguard against environmental hazards.
