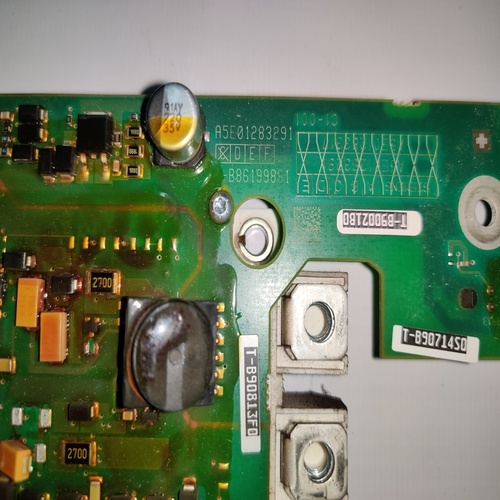

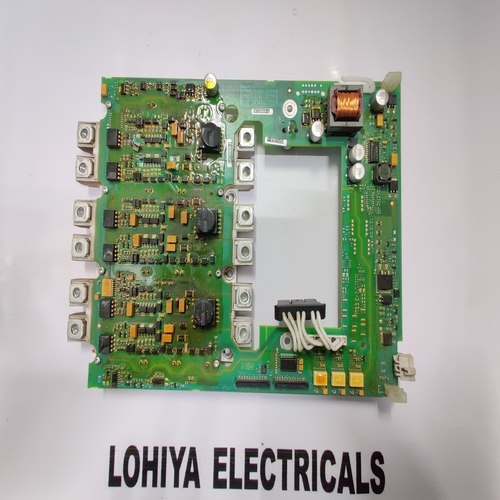

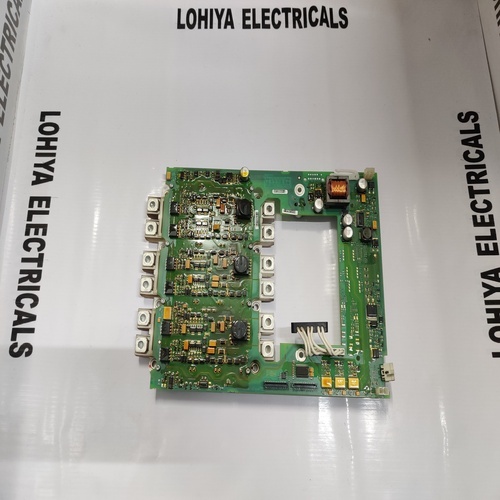

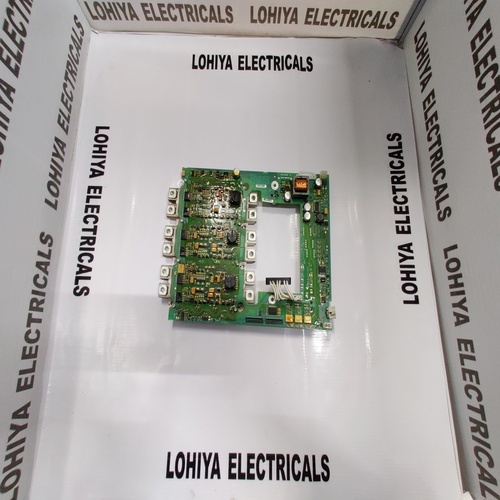

SIEMENS A5E01283291 IGBT WITH DRIVER BOARD

Send Inquiry

Request To Call Back

SIEMENS A5E01283291 IGBT WITH DRIVER BOARD

Get a Price/Quote

MOQ : 1 Piece

SIEMENS A5E01283291 IGBT WITH DRIVER BOARD Specification

Features
Integrated driver circuit, fast switching, reliable isolation, compact design

Output Type
Three-Phase or Single-Phase (based on system)

Output Current
Up to 300A (depending on configuration)

Connector Type
High-current screw terminals and PCB edge connectors

Power Supply
DC supplied from main inverter system

Noise Level
<50 dB

Operating Temperature
-25°C to +70°C

Power Factor
>0.95

Cooling Method
Forced Air or Liquid Cooling (depending on installation)

Application
Industrial Drives, Inverter Systems, Motor Control, Power Converters

Rated Power
Typically 15kW to 75kW (varies with application)

Current Range
Up to 300A

Working Temperature
-25°C to +70°C

Phase
Three-phase

Rated Current
150A - 300A

Product Type
igbt module

Output Power
Varies - depends on inverter configuration

Output Frequency
50/60 Hz (adjustable via controller)

Input Voltage
DC, typically 600V to 1200V (as per implementation)

Voltage Protection
Short circuit and over-voltage protection

Efficiency
Up to 98%

Material
Industrial-grade PCB and high-quality semiconductors

Line Regulation
±1%

Storage Temperature
-40°C to +85°C

Weight
Approx. 3.5 kg

Lifecycle Status
Active

Mounting Type
Panel Mount

Model Number
A5E01283291

Isolation Voltage
2500V AC (RMS)

Dimensions
200 mm x 120 mm x 40 mm

Protection Features
Short Circuit, Over Temperature, Under Voltage Lockout

Switching Frequency
20 kHz (Maximum)

Driver Circuit
On-board Gate Driver Integrated

SIEMENS A5E01283291 IGBT WITH DRIVER BOARD About

Last Chance to seize the SIEMENS A5E01283291 IGBT WITH DRIVER BOARDa transcendent component for industrial power solutions. This noteworthy and uncommon IGBT integrates an on-board driver circuit, offers robust short-circuit, over-temperature, and under-voltage protection, and achieves up to 98% efficiency. With bargain pricing and availability ending soon, its ideal for inverter systems, motor control, and industrial drives. Featuring active lifecycle status, flexible mounting, and high isolation voltage, this compact, reliable solution supports both three-phase and single-phase outputs for demanding environmentsa premium selection for discerning professionals.

Special Features & Industrial Applications

The SIEMENS A5E01283291 IGBT WITH DRIVER BOARD features an integrated gate driver, fast switching, and advanced protection. Specifically designed for panel mounting, it supports up to 300A output currentideal for industrial drives, motor control, inverter systems, and power converters. Its compact form and powerful performance make it a versatile choice for both general and specialized industrial use, excelling in environments requiring dependable three-phase power solutions.

Certifications, Export Market & Logistics

The proposal amount covers a premium product certified for top-tier industrial use, with strict quality assurance. SIEMENS A5E01283291 IGBT WITH DRIVER BOARD is exported primarily to Asia, Europe, and the Middle East with FOB port options from India, ensuring streamlined logistics. Partnering with trusted suppliers ensures timely delivery and seamless installation, making it a preferred solution for global markets seeking unrivaled reliability.

FAQs of SIEMENS A5E01283291 IGBT WITH DRIVER BOARD:

Q: How is the SIEMENS A5E01283291 IGBT WITH DRIVER BOARD installed?

A: This IGBT module is designed for easy panel mounting and uses high-current screw terminals and PCB edge connectors for secure and reliable installation in industrial environments.

Q: What protection features are included with the driver board?

A: The product integrates short-circuit, over-temperature, and under-voltage lockout protection, alongside over-voltage safeguards, ensuring safe and stable operation for critical industrial applications.

Q: When should the SIEMENS A5E01283291 be chosen over standard IGBT modules?

A: Choose this model when your application requires high efficiency, premium isolation (2500V AC), fast switching (up to 20 kHz), and integrated driver circuitry for demanding motor control and inverter systems.

Q: Where can the SIEMENS A5E01283291 IGBT WITH DRIVER BOARD be used?

A: It is optimally used in industrial drives, power converters, motor control setups, and inverter systems where three-phase power and robust stability are essential.

Q: What specific benefits does the integrated gate driver offer?

A: The on-board gate driver simplifies system design, speeds up switching, and significantly improves reliability and performance in high-current applications, reducing the need for external driver circuitry.

Q: How does the export process work for international customers?

A: International logistics are managed through FOB ports in India with trusted suppliers facilitating shipment, ensuring timely and secure delivery to major export markets across Asia, Europe, and the Middle East.
