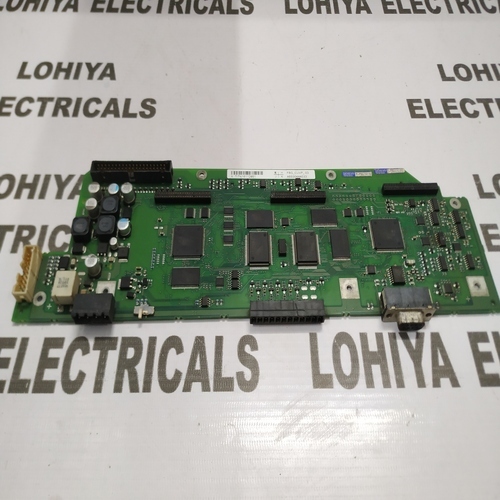

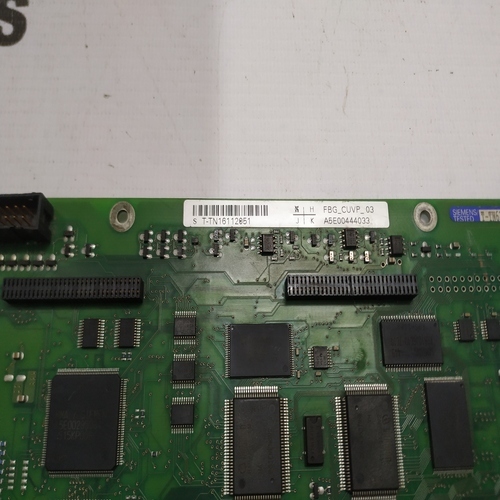

SIEMENS A5E00444033 PCB

Get a Price/Quote

SIEMENS A5E00444033 PCB Specification

Application
Automation controllers, PLC expansion, industrial signal processing

Cooling Method
Natural air cooling

Rated Current
2A max

Power Supply
24V DC external or through PLC system

Noise Level
Negligible (signal-level electronic board)

Output Current
Up to 2A (dependent on onboard circuit design)

Operating Temperature
0°C to 60°C

Current Range
0-2A (depends on design circuit load)

Rated Power
<10W (typical for PCB signal board)

Phase
Single Phase (signal-level circuits)

Features
Highly reliable operation, robust PCB construction, easy PLC integration, compact modular design

Working Temperature
0°C to 60°C

Connector Type
Terminal block and flat ribbon connector

Power Factor
N/A (signal PCB)

Output Type
Signal/Data/Control output

Product Type
Printed Circuit Board (PCB)

Output Power
Dependent on application (typically low-power signal)

Output Frequency
DC/Signal (depends on connected load or function)

Input Voltage
24V DC (typical for Siemens automation PCBs)

Voltage Protection
Integrated circuit protection (Varistors/Fuses depending on circuit)

Efficiency
>90% (for control signal transfer)

Material
FR4 Epoxy Glass Resin

Line Regulation
±1% (depends on application)

Storage Temperature
-25°C to +85°C

Weight
Approx. 150g

Dimensions
Approx. 175mm x 100mm x 20mm

PCB Layer Count
2-layer

Compatibility
Siemens S7 and related PLC families

Conformal Coating
Yes

Mounting Type
DIN Rail / Panel Mount (with mounting holes)

Part Number
A5E00444033

Insulation Voltage
500V AC (for PCB isolation)

PCB Color
Green

About SIEMENS A5E00444033 PCB

The SIEMENS A5E00444033 PCB is a sought-after, rarefied component designed for automation systems demanding reliability and precision. In demand across industrial sectors and increasingly scarce due to limited production runs, this two-layer DIN Rail/Panel Mount PCB boasts unprecedented integration with Siemens S7 and related PLCs. Featuring robust FR4 epoxy glass construction, advanced conformal coating, and integrated circuit protection, its highly efficient >90% signal transfer ensures dependable performance. Secure yours during this limited-time availability and optimize your operations with this essential, reliable signal processing solution.

Tailored for Siemens Automation Systems

The SIEMENS A5E00444033 PCB is engineered specifically for use within Siemens S7 and compatible PLC families, excelling in automation controllers and PLC expansion modules. Used primarily as a signal/data/control output board, it supports industrial environments such as manufacturing lines, control panels, and industrial signal processing. With a modular, compact design, it delivers reliable integration, supporting efficient control signal communication and seamless operation within complex process systems.

Flexible Payment and Shipping Policies

Payment options for the SIEMENS A5E00444033 PCB include bank transfer and credit facilities, accommodating various procurement scales. Samples are available upon request to ensure product suitability before bulk commitment. With robust supply ability, units are shipped promptly via reliable freight logistics partners. Every order is packaged securely to minimize transit risk, ensuring your PCB arrives undamaged and ready for deployment in your automation infrastructure.

FAQs of SIEMENS A5E00444033 PCB:

Q: How is the SIEMENS A5E00444033 PCB typically used in automation systems?

A: This PCB functions as an output board for signal, data, or control in Siemens S7 PLC-based automation controllers, supporting tasks such as industrial process monitoring, machine control, and expansion of existing PLC modules.

Q: What benefits does the conformal coating provide on this PCB?

A: The conformal coating offers superior protection against dust, humidity, and chemicals, which enhances durability and reliability of the PCB in harsh industrial environments.

Q: When can I expect shipment after placing an order?

A: Orders for the SIEMENS A5E00444033 PCB are typically shipped within a few business days due to efficient supply logistics and immediate stock availability.

Q: Where is this PCB most commonly installed?

A: It is commonly installed in control panels, PLC boxes, and industrial automation consoles that utilize Siemens S7 or related PLC families for production line processes.

Q: What is the process for requesting a sample for product evaluation?

A: You can request a sample by contacting sales, specifying your project requirements. Samples are shipped via standard freight options to ensure prompt and secure delivery.

Q: How does the integrated circuit protection improve PCB performance?

A: Integrated varistors and fuses protect the PCB from electrical surges and overcurrent, helping extend its operational lifespan and safeguarding connected PLC systems.
