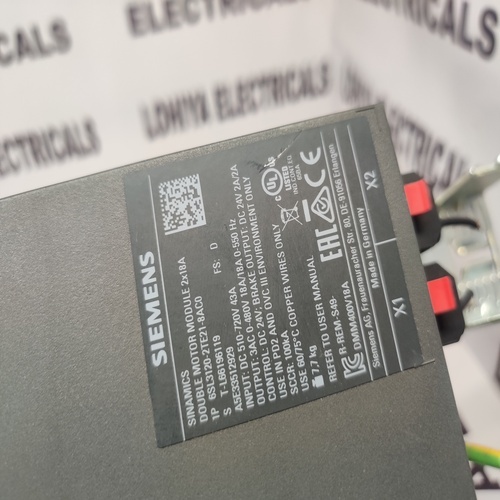

SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE

Send Inquiry

Request To Call Back

SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE

Price 1 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE Specification

Components
Integrated drive module, dual motor outputs

Rated Operation Voltage
3 AC 400 V

Protection Class
Class I

Base Material
Reinforced plastic & metal alloy chassis

Connectivity Type
Terminal and bus connection (Drive-CLiQ, DC link, motor)

Control System
SINAMICS S120, PROFIBUS & PROFINET compatible

Panel Type
Module

Current Rating
18 A per channel

Way
Double channel

Rated Current
2 x 18 A

Cover Material
Industrial enclosure grade plastic

Operating Voltage
24 V DC (control), 400 V AC (power)

Thickness
Standard compact module thickness

Rated Insulation Voltage
600 V

Protection Level
Integrated electronic protection

Product Type
Double Motor Module

Material
Industrial grade electronic components

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Silver/Grey

Rated Voltage
600 V DC (supply), 400 V AC (motor) nominal

Frequency (MHz)
50/60 Hz

Maximum Output Current
2 x 18 A

Dimension (L*W*H)
340 x 100 x 237 mm

Application
SINAMICS S120 drive systems, industrial drive control

IP Rating
IP20

Display Type
Status LEDs

Features
Compact design, high performance, short-circuit protection, diagnostics, modular expandability

Cabinet Material
Metal with plastic cover

Weight
~8.5 kg

Operating Temperature Range
0C to 40C

System Integration
Compatible with SINAMICS S120 modular drive system

Cooling System
Internal air cooling

Mounting
Control cabinet mounting, vertical orientation

Typical Applications
Automated machines, packaging, conveyors, motion control systems

Storage Temperature Range
-25C to +70C

Motor Connection
2 independent motor terminals

About SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE

Explore the elite SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE, designed for top-drawer performance in demanding industrial environments. With its classic compact design and premier diagnostics, this module stands out with modular expandability and advanced short-circuit protection. The internal air cooling system and matte silver/grey finish ensure reliable operation and durability. Engineered for seamless integration into SINAMICS S120 modular drive systems, it features dual motor terminals, robust connectivity, and vertical control cabinet mounting. Try now and elevate your motion control systems to premier standards.

Material Construction & Performance Highlights

Constructed using industrial-grade components and a reinforced plastic and metal alloy chassis, the SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE ensures long-term reliability. With a compact form, high performance output, internal air cooling, and modular expandability, this classic module delivers unmatched versatility. Its primary use includes automated machines, packaging, conveyors, and motion control systems, providing elite protection with diagnostic capabilities and integrated electronic safeguards.

Export & Domestic Market Offerings

As a top supplier and trader in India, this premier module finds recognition in both domestic and export markets. Purchase orders for the SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE are welcomed from industrial buyers worldwide. Our sample policy is shaped to offer samples on request for genuine business prospects, supporting seamless integration and business relationships in the automation sector globally.

FAQs of SIEMENS 6SL3120-2TEE21-8AC0 DOUBLE MOTOR MODULE:

Q: How does the SIEMENS 6SL3120-2TEE21-8AC0 module support multiple motor connections?

A: This module features two independent motor terminals, allowing users to connect and control two separate motors simultaneously within a SINAMICS S120 system.

Q: What are the key benefits of its internal air cooling system?

A: The embedded air cooling ensures reliable temperature control, maintaining optimal module performance and extending its operational lifespan in varied industrial environments.

Q: Where can the module be mounted within industrial setups?

A: Designed for vertical orientation in control cabinet mounting, the module seamlessly fits into standard cabinet systems for organized and efficient installations.

Q: What is the process for integrating this module with SINAMICS S120 drive systems?

A: Integration involves connecting the module via Drive-CLiQ, DC links, and motor terminals to the SINAMICS S120 framework. PROFIBUS and PROFINET compatibility enable flexible system configurations.

Q: Which typical applications benefit from using this double motor module?

A: It excels in automated machines, packaging lines, conveyor systems, and motion control applications, providing efficient operation, diagnostics, and safety measures.
