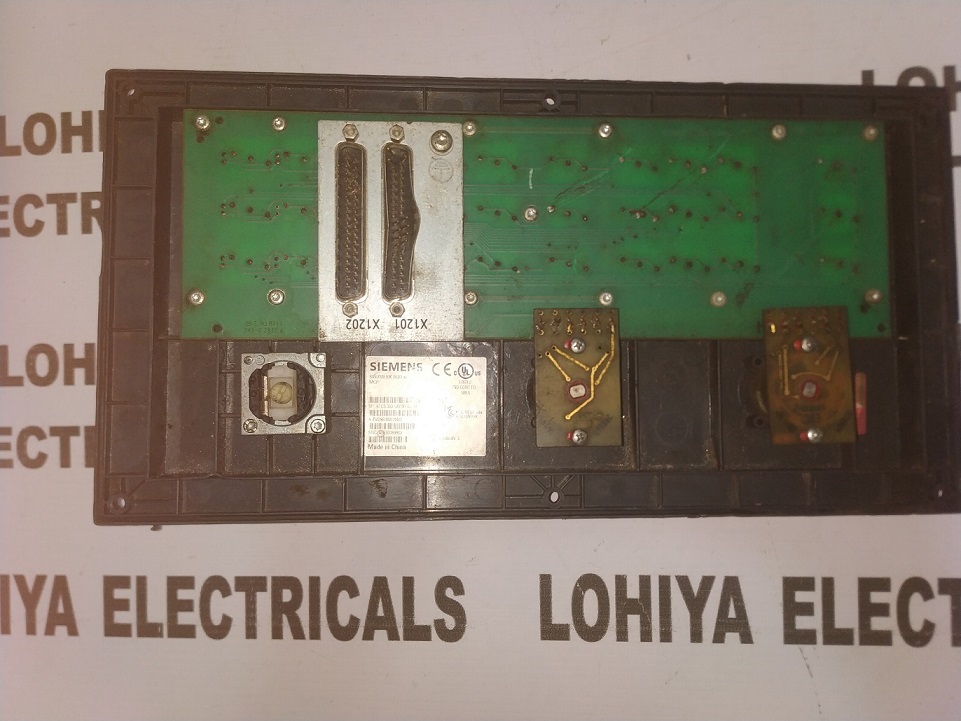

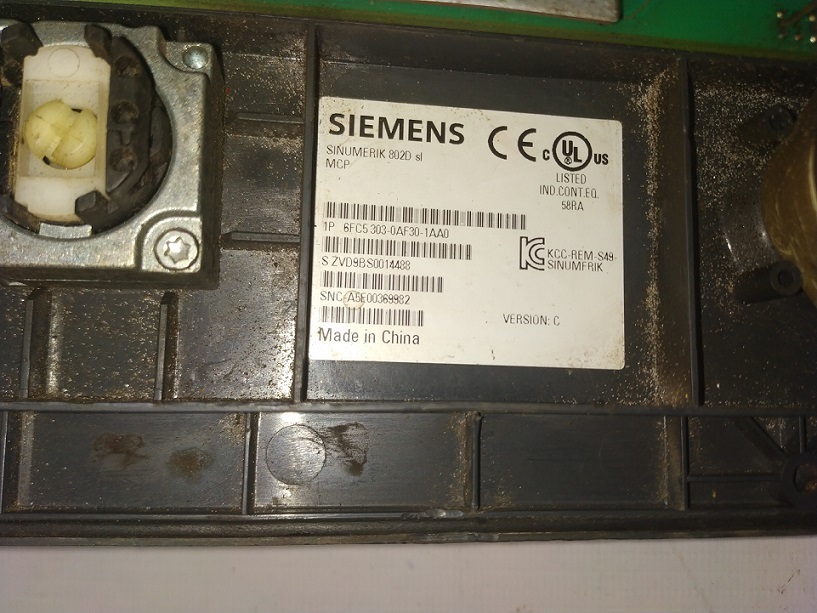

SIEMENS 6FC5303-0AF30-0AA0 KEYPAD

Get a Price/Quote

SIEMENS 6FC5303-0AF30-0AA0 KEYPAD Specification

Thickness
0.8 mm

Base Material
Flexible PCB/PET Film

Operating Voltage
5V DC

Current Rating
50 mA maximum

Panel Type
Front Keyboard Panel

Components
Membrane switches, Printed Circuit Tracks, Conductive Layers

Control System
SINUMERIK 840D/810D Systems

Cover Material
Polyester/Polycarbonate

Protection Level
IP65 (Front Panel)

Protection Class
Industrial Electronics

Features
High Durability, Dust & Liquid Resistant, UV Stabilized Printing

Rated Operation Voltage
DC 5V

Rated Current
50 mA maximum

Connectivity Type
Flat Cable Connector (tail)

Way
Single

Product Type
CNC Keypad Membrane

Material
High-quality Membrane with Polyester/Polycarbonate Overlay

Surface Finish
Matte/Anti-glare Finish

Standard
Siemens Original OE Part

Surface Color
Black with White and Yellow Markings

Rated Voltage
DC 5V

Maximum Output Current
50 mA

Dimension (L*W*H)
Approx. 225 mm 102 mm 1 mm

Application
For Siemens SINUMERIK CNC Control Panels

IP Rating
IP65 (Front Side)

Operating Temperature Range
-20°C to +70°C

Suitable For
Replacement Keypad for CNC Machine Interface

Mounting System
Adhesive Back

Response Time
< 5 ms

Storage Temperature Range
-30°C to +80°C

Button Lifetime
> 1 Million actuations

Model Number
6FC5303-0AF30-0AA0

Actuation Force
170-360 g (standard)

RoHS Compliant
Yes

About SIEMENS 6FC5303-0AF30-0AA0 KEYPAD

Jump on the acclaimed SIEMENS 6FC5303-0AF30-0AA0 Keypad a champion performer designed for CNC machine interfaces. This top-tier, original Siemens OE part boasts a ravishing matte, anti-glare finish, with black, white, and yellow markings for optimal clarity. Built for over 1 million actuations and extreme temperature resilience, its sterling features include IP65 protection, high-quality membrane construction, and UV stabilized printing. With swift response time and adhesive mount system, this keypad sets the standard for demanding industrial environments, ensuring reliable and precise operation every time.

Versatile and Reliable Keypad for CNC Panel Applications

The SIEMENS 6FC5303-0AF30-0AA0 Keypad is specifically created for general and replacement use in SINUMERIK 840D and 810D CNC control panels. Its surface is ideal for front panel mounting using a robust adhesive back, ensuring a seamless interface application. This membrane keypad is engineered for industrial usage types, combining rugged functionality with user-friendly operation, making it a sterling choice for continuous use in high-demand machine environments.

Shipping, Packaging, and Supply Information

We offer the SIEMENS 6FC5303-0AF30-0AA0 Keypad with express shipping from our FOB port, ensuring your order reaches you swiftly and efficiently. Every unit is carefully packaged to prevent damage during transit, minimizing freight risks and extra charge concerns. With impressive supply ability, we cater to orders of various scales. Our professional logistics team ensures prompt dispatch, so you experience fast, hassle-free delivery wherever your operations are based.

FAQs of SIEMENS 6FC5303-0AF30-0AA0 KEYPAD:

Q: How does the SIEMENS 6FC5303-0AF30-0AA0 Keypad improve CNC machine operation?

A: The keypad delivers swift, accurate commands with less than 5 ms response time, ensuring seamless and efficient control for SINUMERIK 840D/810D CNC systems.

Q: What are the key durability features of this keypad?

A: With a button lifetime of over 1 million actuations, a robust matte/anti-glare surface, and UV-stabilized printing, the keypad withstands intense industrial use, dust, and liquid exposure (IP65 front panel protection).

Q: Where can this keypad be installed?

A: It is designed for direct mounting onto CNC control panel fronts using a high-strength adhesive back, ideal for use in industrial automation settings.

Q: When should I consider replacing my existing keypad with this model?

A: Replace your keypad if you experience faulty key response, visible wear, or system errors. The SIEMENS 6FC5303-0AF30-0AA0 serves as an OE replacement for SINUMERIK 840D/810D panels.

Q: What is the process for installation?

A: Simply clean the panel surface, align the adhesive-backed keypad, press firmly to secure, and connect the flat cable connector to the control unit.

Q: How does its surface and construction benefit industrial operations?

A: Its polyester/polycarbonate overlay and anti-glare finish reduce reflection and wear, while the flexible PCB ensures reliable tactile feedback and resilience in challenging environments.
