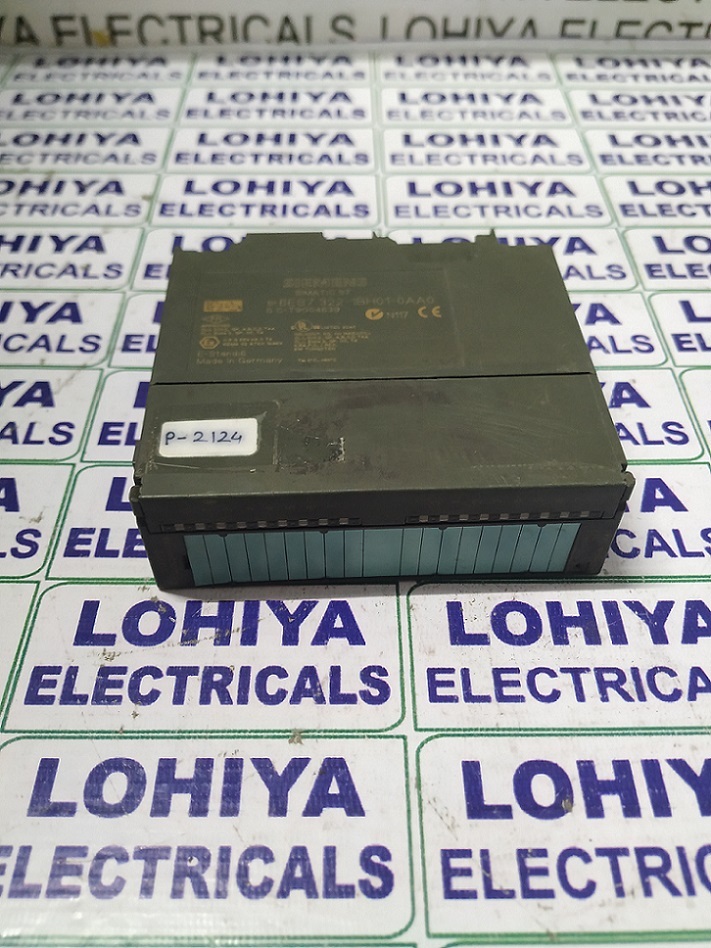

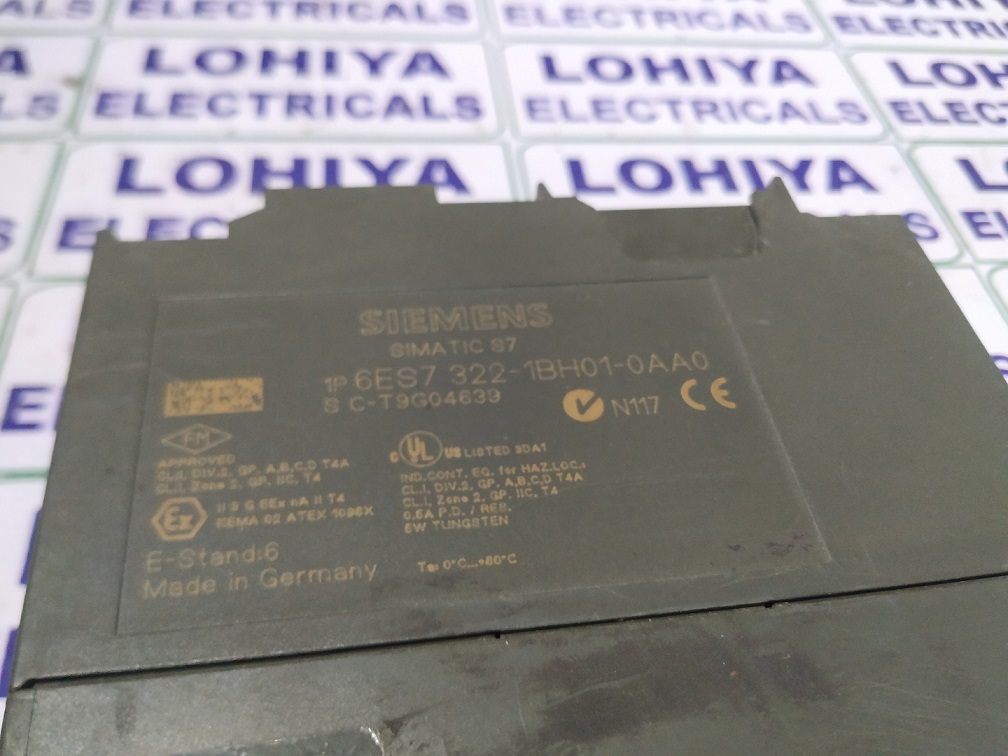

SIEMENS 6ES7 322-1BH01-0AA0 INPUT MODULE

Get a Price/Quote

SIEMENS 6ES7 322-1BH01-0AA0 INPUT MODULE Specification

IP Rating
IP20

Features
Channel diagnosis, Hot swapping in RUN, LED status indicators

Installation Type
DIN rail mounting

Current
5 mA per channel (typical)

Mounting Type
Vertical mounting

Protection Level
Isolation between channels and backplane

Connectivity Type
Backplane bus, front connector (40-pin) optional

Usage & Applications
Digital signal acquisition in automation systems

Display
No integrated display

Product Type
Digital Input Module

Operating Temperature
0C to +60C

Working Temperature
0C to +60C

Input
32 digital inputs, 24V DC

Application
Industrial automation, PLC systems

Supply Voltage
24V DC

Accuracy
Input delay typ. 4.8 ms

Dimension (L*W*H)
125 mm x 40 mm x 120 mm (approx.)

Weight
Approx. 400g

Permissible Humidity
5% to 95% (non-condensing)

Maximum Input Voltage
30V DC

Minimum Input Voltage
13V DC for signal logic '1'

Power Consumption
Approx. 3.5 W

Input Type
Sink/Source (IEC Type 1/3)

Channel-to-Bus Isolation
Yes

Diagnostics
Channel-specific diagnostics

Response Time
Max. 4.8 ms

Connection Type
Front connector (40-pin)

Compatible PLC Series
SIMATIC S7-300

Storage Temperature
-40°C to +70°C

Hot Swapping
Supported (module can be replaced during operation)

About SIEMENS 6ES7 322-1BH01-0AA0 INPUT MODULE

Discover the SIEMENS 6ES7 322-1BH01-0AA0 INPUT MODULE, a superb addition to your industrial automation portfolio. As a popular choice for the SIMATIC S7-300 PLC series, this input module delivers unassailable performance with 32 digital inputs and robust diagnostic capabilities. Enjoy value with reliable power consumption and a hot deal on advanced features like channel-specific diagnostics, channel-to-bus isolation, and hot swapping during operation. The polished design, IP20-rated casing, and front 40-pin connector ensure seamless integration and lasting dependability in demanding environments.

Outstanding Features & Industrial Utility

The SIEMENS 6ES7 322-1BH01-0AA0 shines with extra features such as channel-specific diagnostics, support for hot swapping in RUN, and versatile Sink/Source input compatibility. This polished module is used for accurate digital signal acquisition in industrial automation and PLC systems. With LED status indicators, a 40-pin front connector, and robust isolation features, it delivers trustworthy and flexible operation, ensuring that machine downtime is minimized during maintenance or updates.

Certifications, Sample Policy, and Supply Process

SIEMENS ensures solid arrival procedures, providing certifications that affirm the modules reliability and industrial-grade build. Orders are efficiently processed upon receiving a purchase order, with prompt dispatch and careful packaging to guarantee safe arrival. Sample policies may be available for trusted partners, and supply ability remains consistent to meet ongoing demand. Upon purchase, timely delivery and professional after-sales support reassure both suppliers and end-users in every transaction.

FAQs of SIEMENS 6ES7 322-1BH01-0AA0 INPUT MODULE:

Q: How does the SIEMENS 6ES7 322-1BH01-0AA0 support hot swapping?

A: This input module is engineered to allow hot swapping, so you can replace the unit during operation without interrupting system processes, minimizing downtime in your automation setup.

Q: What are the key installation requirements for this module?

A: It requires vertical DIN rail mounting and a 40-pin front connector for easy installation. Ensure the operating temperature is between 0C and +60C for optimal performance.

Q: Where is the SIEMENS 6ES7 322-1BH01-0AA0 commonly used?

A: This module is popular in industrial automation, specifically in digital signal acquisition for PLC systems like SIMATIC S7-300, making it ideal for factory and process control environments.

Q: What process should I follow for a purchase order and delivery?

A: Submit your purchase order to the supplier or trader. Once processed, expect prompt dispatch and timely arrival of your module, ensuring a smooth procurement experience.

Q: What are the benefits of channel-specific diagnostics?

A: Channel-specific diagnostics provide targeted troubleshooting, allowing you to monitor, identify, and resolve signal issues quickly, which enhances operational efficiency and system reliability.
