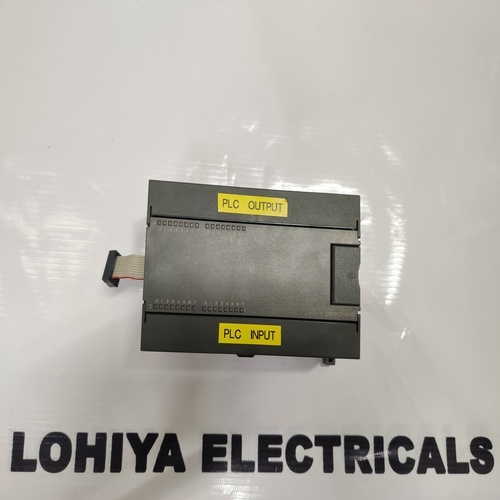

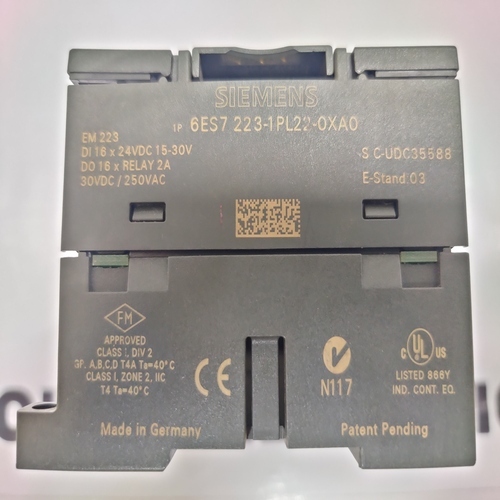

SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULES

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULES Specification

Shape
Rectangular

Feature
High-Speed Counter, Expandable I/O

Surface Finish
Matte

IP Rating
IP20

Mounting Type
DIN Rail Mounting

Connector Type
Screw Terminal Block

Humidity %
5% to 95% (non-condensing)

Efficiency
High

Insulation Material
Plastic

Operating Temperature
0C to 55C

Overheating Protection
YES

Product Type
Digital I/O Module

Application
Industrial Automation, PLC Expansion

Protection Level
IP20

Frequency (MHz)
50-60 Hz (operation frequency)

Rated Voltage
24 V DC

Energy Consumption
Approx. 2 W

Output Type
Digital

Color
Grey

Dimension (L*W*H)
100 x 80 x 40 mm

Weight
150 g

Size
Compact

Input Voltage
24 V DC

Phase
Single Phase

Connection Type
Screw Terminal

Material
Plastic, Metal

Response Time
< 0.2 ms (typical)

Programming Support
Step 7-Micro/WIN

Maximum Switching Voltage (Output)
30 V DC / 250 V AC

Isolation
Optically isolated channels

Input Points
16 DI (Digital Inputs)

Reference Standard
IEC 61131-2

Storage Temperature
-20°C to +70°C

Signal Type
Sink/Source (for inputs), Relay or Transistor (for outputs)

Module Type
Expansion DI/DO Module

Compatible PLC Series
SIEMENS S7-200

Status Indicators
LED for each I/O point

Maximum Switching Current (Output)
2 A per channel

Hot Swappable
No

Vibration Resistance
Yes (as per IEC 60068-2-6)

Output Points
16 DO (Digital Outputs)

About SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULES

Experience the sizzling performance of the SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULESa dazzling solution for first-rate industrial automation! Take advantage of instant checkout and enhance your PLC expansion needs with this majestic module, featuring 16 DI and 16 DO points, optically isolated channels, and impressive response time (<0.2 ms). Suitable for SIEMENS S7-200, it combines high efficiency, robust protection (IP20), and vibrant status indicators, all packed in a compact, matte-finished, robust rectangular casing. Ideal for demanding environments, this product ensures reliability, safety, and effortless integration into your automation systems.

Key Applications and Versatile Usage

The SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULE is crafted for seamless use in industrial automation, PLC expansion, and process control environments. Its application media include manufacturing units, automation panels, and distribution boards. Ideal for single-phase operations, the module caters to continuous, high-speed digital signal processing. With features like high-speed counters and expandable I/O, it efficiently controls and monitors industrial processes, ensuring uninterrupted performance across varied usage types and demanding applications.

Efficient Delivery and Secure Supply

Expect prompt and secure shipping for your SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULE through established FOB ports, ensuring safe arrival at your facility. Packaged with utmost care, each module is supplied in protective materials, safeguarding it against transit damage. Our sample policy supports evaluation, allowing you to verify product excellence before committing to large-scale procurement. Rely on our efficient supply chain for timely delivery and impeccable service, enhancing your automation solutions with confidence.

FAQs of SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULES:

Q: How is the SIEMENS 6ES7 223-1PL22-0XA0 DIGITAL I/O MODULE typically used in industrial automation?

A: This module is mainly used to expand the digital input and output capabilities of Siemens S7-200 PLCs, enabling real-time control and monitoring of machinery, production lines, and process equipment in industrial settings.

Q: What benefits does optically isolated channel design provide?

A: Optically isolated channels ensure electrical isolation between control circuits and field wiring, enhancing safety, protecting against surges, and improving signal integrity for reliable system performance.

Q: Where can the SIEMENS 6ES7 223-1PL22-0XA0 module be mounted?

A: This module is designed for convenient DIN rail mounting, making it easy to integrate into standard industrial control panels and automation enclosures.

Q: What process should be followed for module installation and wiring?

A: Installation involves securely fastening the module onto a DIN rail, connecting input/output signals with the screw terminal block, and following the wiring diagram according to application needs. Always ensure power is off during wiring for safety.

Q: When is it recommended to use this expansion module?

A: Use this expansion module whenever your system requires additional digital I/O points, high-speed counting, or when upgrading existing automation solutions with reliable, optically isolated interfaces.
