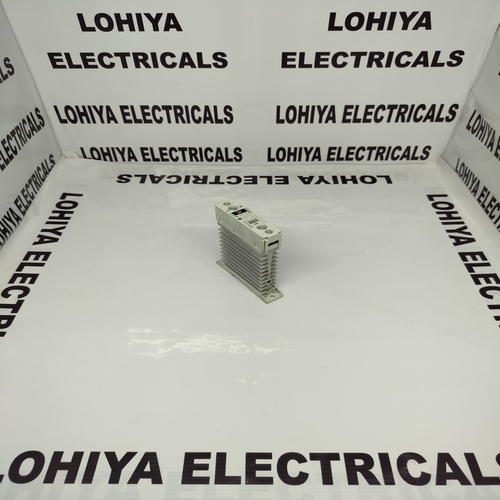

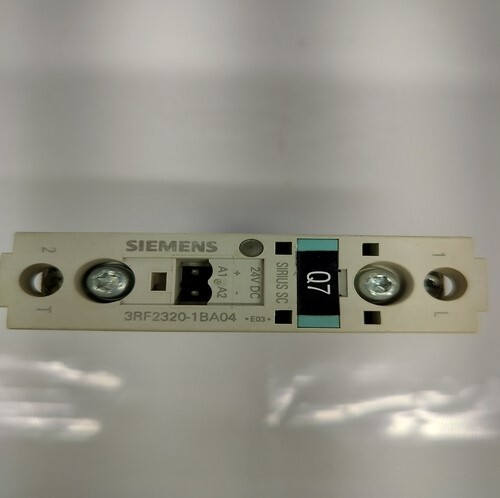

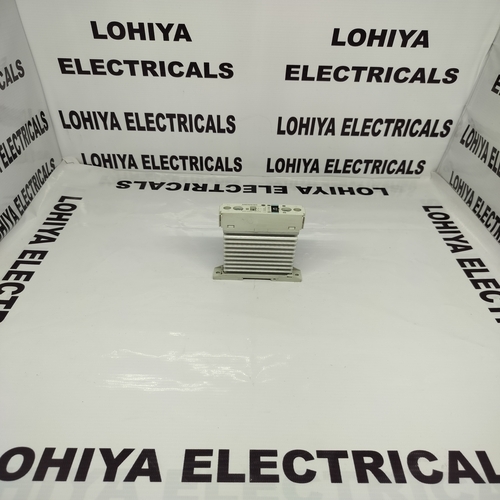

SIEMENS 3RF2320-1BA04 SOLID STATE CONTACTOR

Send Inquiry

Request To Call Back

SIEMENS 3RF2320-1BA04 SOLID STATE CONTACTOR

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 3RF2320-1BA04 SOLID STATE CONTACTOR Specification

Rated Power
5.5 kW (AC-51, 3-phase)

Current Range
0-20 A

Output Current
20 A

Rated Current
20 A

Power Factor
>0.9 (for recommended loads)

Working Temperature
-25C to +60C

Features
Zero-cross switching, LED status display, integrated heat sink, maintenance-free

Operating Temperature
-25C to +60C

Application
Motor switching, resistive load switching, heating elements, automation

Power Supply
24 V AC/DC for control, 48-600 V AC for load

Phase
3-phase

Connector Type
Screw terminal connections

Noise Level
Virtually silent operation (no moving parts)

Output Type
Relay/Solid State output

Cooling Method
Natural air cooling

Product Type
Solid State Contactor

Output Power
20 A (AC-51), 5.5 kW @ 400 V, 3-phase

Output Frequency
45-65 Hz

Input Voltage
24 V AC/DC control voltage

Voltage Protection
Integrated varistor protection

Efficiency
High switching efficiency, low power dissipation

Material
Plastic housing with electronic components

Line Regulation
<1% (typical, dependent on load)

Storage Temperature
-40C to +85C

Weight
Approx. 250 g

LED Indicators
Yes, for operation status

Response Time
<20 ms

Switching Type
Zero-cross switching

Dimensions (H x W x D)
90 mm x 45 mm x 100 mm

Control Signal Type
Logic level or AC/DC voltage

Isolation Voltage
4 kV between input and output

Minimum Load Current
100 mA

Series
3RF2 Series

Standards
IEC 60947-4-3, CE, UL, CSA

Mounting Type
DIN rail (35 mm) mountable

About SIEMENS 3RF2320-1BA04 SOLID STATE CONTACTOR

Jump on the opportunity to experience the exclusive SIEMENS 3RF2320-1BA04 Solid State Contactor-a remarkable solution setting enviable standards in automated switching. With breathtaking efficiency and virtually silent, maintenance-free operation, this contactor delivers rapid response (<20 ms) and robust isolation voltage (4 kV), ensuring uncompromising reliability. Its integrated heat sink and LED status indicator enable streamlined monitoring while zero-cross switching guarantees durability and peak performance. Pick yours now and upgrade your plant automation or resistive load switching with a product engineered for industry excellence.

Versatile Plant-Leading Performance for Industrial Applications

The SIEMENS 3RF2320-1BA04 Solid State Contactor excels in motor switching, heating elements, and resistive load management-delivering reliable automation for diverse industrial environments. Suited for manufacturing plants, process automation, and large HVAC systems, its 3-phase output and high power rating make it ideal for consistently demanding applications. Choose this solid state solution to ensure uninterrupted, efficient operations wherever performance cannot be compromised.

Certified Quality-Stock Ready for Immediate Supply

With certifications including IEC 60947-4-3, CE, UL, and CSA, the SIEMENS 3RF2320-1BA04 guarantees international standards of excellence. Our supply channels in India ensure stock is ready for rapid charge, packing, and dispatch. The contactor is securely packaged to maintain product integrity during transport, delivering reliable performance straight out of the box. Partner with us for trusted, timely solutions.

FAQ's of SIEMENS 3RF2320-1BA04 SOLID STATE CONTACTOR:

Q: How does the SIEMENS 3RF2320-1BA04 ensure safe operation?

A: The contactor features a robust 4 kV isolation voltage between input and output, integrated varistor protection, and compliance with key certifications (IEC, UL, CE, CSA), ensuring safe and reliable operation.

Q: What applications is this solid state contactor suitable for?

A: It is ideal for motor switching, managing heating elements, resistive load switching, and automation applications in industrial plants and process environments.

Q: Where can the SIEMENS 3RF2320-1BA04 be installed?

A: This model is mountable on standard 35 mm DIN rails, making it convenient for control panels and automation cabinets in manufacturing and plant settings.

Q: When should I choose a solid state contactor over an electromechanical one?

A: Choose the SIEMENS 3RF2320-1BA04 when you need virtually silent operation, minimal maintenance, fast response, and long-term durability, especially in demanding or repetitive switching applications.

Q: What makes the operation of this contactor particularly efficient?

A: Zero-cross switching technology, high switching efficiency, low power dissipation, and a natural air-cooled integrated heat sink make it both energy-efficient and long-lasting.
