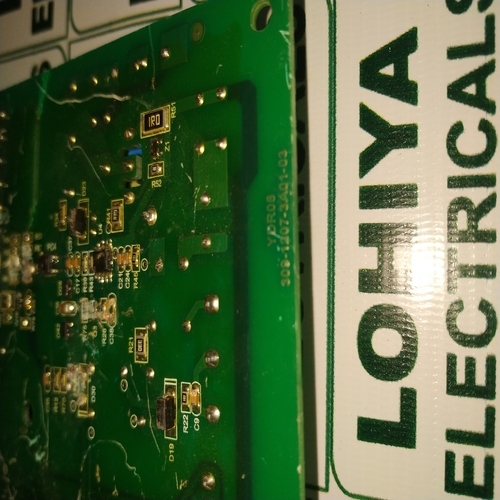

SIEMENS 309-1207-3A01-03 PCB CARD

Get a Price/Quote

SIEMENS 309-1207-3A01-03 PCB CARD Specification

Protection Class
Class II

Operating Voltage
24V DC

Panel Type
Plugged PCB Module

Protection Level
IP20

Features
High reliability, Modular design, Easy installation

Thickness
1.6 mm

Control System
Programmable Logic Controller (PLC)

Base Material
Epoxy Glass Fabric

Rated Insulation Voltage
500V

Current Rating
1.6A

Connectivity Type
Edge Connector

Rated Operation Voltage
24V DC

Components
Integrated Circuits, Resistors, Capacitors, Relays

Rated Current
1.6A

Way
Multi-way (multi-channel)

Cooling System
Natural Air Cooling

Product Type
PCB Controller Card

Material
Glass Fiber Epoxy (FR4)

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
IEC/EN 61131

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
1.6A

Dimension (L*W*H)
162 mm x 110 mm x 20 mm

Application
Industrial Automation

IP Rating
IP20

Compliance
RoHS Compliant

Mounting Type
Rack mounting

Typical Use Case
Process Control Systems

Model Number
309-1207-3A01-03

Operating Temperature Range
0°C to +60°C

Storage Temperature Range
-25°C to +85°C

Weight
Approx. 250g

SIEMENS 309-1207-3A01-03 PCB CARD About

Buy Online the SIEMENS 309-1207-3A01-03 PCB CARDa sublime choice in industrial automation. This first-class, RoHS-compliant module features enlightened design with a modular structure for easy rack mounting. With a tough glass fiber epoxy body finished in HASL and protected to IP20 standards, this featured PCB card operates flawlessly between 0C to +60C. Ideal for process control systems, it handles multi-way connections at 1.6A and 24V DC. Add to Cart now for reliable, premium performance in any PLC-driven environment.

Seamless Application in Process Control Systems

The SIEMENS 309-1207-3A01-03 PCB CARD is tailored for use in specialized process control systems within industrial automation. Its modular, rack-mounted design and edge connector facilitate straightforward installation. Incorporating integrated circuits, relays, and capacitors, it ensures consistent performance under varied operational demands. Best suited for programmable logic controllers (PLC), its multi-channel capability and high reliability make it an enlightened choice for professionals seeking efficiency in demanding environments.

Certifications & Swift Delivery

Stock Ready for immediate dispatch, the SIEMENS 309-1207-3A01-03 PCB CARD boasts RoHS compliance and adheres to IEC/EN 61131 standards, reflecting its premium quality. Enjoy rapid delivery and flexible payment terms for convenient procurement. Each order is securely handled and delivered promptly, supporting your project timelines and ensuring confidence in every transaction.

FAQs of SIEMENS 309-1207-3A01-03 PCB CARD:

Q: How does the SIEMENS 309-1207-3A01-03 PCB CARD enhance industrial automation systems?

A: The card offers modular, multi-channel architecture and is designed for seamless integration with PLCs, significantly increasing system reliability and efficiency in process control tasks.

Q: What is the recommended application method for installing this PCB card?

A: The recommended method is rack mounting using an edge connector, ensuring a secure fit and easy accessibility for maintenance and system upgrades.

Q: When can I expect delivery after placing my order online?

A: With our stock ready, orders are processed and delivered promptly, typically within the estimated times provided at checkout, depending on your location.

Q: Where is this PCB card most suitably used?

A: It is most suitable for process control systems and industrial automation setups requiring high reliability and compliance with stringent safety and operational standards.

Q: What certifications does the SIEMENS 309-1207-3A01-03 PCB CARD have?

A: This model holds RoHS compliance and meets IEC/EN 61131 standards, confirming its alignment with international safety and environmental requirements.

Q: What benefits does the surface finish HASL offer in this PCB card?

A: HASL surface finish ensures excellent solderability, resistance to oxidation, and durability, supporting prolonged operational life and consistent connectivity.
