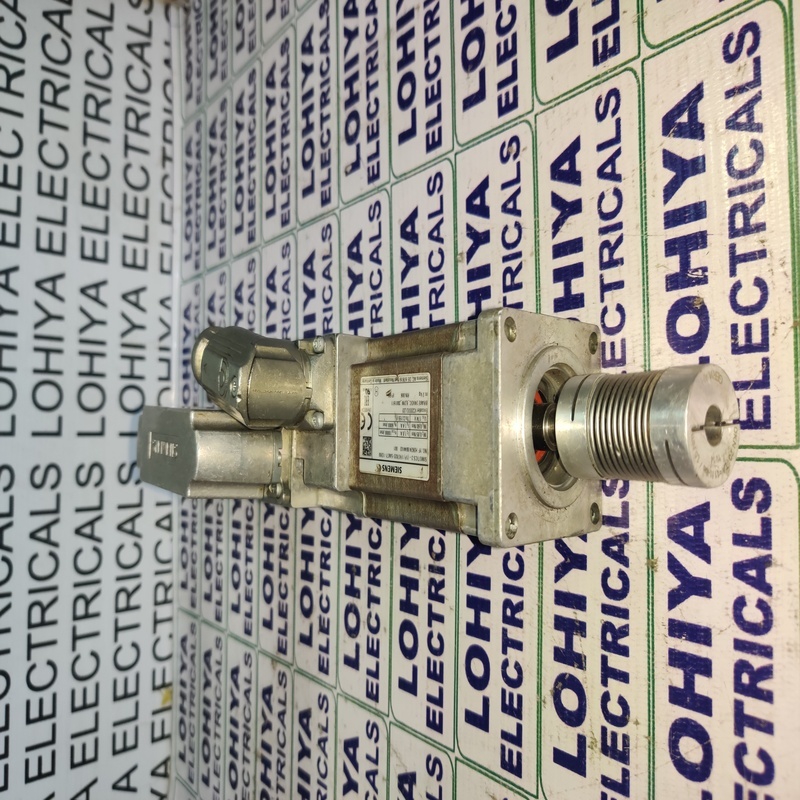

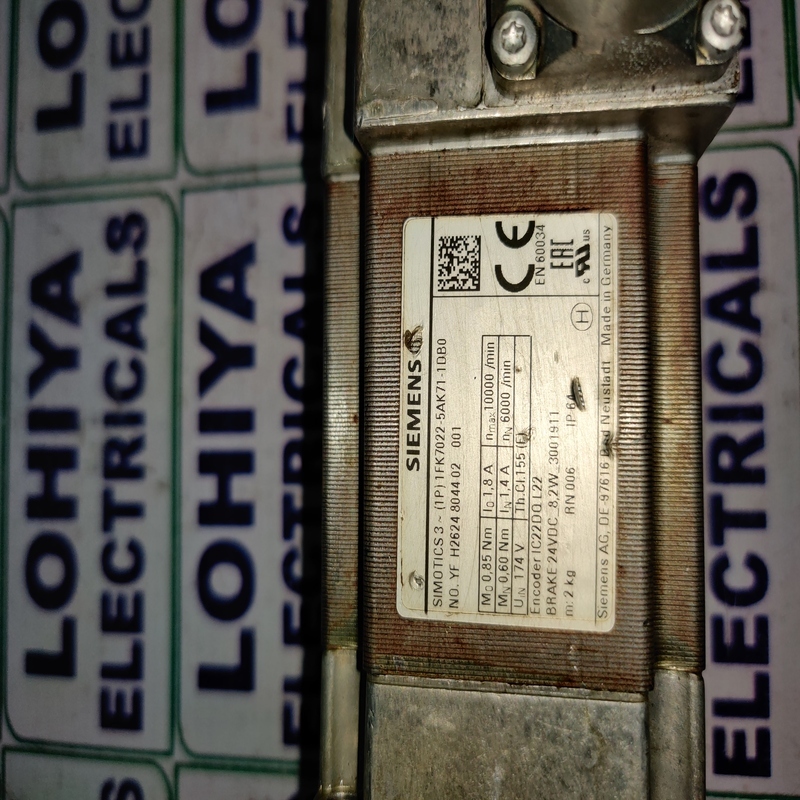

SIEMENS 1FK7022-5AK71-1DB0 SERVO MOTOR

Get a Price/Quote

SIEMENS 1FK7022-5AK71-1DB0 SERVO MOTOR Specification

Rated Current
2.2 A

Components
Rotor, Stator, Shaft, Feedback Encoder

Control System
Servo Controlled via Drive

Cooling System
Natural Convection

Protection Level
IP65

Current Rating
2.4 A

Thickness
Compact Design (approx. 70 mm)

Rated Insulation Voltage
500 V

Connectivity Type
Connector with Power & Encoder Signal

Panel Type
Motor Body Casing

Way
3-phase

Cover Material
Aluminum

Base Material
Alloy Steel

Rated Operation Voltage
400 V AC

Features
High Dynamic Response, Low Moment of Inertia, Maintenance-Free, Encoder Feedback

Protection Class
Class F

Operating Voltage
380-480 V AC

Product Type
Servo Motor

Material
High-grade alloy steel

Surface Finish
Anodized & Powder Coated

Standard
IEC/EN 60034

Surface Color
Black & Silver

Rated Voltage
400 V

Frequency (MHz)
50/60 Hz

Maximum Output Current
3.5 A

Dimension (L*W*H)
Approx. 144 mm 53 mm 92 mm

Application
Industrial Automation, CNC Machines, Robotics

IP Rating
IP65

Shaft Diameter
11 mm

Max Speed
6000 rpm

Rated Power Output
0.2 kW

Mounting Type
Flange Mount

Ambient Temperature Range
0C to +40C

Brake
Without Brake (optional brake available)

Model Number
1FK7022-5AK71-1DB0

Rotor Moment of Inertia
0.12 10 kgm

Bearing Life
>20,000 hours

Torque (Rated/Peak)
0.64 Nm / 2.24 Nm

Encoder Type
Incremental Encoder, 2048 ppr

About SIEMENS 1FK7022-5AK71-1DB0 SERVO MOTOR

Experience the transcendent performance of the SIEMENS 1FK7022-5AK71-1DB0 SERVO MOTOR, engineered for formidable reliability and versatility in demanding industrial environments. This select servo motor features a rated power output of 0.2 kW, a majestic torque range, and formidable peak performance. Crafted from high-grade alloy steel with an anodized, powder-coated finish, its compact yet robust design offers competitive pricing for premium quality. With an ephemeral need for maintenance and a protection rating of IP65, this servo solution is fit for automation applications where precision and longevity converge.

Material Features and Advanced Engineering

The SIEMENS 1FK7022-5AK71-1DB0 Servo Motor is constructed from high-grade alloy steel, exuding strength and resilience. Its compact form (approx. 70 mm thickness) incorporates a flange mount and anodized surface for enduring performance. Formidable engineering ensures high dynamic response and low moment of inertia, making it ideal for CNC machines, robotics, and industrial automation. Additional features such as IP65 protection, maintenance-free operation, and encoder feedback epitomize its premium status, promising reliable and efficient service life.

Payment Terms, Supply Capability & Export Markets

We offer this servo motor with competitive payment terms, tailored to premium domestic and international markets. Supply ability remains consistent, ensuring timely delivery and secure packaging for seamless integration into your operations. SIEMENS 1FK7022-5AK71-1DB0 is sought after in diverse export markets and maintains a significant presence in domestic markets as well. Our commitment to quality ensures that each unit arrives safely and ready for majestic automation tasks wherever precision and reliability are essential.

FAQs of SIEMENS 1FK7022-5AK71-1DB0 SERVO MOTOR:

Q: How does the SIEMENS 1FK7022-5AK71-1DB0 servo motor ensure reliable operation in challenging environments?

A: With its IP65 protection rating, high-grade materials, and robust design, the servo motor is built to withstand dust, moisture, and other industrial hazards, ensuring reliable performance in demanding settings.

Q: What are the main applications for this servo motor?

A: It is ideally suited for industrial automation, CNC machines, and robotics due to its high dynamic response, low moment of inertia, and maintenance-free operation.

Q: When should optional brake systems be considered for this motor?

A: Optional brake systems are recommended when your application requires precise holding torque during machine shutdowns or for safety-critical operations where load holding is vital.

Q: Where can I source this servo motor for my industrial needs?

A: You can acquire the SIEMENS 1FK7022-5AK71-1DB0 servo motor through authorized suppliers and traders catering to both domestic and export markets.

Q: What benefits does the incremental encoder with 2048 ppr provide?

A: The integrated incremental encoder delivers accurate position and speed feedback, enhancing the control systems precision and enabling seamless integration into automation solutions.
