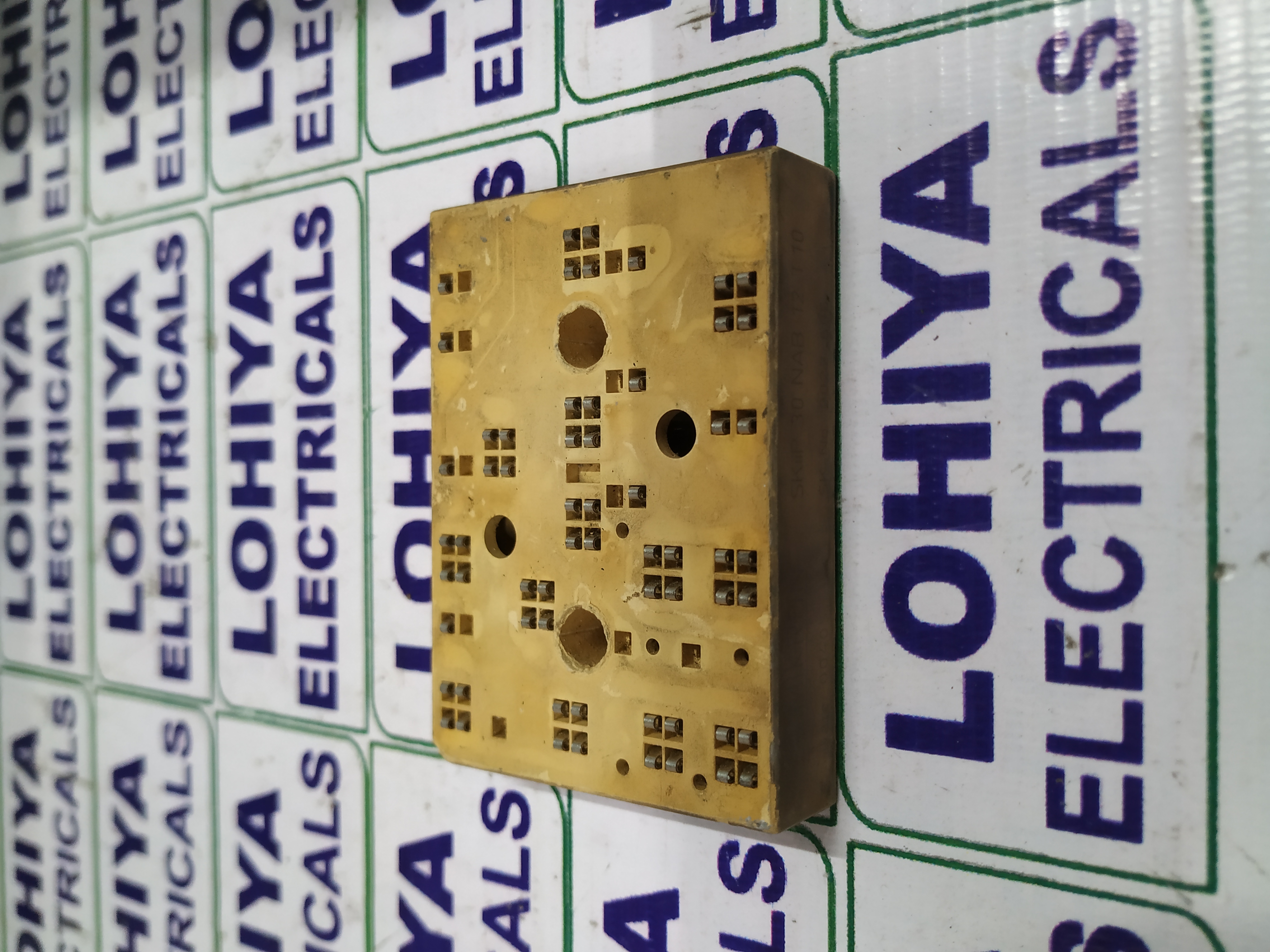

SEMIKRON SKIIP 30 NAB 12 T10 IGBT

Get a Price/Quote

SEMIKRON SKIIP 30 NAB 12 T10 IGBT Specification

Current
30A

Switch Type
IGBT Module

Features
SKiiP technology, High efficiency, Integrated driver circuit, Compact design

Protection Level
Standard (consult datasheet for details)

Installation Type
PCB Mount / Direct Mount

Frequency
up to 20 kHz

Output
IGBT (Insulated Gate Bipolar Transistor)

Connectivity Type
Screw Terminal

Phase
Three Phase

Mounting Type
Screw Mount

Usage & Applications
Industrial Automation, Power Electronics, Motor Control, Renewable Energy

Product Type
IGBT Module

Operating Temperature
-40C to +150C

Working Temperature
-40C to +150C

Application
Industrial Motor Drives, Inverters, Power Supplies

Supply Voltage
1200V

Dimension (L*W*H)
94 mm x 45 mm x 30 mm (approx.)

Weight
Approx. 200 g

Cycle Capability
High cycling capability for industrial duty

Gate Voltage (Vge)
15V

Package Type
Modular SKiiP

Model Number
SKIIP 30 NAB 12 T10

Collector-Emitter Voltage (Vce)
1200V

Technology
SKiiP (SEMIKRON Intelligent Integrated Power) technology

Thermal Resistance
Low Rth(j-c), Excellent heat dissipation

Isolation Voltage
Up to 4000V (consult official datasheet)

Control Interface
Optically isolated

Integrated Features
Integrated Gate Driver, Protection elements

Collector Current (Ic)
30A

Commutation
Fast switching capability

About SEMIKRON SKIIP 30 NAB 12 T10 IGBT

Unlock a terrific discount on the SEMIKRON SKIIP 30 NAB 12 T10 IGBT module, an inestimable addition to your industrial automation solutions. Select this laureate of power electronics, boasting SKiiP (Intelligent Integrated Power) technology, integrated gate driver, and comprehensive protection features. With a robust 1200V Vce, 30A collector current, fast switching capability, and high cycling endurance, grab yours today for reliable performance in motor drives, inverters, and power supplies. Its compact modular design and excellent heat dissipation guarantee seamless installation and long-term durability.

Industrial-Grade Versatility and Application

The SEMIKRON SKIIP 30 NAB 12 T10 IGBT is extensively used by automation engineers and manufacturers for industrial motor control, renewable energy projects, and power supply systems. Ideal for high-performance three-phase installations, its application method is simpledirect PCB or screw mounting. This modules compact size, combined with optically isolated control, makes it an indispensable component for demanding environments.

Sample Availability and Global Supply Chain

Samples of SEMIKRON SKIIP 30 NAB 12 T10 IGBT can be requested prior to a purchase order for quality assurance. We serve main export markets across Asia, Europe, and North America and guarantee timely delivery through trusted transport services. With a substantial supply ability, our products are shipped securely to ensure rapid fulfillment and customer satisfaction for all industrial requirements.

FAQs of SEMIKRON SKIIP 30 NAB 12 T10 IGBT:

Q: How does the SEMIKRON SKIIP 30 NAB 12 T10 IGBT enhance industrial automation systems?

A: Its laureate SKiiP technology, integrated driver circuit, and fast switching capability enable efficient control and power conversion in motor drives, inverters, and automation systems, optimizing both reliability and performance.

Q: What are the recommended installation methods for this IGBT module?

A: The module supports PCB mount or direct screw mounting, providing flexibility for various industrial setups and ensuring secure connectivity via screw terminals for three-phase applications.

Q: When should I consider using SEMIKRON SKIIP 30 NAB 12 T10 IGBT in my project?

A: Select this module when high efficiency, rapid switching, and robust cycling capability are required for demanding industrial projects or renewable energy systems.

Q: Where can I request samples of the SKIIP 30 NAB 12 T10 IGBT?

A: You can request samples by contacting our supplier or trader directly before placing a purchase order, ensuring that the product meets your applications requirements.

Q: What is the process for purchasing and delivery of this IGBT module?

A: Submit a purchase order and choose your preferred transport services. We will arrange secure delivery to your location, supported by efficient logistics that prioritize timely fulfillment.

Q: What are the usage benefits of this IGBT modules integrated features?

A: Integrated gate driver and protection elements simplify installation and enhance operational safety, while the compact SKiiP design improves heat dissipation and long-term durability.
