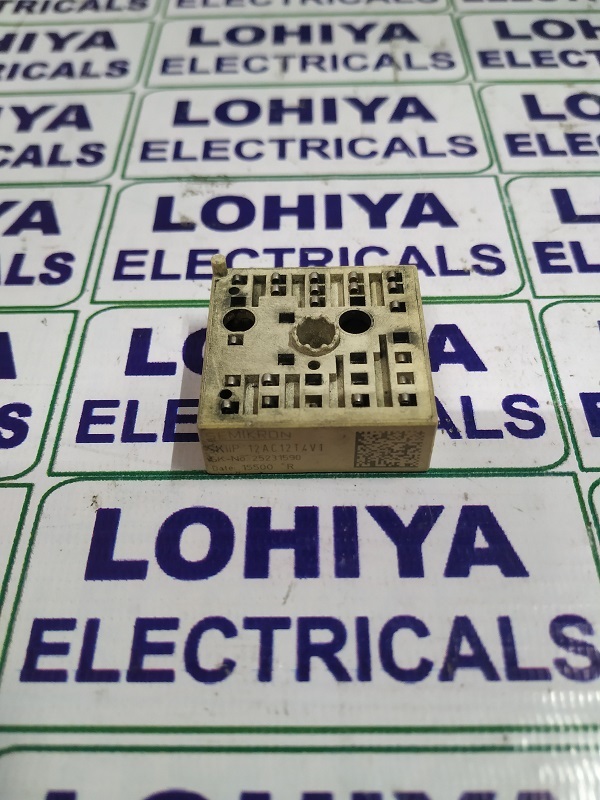

SEMIKRON SKIIP 12AC12T4V1 IGBT

Get a Price/Quote

SEMIKRON SKIIP 12AC12T4V1 IGBT Specification

Output
1200V (Collector-Emitter Voltage)

Switch Type
IGBT

Mounting Type
Screw Mount

Connectivity Type
Screw Terminal

Installation Type
Module Mount

Current
12A

Phase
Three Phase

Frequency
Up to 20 kHz

Protection Level
Built-in protection features

Features
Low Saturation Voltage, High Power Density, Compact Design, Integrated Driver and Protection

Usage & Applications
Power Electronics, Motor Drives, Renewable Energy Systems, Industrial Automation

Product Type
IGBT Module

Operating Temperature
-40C to +125C

Working Temperature
-40C to +125C

Input
Control Signal

Application
Industrial Drives, Inverters, Power Supplies, Motor Control

Supply Voltage
1200V

Dimension (L*W*H)
89 mm x 62 mm x 15 mm

Weight
Approx. 200g

Short Circuit Protection
Yes

Isolation Voltage
2500V AC

Reverse Voltage (Diode)
1200V

Case Temperature (Tc)
Max. 125°C

Switching Time
Rise/Fall Time <200ns

IGBT Technology
Trench Field Stop

Thermal Resistance
0.42K/W (junction to case)

Configuration
6-Pack (Three Phase Bridge)

VCE(sat) (Collector-Emitter Saturation Voltage)
2.05V typ. at 25°C

Product Series
SEMITRANS SKIIP 12AC12T4V1

Gate Trigger Voltage
15V

Baseplate Material
Copper

Module Technology
Intelligent Power Module (IPM)

About SEMIKRON SKIIP 12AC12T4V1 IGBT

Unlock grandiose performance with the SEMIKRON SKIIP 12AC12T4V1 IGBT, a hot-selling Intelligent Power Module (IPM) acclaimed for its advanced SEMITRANS Series technology. Famed for its finest reliability and rapid switching capability (<200ns), this 6-pack three-phase bridge module is ideal for high-demand power electronics, motor drives, and renewable energy systems. With robust 1200V reverse voltage, impressive isolation, and built-in protection, shop now to experience superior efficiency, compact design, and effortless integrationmaking it the go-to solution for industrial automation and power applications.

Versatile Commercial & Industrial Usage

The SEMIKRON SKIIP 12AC12T4V1 IGBT is engineered for a broad spectrum of commercial and industrial applications. Unlock its full potential in motor control, industrial drives, reliable power supplies, and renewable energy systems. Renowned for integrating low saturation voltage and high power density, it is the preferred choice for advanced automation and demanding power electronics. Its built-in protection and compact design enable seamless installation for manufacturers, traders, and engineers looking for efficient, scalable solutions.

Efficient Delivery, Sample Support, & Global Certifications

We offer prompt delivery times for the SEMIKRON SKIIP 12AC12T4V1 IGBT to minimize your project expenditure. Samples may be handed over upon request for qualifying orders. This module comes certified to worldwide standards, ensuring quality, safety, and peak performance in every application. Depend on us for reliable supply and professional after-sales support, enabling seamless integration into global commercial and industrial systems.

FAQs of SEMIKRON SKIIP 12AC12T4V1 IGBT:

Q: How is the SEMIKRON SKIIP 12AC12T4V1 IGBT commonly used in industrial settings?

A: This IGBT module is predominantly employed in industrial automation, motor drives, renewable energy systems, and power supplies due to its high efficiency, integrated protection features, and compact design.

Q: What commercial benefits does the SKIIP 12AC12T4V1 provide for power electronics?

A: It offers low saturation voltage, high power density, and integrated driver and protection mechanisms, ensuring superior operational reliability and efficiency for commercial and industrial power electronic applications.

Q: When can I expect delivery of the SEMIKRON SKIIP 12AC12T4V1 after placing an order?

A: Delivery times are prompt, subject to current inventory and location. For precise lead times, please inquire directly so we can tailor our offer to your specific scheduling requirements.

Q: Where can companies request a sample of this IGBT module?

A: Samples may be requested via our sales contact channels. They are typically handed over subject to eligibility and order volume, allowing for testing before large-scale procurement.

Q: What process should I follow to install the SKIIP 12AC12T4V1 IGBT module?

A: The module is designed for screw mount installation with screw terminals for secure connectivity. It requires adherence to standard industrial safety and installation guidelines for optimal performance.

Q: How does built-in protection enhance the usage of this IGBT module?

A: Its integrated protection features safeguard against short circuits, excessive voltage, and thermal overloads, thereby prolonging component life and supporting uninterrupted function in critical systems.
