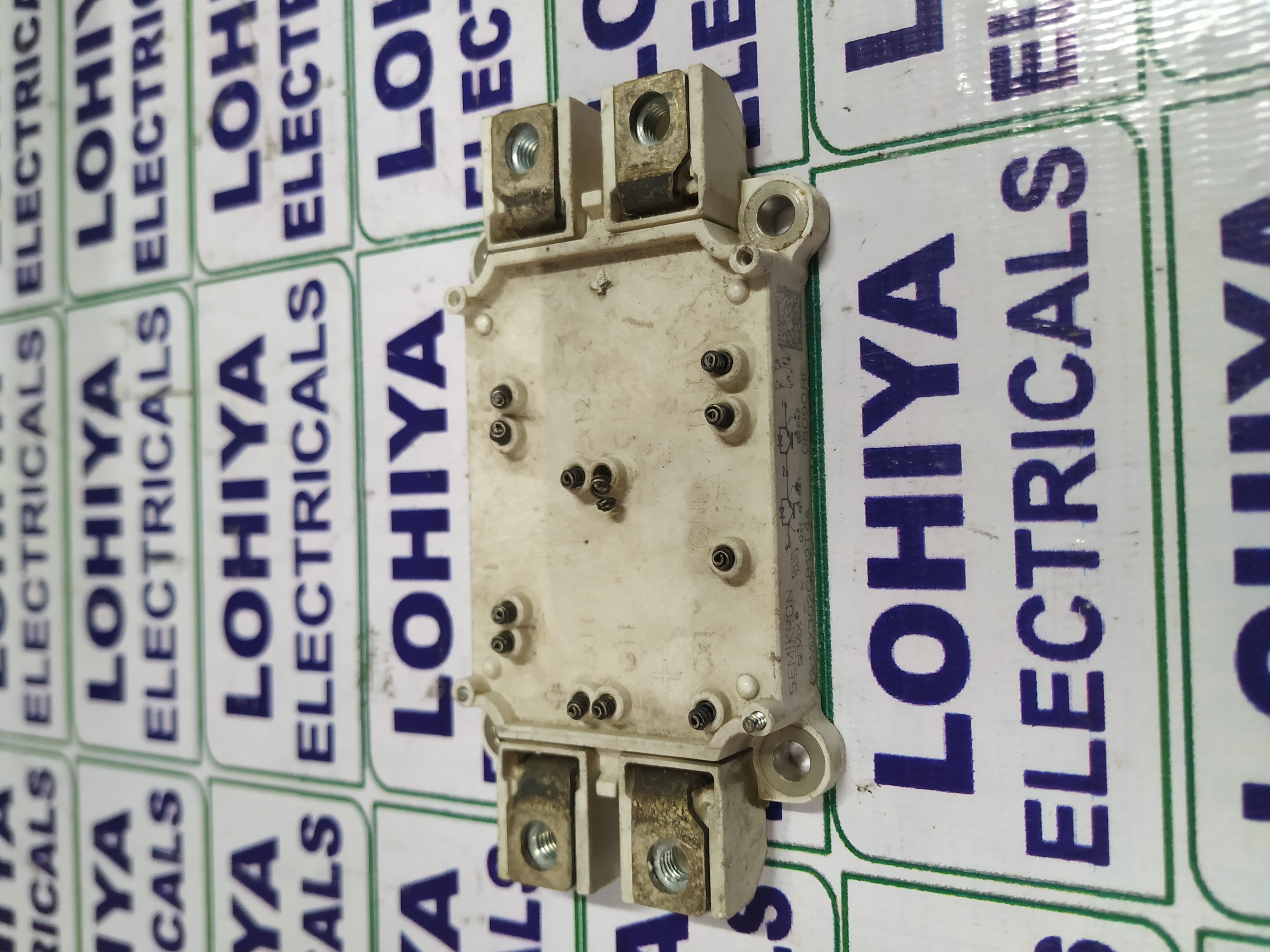

SEMIKRON SEMIX302GB112T4S IGBT

Get a Price/Quote

SEMIKRON SEMIX302GB112T4S IGBT Specification

Switch Type
IGBT (Isolated Gate Bipolar Transistor)

Mounting Type
Module/Screw Mount

Usage & Applications
AC Drives, UPS, Renewable Energy Systems

Current
302A

Installation Type
Screw Mount

Output
IGBT Switching

Features
Low saturation voltage, Fast switching, High reliability

Connectivity Type
PCB solder or press-fit pins

Protection Level
Insulated baseplate

Phase
Three Phase

Product Type
IGBT Module

Operating Temperature
-40C to +150C

Working Temperature
-40C to +150C

Input
DC

Application
Industrial Motor Drives, Inverters, Power Supplies

Supply Voltage
1200V

Dimension (L*W*H)
179 x 106 x 34 mm

Weight
Approximately 760g

Series
SEMIX302GB112T4S

Compliance
RoHS

Package
SEMIX module

Integrated Freewheeling Diode
Yes

Short Circuit Safe Operation
Yes

Isolation Voltage
4000V AC (rms) between terminals and heatsink

Configuration
Six-Pack (Three Phase Bridge)

Typical Switching Frequency
Up to 20 kHz

Gate Emitter Voltage (Vge)
±20V max

Collector-Emitter Voltage (Vces)
1200V

Technology
Trench Field-Stop IGBT

Collector Current (Ic)
302A
