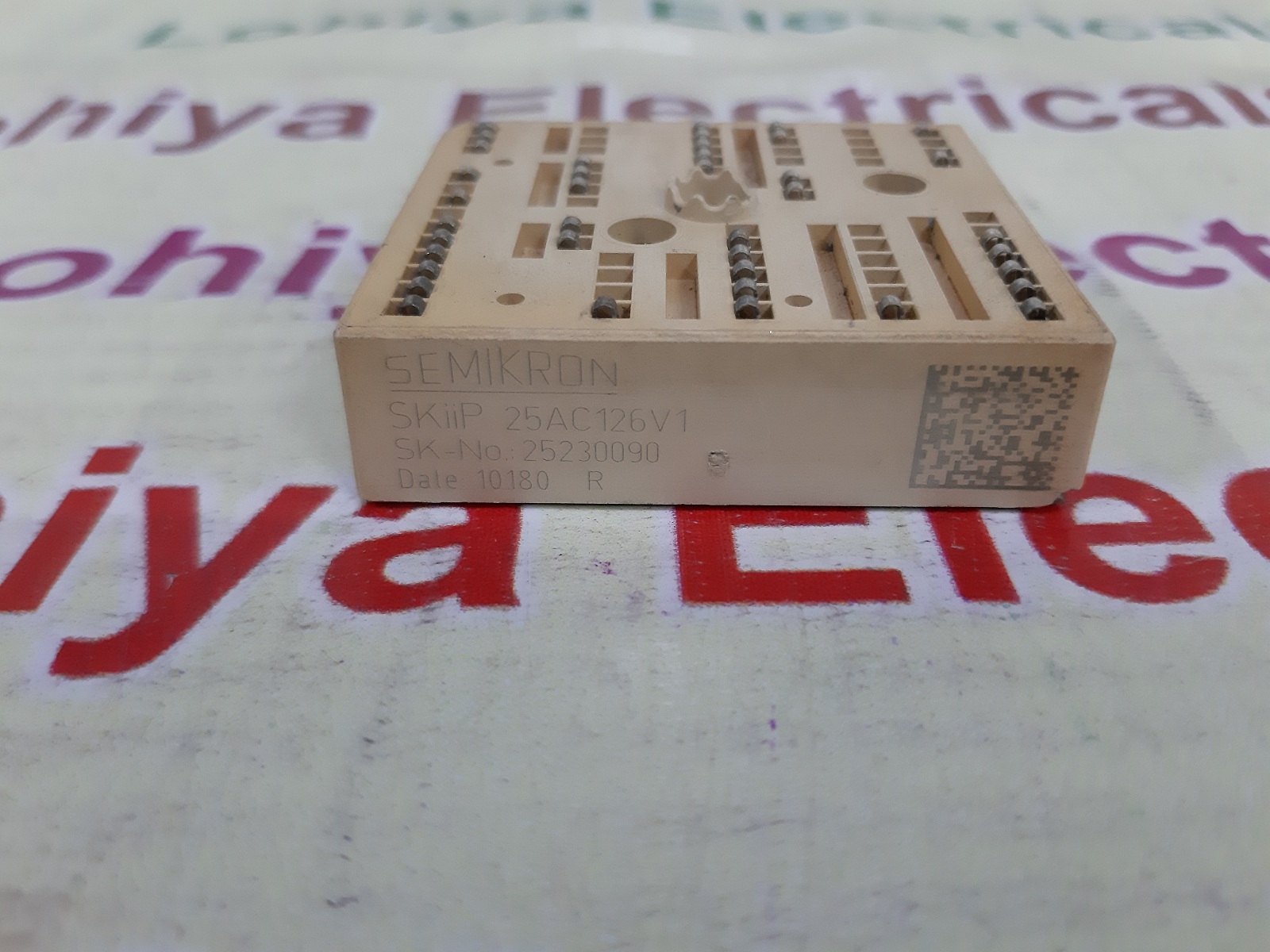

SEMIKRON IGBT

Get a Price/Quote

SEMIKRON IGBT Specification

Installation Type
Screw Mount

Pole Type
Single Pole

Features
High Efficiency, Low Saturation Voltage, Robust Construction

Mounting Type
Chassis Mount

Connectivity Type
Screw Terminals

Usage & Applications
Industrial Automation, Renewable Energy, Motor Control

Phase
Three Phase

Switch Type
IGBT

Output
Power Module

IP Rating
IP20

Frequency
50/60 Hz

Protection Level
Overcurrent & Thermal Protection

Current
50A

Product Type
IGBT Module

Operating Temperature
-40°C to +150°C

Working Temperature
-40°C to +150°C

Input
Electrical

Application
Motor Drives, Inverters, UPS, Power Conversion

Supply Voltage
1200V

Accuracy
High Switching Accuracy

Dimension (L*W*H)
131mm x 61mm x 30mm (typical for SKM50GB123D)

Weight
~430g

Model Number
SKM50GB123D

Gate Voltage
±15V

Typical Power Loss
Low

Storage Temperature
-40°C to +125°C

Isolation Voltage
2500V AC (per minute)

Compatible Standards
IEC 60747-2

Switching Frequency
Up to 20kHz

Short Circuit Protection
Yes

RoHS Compliance
Yes

Package
Module

SEMIKRON IGBT About

Discover the SEMIKRON IGBT SKM50GB123D Modulenow at a reduced price for a limited time. Get it now to experience unparalleled performance with a robust 50A, 1200V, three-phase module featuring high switching accuracy and low power loss. This lavish paragon of power electronics offers overcurrent and thermal protection, RoHS compliance, and exceptional isolation voltage (2500V AC), ensuring safe and efficient motor drives, UPS, inverters, and more. Select this module for industrial automation or renewable energyinstall easily via screw mount and enjoy IP20 protection and reliable operation from -40C to +150C.

Versatile Industrial Applications

The SEMIKRON SKM50GB123D IGBT module stands as an excellent choice for both specific applications, such as motor control, inverters, and UPS systems, and a broad range of general industrial use. Its robust construction allows it to operate on various surfaces and in challenging environments. Frequently used in industrial automation and renewable energy projects, it is ideal for motor control and power conversion, guaranteeing efficient output across numerous sectors.

Clear Payment, Swift Delivery, and Sample Offers

We offer transparent payment terms and highly competitive charges for the SEMIKRON IGBT SKM50GB123D. The outlay is made straightforward, with a range of accepted payment methods to suit your business. Delivery is prompt, ensuring your modules arrive when you need them. Looking to evaluate before purchase? Samples are available on request, allowing you to experience this superior semiconductors benefits before committing to a full order.

FAQs of SEMIKRON IGBT:

Q: How do I install the SEMIKRON SKM50GB123D IGBT module?

A: Installation is straightforward; the module features a screw mount and screw terminal connectivity, designed for quick integration into industrial chassis for motor drives, inverters, or power systems.

Q: What are the primary applications for this IGBT module?

A: The SKM50GB123D is mainly used in industrial automation, motor control, renewable energy, power conversion systems, UPS, and inverters, delivering high efficiency and robust protection.

Q: What protection features does this IGBT module offer?

A: This SEMIKRON IGBT provides overcurrent and thermal protection, coupled with an IP20 rating for added safety during industrial application and high-stress operating conditions.

Q: When can I expect delivery after placing my order?

A: Delivery timelines are prompt and depend on your location and order size. Detailed delivery schedules are provided during the order process to ensure transparency and timely receipt.

Q: What is the benefit of high switching accuracy in this module?

A: High switching accuracy ensures efficient, precise operation within power conversion and motor control systems, reducing energy loss and improving overall reliability.

Q: Where can I request a product sample?

A: Samples of the SKM50GB123D IGBT module are available upon request through our sales teamfeel free to reach out to us to discuss your requirements and testing needs.
