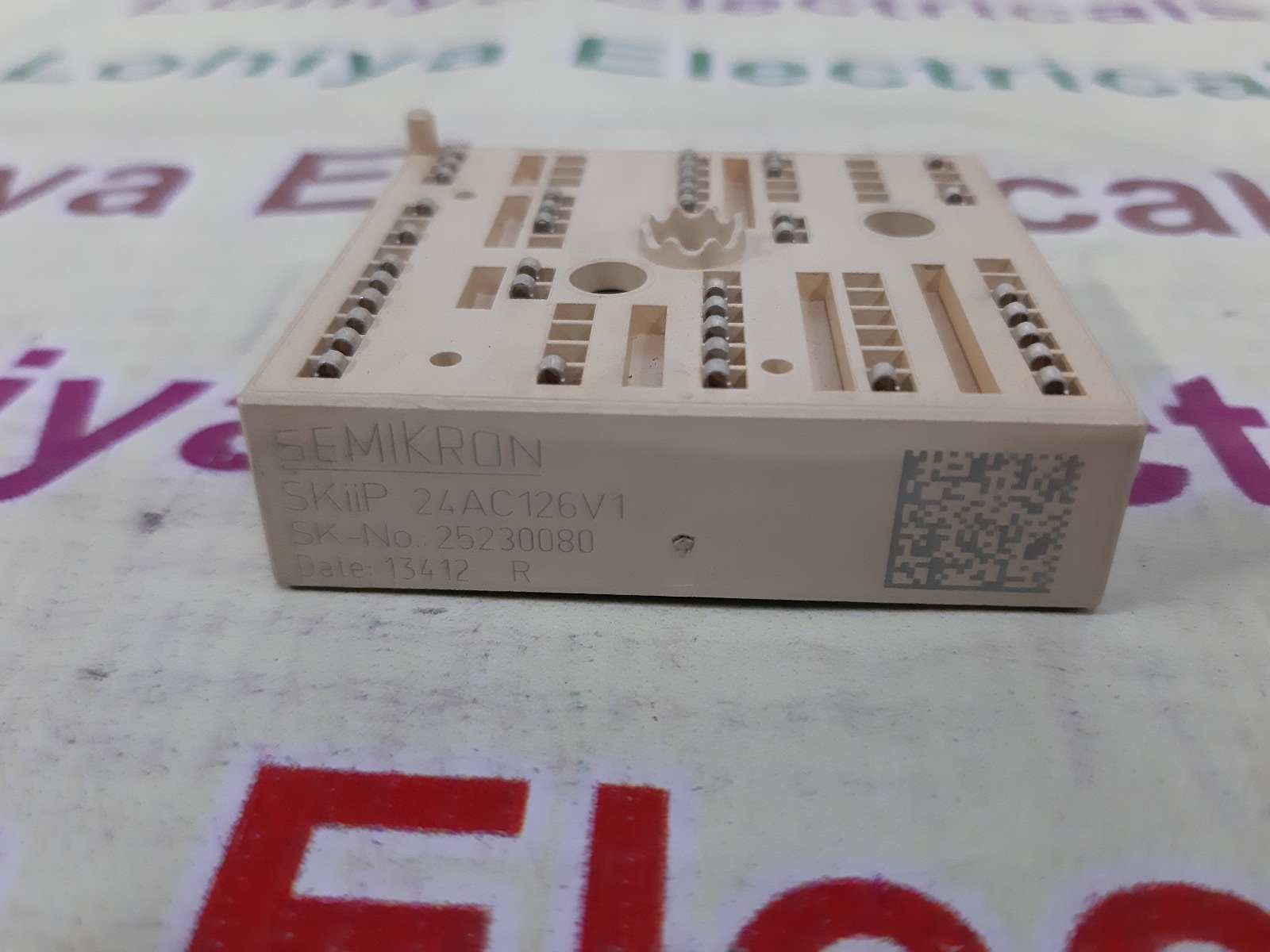

SEMIKRON IGBT

Get a Price/Quote

SEMIKRON IGBT Specification

Phase
Three Phase

Protection Level
Insulated housing

Frequency
Up to 20 kHz

Features
Fast switching, robust design, low losses

Mounting Type
Screw Mounted

Output
DC/AC

Installation Type
Panel Mount

IP Rating
IP20

Connectivity Type
Screw Terminal

Current
50A

Switch Type
Electronic

Usage & Applications
Used in industrial automation, UPS systems

Pole Type
Dual

Product Type
IGBT Module

Operating Temperature
-40C to +125C

Working Temperature
Up to 125C

Input
DC

Application
Power conversion, Inverters, Motor Drives

Supply Voltage
600V

Accuracy
High switching accuracy

Dimension (L*W*H)
Approx. 60mm x 120mm x 30mm

Weight
Approx. 250g

Collector-Emitter Voltage
1200V

Cooling Method
Forced air or heat sink required

Model
SKM50GB12T4

Response Time
Fast response <1s

Maximum Junction Temperature
150C

RoHS Compliance
Yes

Power Dissipation
250W (max)

Storage Temperature
-55C to +150C

Package Type
Standard industrial module

Gate Threshold Voltage
5V - 6V

Isolation Voltage
2500V AC

About SEMIKRON IGBT

The SEMIKRON IGBT Model SKM50GB12T4 is a top-rated industrial module, widely recognized for its redoubtable performance and highly recommended by automation virtuosos. Boasting a remarkable switching speed of less than 1s and capable of handling a collector-emitter voltage up to 1200V, this RoHS-compliant module supports forced air or heat sink cooling. Its robust insulated housing, IP20 rating, and screw-mount installation assure secure operation in inverter or motor drive systems. Designed for high switching accuracy, it operates reliably at up to 50A and 250W with a fast, efficient electronic switch configurationmaking it the product of choice for power conversion applications on sale now.

SEMIKRON IGBT: Versatile Applications & Advanced Features

Beyond power conversion and motor drives, the SKM50GB12T4 excels in UPS systems, industrial automation, and frequency-controlled environments. Key features include a dual pole structure, fast switching response, and low power loss. Its special attributes, such as a standard industrial package, high isolation voltage (2500V AC), and insulated housing, make it a durable and adaptable solution for complex demanding setups, ensuring optimum functionality even in harsh operating conditions.

SEMIKRON IGBT: Global Reach and Reliable Delivery

SEMIKRON IGBT modules are offered across main export markets including Europe, Asia, and North America. With recognized certifications and compliance, each unit ensures trustworthy quality. Customers can expect competitive outlay options and rapid delivery times, typically handed over within days depending on location and order size. This efficiency streamlines projects and strengthens your supply chain reliability, making it a preferred product among electronic component suppliers and traders worldwide.

FAQs of SEMIKRON IGBT:

Q: How can the SEMIKRON IGBT SKM50GB12T4 be used in industrial automation systems?

A: The SEMIKRON IGBT SKM50GB12T4 is designed for integration into industrial automation as it enables precise control of power conversion, inverters, and motor drives, supporting high switching accuracy and efficiency in demanding environments.

Q: What special features distinguish the SEMIKRON SKM50GB12T4 module?

A: This module is equipped with fast switching (sub 1s response), robust insulated housing (IP20), high isolation voltage (2500V AC), and low power losses, ensuring reliable and efficient operation under varied industrial conditions.

Q: When should forced air or a heat sink be employed with this IGBT module?

A: Forced air or heat sink cooling should be used whenever operating at higher currents or continuous duty, to maintain junction temperatures within safe limits and maximize module lifespan.

Q: Where is the SEMIKRON SKM50GB12T4 typically installed?

A: The module is designed for panel mounting and is commonly installed in power electronic cabinets, inverter housings, or any enclosure supporting three-phase industrial applications.

Q: What is the process for connecting the IGBT module?

A: The SKM50GB12T4 uses screw terminals for secure connectivity; ensure all connections are tightly fastened and compatible with the input/output requirements of your specific DC/AC setup for optimal performance.

Q: What are the benefits of using this top-rated IGBT in power systems?

A: Users benefit from highly reliable switching, remarkable heat tolerance, reduced power losses, and compliance with RoHS standards, making it a trusted choice for critical power conversion systems.
