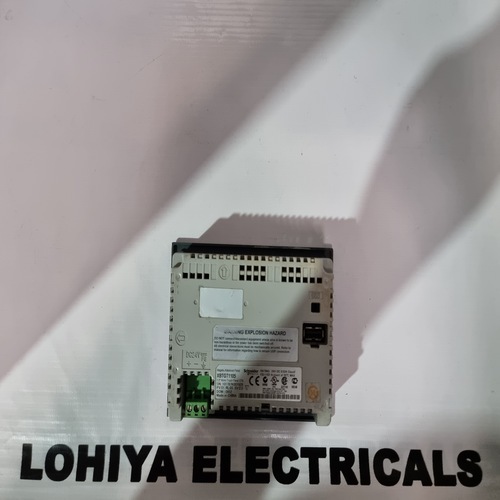

SCHNEIDER ELECTRIC XBTGT1105 HMI

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER ELECTRIC XBTGT1105 HMI Specification

Rated Current
0.67 A

Connector Type
Terminal block for power, RJ45 for ethernet, USB Host/Device

Cooling Method
Natural convection

Output Type
LCD Touchscreen Display

Operating Temperature
0C to 50C

Application
Industrial Automation, Machine Control

Noise Level
Silent Operation

Features
Color TFT touchscreen, 5.7-inch display, ethernet connectivity, USB, RS232/485 communication ports, programmable via Vijeo Designer software

Power Supply
External 24 V DC power supply required

Working Temperature
0C to 50C

Rated Power
16 W

Product Type
HMI (Human Machine Interface)

Output Power
Not Applicable (Display Device)

Input Voltage
24 V DC

Voltage Protection
Protected by external circuit breaker

Material
Plastic front panel with aluminum casing

Storage Temperature
-20C to 60C

Weight
Approx. 1.4 kg

Display Resolution
320 x 240 pixels (QVGA)

Model Number
XBTGT1105

Backlight
LED

Mounting
Panel Mount

Touchscreen Type
Resistive

Display Type
TFT LCD

Display Size
5.7 inches

Product Series
Magelis XBT-GT

Software Compatibility
Vijeo Designer

IP Rating
IP65 (front panel)

Communication Ports
1 x Ethernet 10/100Base-T, 1 x RS232/485 serial port, 1 x USB Host, 1 x USB Device

About SCHNEIDER ELECTRIC XBTGT1105 HMI

Experience the sensation of technological advancement with the SCHNEIDER ELECTRIC XBTGT1105 HMI, a top choice for ephemeral automation solutions. Featuring a dazzling 5.7-inch color TFT LCD, this majestic display offers an impressive QVGA resolution and brilliant LED backlight. Engineered for silent operation and panel mounting, the XBTGT1105 is protected by an IP65-rated front panel. Effortlessly connect with ethernet, USB, and serial ports, and program using Vijeo Designer with ease. Upgrade your industrial control todaybuy the Magelis XBT-GT series for reliability and sensational performance.

Special Features and Application Highlights

The SCHNEIDER ELECTRIC XBTGT1105 HMI offers a customizable resistive touchscreen, bright color TFT display, and enhanced panel protection (IP65 rating). Equipped with versatile communication optionsEthernet, serial, USBthis device excels in industrial automation and machine control environments. It is compatible with Vijeo Designer software, ensuring seamless programming and integration. The ergonomic design combined with its durable construction makes it ideal for critical operations in manufacturing, process control, and other automation areas.

Certifications, Supply, and Sample Offers

Schneider Electric XBTGT1105 HMI meets international certification standards for quality and safety. Suppliers and traders in India frequently offer quick arrivals for bulk orders and provide exchange policies for sample units, ensuring reliable supply ability. Interested buyers can request samples to evaluate the devices performance under real operating conditions. These features help enterprises make smart purchase decisions, guaranteeing satisfaction and uninterrupted workflow in demanding projects.

FAQs of SCHNEIDER ELECTRIC XBTGT1105 HMI:

Q: How can I connect the SCHNEIDER ELECTRIC XBTGT1105 HMI to my industrial network?

A: You can connect the XBTGT1105 HMI using the provided ethernet port (RJ45), RS232/485 serial port, and USB host/device ports, ensuring flexible integration with various industrial networks and equipment.

Q: What type of display does the XBTGT1105 feature and how is the touchscreen operated?

A: The XBTGT1105 incorporates a 5.7-inch color TFT LCD display with a resistive touchscreen. Users operate the screen by applying gentle pressure, even with gloves or styluses, offering convenient and accurate interaction.

Q: When should an external circuit breaker be used with this HMI model?

A: An external circuit breaker should be used consistently with the XBTGT1105 for optimal voltage protection, minimizing risk during unexpected power fluctuations.

Q: Where can I buy the SCHNEIDER ELECTRIC XBTGT1105 HMI in India?

A: You can purchase the XBTGT1105 HMI from authorized Schneider Electric suppliers and certified traders across India. Many vendors also offer online ordering and quick delivery options.

Q: What is the process for programming the XBTGT1105 HMI?

A: Programming the XBTGT1105 is achieved using the Vijeo Designer software, which allows users to develop, test, and deploy custom automation applications tailored to specific operational requirements.

Q: How does the IP65 rating benefit industrial usage of this HMI?

A: The IP65 rating protects the devices front panel against dust and water, enabling reliable performance in harsh industrial environments and reducing maintenance needs.
