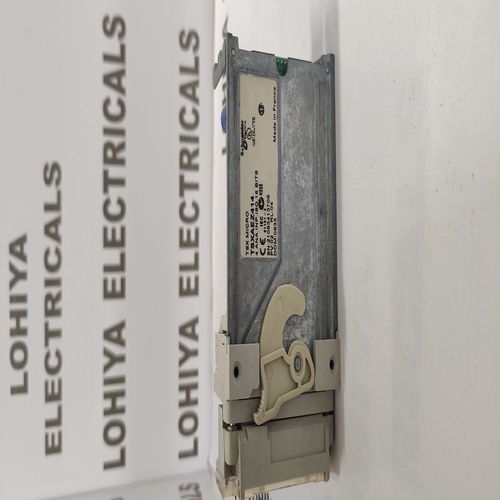

SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX ANALOG INPUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX ANALOG INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX ANALOG INPUT MODULE Specification

Way
Multi-channel

Components
Analog Input Channels, Connection Terminal Blocks

Cooling System
Natural Cooling

Protection Class
Class II

Cover Material
Polycarbonate

Thickness
Compact module, approx. 40 mm

Rated Insulation Voltage
500 V

Panel Type
Analog Input Module

Operating Voltage
24 V DC

Rated Operation Voltage
24 V DC

Control System
Modicon TSX Series PLC

Features
Hot-swappable, Diagnostic LEDs, High-accuracy inputs

Cabinet Material
Not Applicable (Module)

Base Material
High-impact plastic

Connectivity Type
Backplane Bus

Protection Level
IP20

Product Type
Electric Panel

Material
Plastic, Metal

Surface Finish
Matte

Standard
IEC standard compliance

Surface Color
Grey

Rated Voltage
24 V DC / 230 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
N/A (Input Module)

Dimension (L*W*H)
125 mm x 32 mm x 120 mm

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
LED status indicators

Input Resolution
12 bits

Number of Analog Inputs
8 Channels

Operating Temperature
0 to 60C

Response Time
10 ms

Humidity Tolerance
5% to 95% non-condensing

Input Impedance
Voltage input: >1 M, Current input: 250

Storage Temperature
-25 to 70C

Module Reference
TSXAEZ414

Input Type
Voltage (0-10 V) / Current (4-20 mA)

Mounting Type
Rack-mounted

About SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX ANALOG INPUT MODULE

Highlighted for its superlative performance, the SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX Analog Input Module is the ultimate choice for advanced process control and industrial automation. Featuring 8 sizzling analog input channels (Voltage: 0-10V, Current: 4-20mA) with a resplendent 12-bit resolution, this rack-mounted module ensures highly accurate signal capture. Its sturdy plastic and metal design, matte grey finish, and diagnostic LEDs guarantee reliability and clear status monitoring. Boasting Class II protection, 24V DC operation, and IEC compliance, this compact hot-swappable module is made for demanding environments. Get it now for precision automation!

Versatile Features for Diverse Applications

The TSXAEZ414 module stands out in industrial automation and process control, handling voltage and current signals across eight channels. Its diagnostic LEDs, high-accuracy inputs, and hot-swappable design ensure continuous monitoring and minimal downtime. Resilient to wide-ranging operating temperatures and humidity, it provides steadfast performance in challenging conditions. The system suits application media requiring rigorous and reliable data collection, proving ideal for manufacturing, power plants, and complex automated processes requiring seamless integration into Modicon TSX PLCs.

Certifications, Sample Availability, and Prompt Delivery

Sample units of the SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX Analog Input Module are available for prospective buyers. Each module is IEC certified, reflecting international standards for safety and functionality. Upon confirmation, products are readied and handed over to transport services for secure shipment. With swift delivery times and trusted logistic partners, customers in India and beyond can rest assured their orders arrive promptly and in impeccable condition, making implementation in your systems seamless and efficient.

FAQs of SCHNEIDER ELECTRIC TSXAEZ414 MEDICON TSX ANALOG INPUT MODULE:

Q: How does the TSXAEZ414 Analog Input Module enhance process control efficiency?

A: The module provides high-accuracy signal acquisition with diagnostic LEDs and a hot-swappable design, enabling real-time data collection and minimizing system downtime in industrial process control.

Q: What types of analog signals does the TSXAEZ414 support?

A: It supports both voltage inputs (0-10 V) and current inputs (4-20 mA) across its 8 channels, meeting diverse industrial automation needs.

Q: When can I expect delivery of the TSXAEZ414 module once ordered?

A: After your order is confirmed, the module is promptly prepared and handed over to reliable transport services, ensuring a swift and secure shipment to your location.

Q: Where is the TSXAEZ414 typically used?

A: This input module is widely deployed in industrial automation, manufacturing, and complex process control systems, where accurate and reliable analog signal monitoring is essential.

Q: What is the process for connecting the TSXAEZ414 to a PLC?

A: Connection is straightforward via terminal blocks and the backplane bus; simply rack-mount the module into the Modicon TSX Series PLC system and use LED indicators for setup verification.

Q: What are the benefits of its hot-swappable feature?

A: The hot-swappable feature allows users to replace or add modules without shutting down the system, ensuring continuous operations and significant reduction in maintenance downtime.
