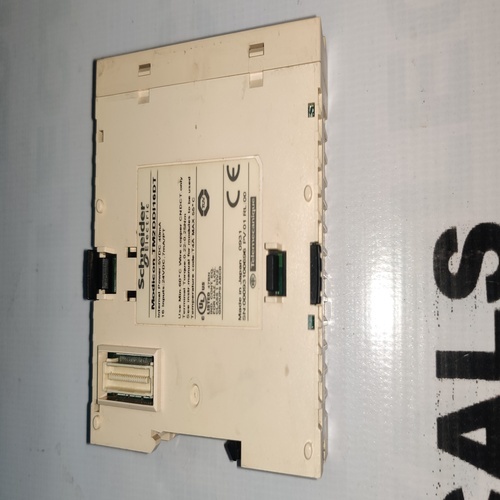

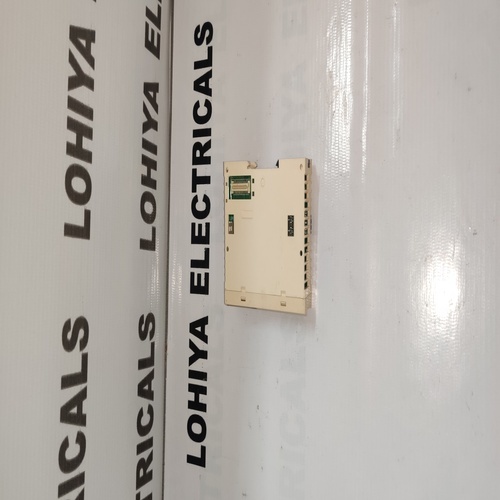

SCHNEIDER ELECTRIC TM2DDI16DT TWIDO DISCRETE INPUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER ELECTRIC TM2DDI16DT TWIDO DISCRETE INPUT MODULE

Get a Price/Quote

SCHNEIDER ELECTRIC TM2DDI16DT TWIDO DISCRETE INPUT MODULE Specification

Connectivity Type
Removable terminal block

Operating Voltage
24V DC

Rated Operation Voltage
24V DC

Rated Insulation Voltage
500V AC

Cooling System
Natural convection

Features
DIN Rail Mounting, Compact Design, Plug-in Connectors

Cover Material
Plastic

Rated Current
5 mA/channel

Current Rating
5 mA (per input)

Protection Level
IP20

Way
16 Channels

Control System
Twido PLC Series

Components
Opto-couplers, Input filter circuitry

Cabinet Material
Plastic

Panel Type
Modular

Base Material
Plastic

Protection Class
Class I

Thickness
Standard module thickness

Product Type
Discrete Input Module

Material
Plastic, Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
DC, not specified

Maximum Output Current
Not Applicable (Input Module)

Dimension (L*W*H)
117 x 35 x 70 mm approx

Application
PLC Control Systems, Automation

IP Rating
IP20

Display Type
LED status indicators

Number of Inputs
16 digital inputs

Series
Twido

Mounting Type
DIN Rail

Module Category
Expansion Module

Status Indication
Individual input channel LEDs

Input Signal Delay
< 5 ms

Isolation Type
Opto-isolated Inputs

Input Voltage Range
19.2V to 30V DC

Ambient Operating Temperature
0°C to 55°C

Weight
Approx 160 g

Input Type
Sink or Source, compatible with IEC type 1 and 3

Compatible PLC
Twido Programmable controller family

Storage Temperature
-20°C to 70°C

Humidity
10% to 95% (Non-condensing)

About SCHNEIDER ELECTRIC TM2DDI16DT TWIDO DISCRETE INPUT MODULE

Explore the premier capabilities of the SCHNEIDER ELECTRIC TM2DDI16DT Twido Discrete Input Module, a praiseworthy addition to any automation setup. With 16 illustrious digital input channelseach featuring individual LED status indicators and robust opto-isolationthis affordable expansion module ensures reliable input collection in demanding PLC control systems. Designed for DIN rail mounting, it is compatible with Twido programmable controllers and adheres to IEC 61131-2 standards. Enjoy reduced price offerings from top suppliers and traders in India for this compact, efficient solution built for precision and longevity in industrial environments.

Specific Usage and Key Features of the TM2DDI16DT

Engineered for modern PLC control systems, the TM2DDI16DT module seamlessly integrates with the Twido series for automation in industrial settings. Its compact, DIN rail-mountable design and plug-in connectors make installation effortless. The modules illuminated status LEDs facilitate easy diagnostics, while opto-isolated inputs ensure signal integrity. With a wide input voltage range of 19.2V to 30V DC and ambient operation up to 55C, its well-suited for machine automation, process monitoring, and control panel integration.

Sample Availability, Export Markets, and Certifications

The SCHNEIDER ELECTRIC TM2DDI16DT module is available for sample evaluation by potential clients, aiding in effective valuation and informed purchasing. Main export markets include Southeast Asia and the Middle East, with rapid order processing and secure packaging to ensure product integrity upon delivery. The module meets IEC 61131-2 certification standards, guaranteeing international compliance, and making it a top choice among global industrial automation suppliers and traders.

FAQs of SCHNEIDER ELECTRIC TM2DDI16DT TWIDO DISCRETE INPUT MODULE:

Q: How does the SCHNEIDER ELECTRIC TM2DDI16DT module enhance automation systems?

A: The module provides 16 digital input channels with reliable opto-isolation and individual LED indicators, improving signal detection, diagnostics, and integration in Twido PLC-based automation systems.

Q: What features ensure the modules compatibility and longevity in control panels?

A: It supports both sink and source input types, operates within a voltage range of 19.230V DC, and is built with durable plastic housing, maintaining stability in ambient temperatures up to 55C and humidity up to 95%.

Q: When should I use this discrete input module in my application?

A: Utilize the TM2DDI16DT when you need to efficiently collect multiple digital signals from sensors or devices within a Twido PLC automation environment, especially where reliable status monitoring is essential.

Q: Where can I obtain product samples and what is the order process?

A: Product samples are available through authorized suppliers and traders in India. Orders are processed efficiently and packaged securely to ensure safe transit to the end user.

Q: What are the benefits of the modules status indication LEDs?

A: Each input channel features an LED indicator, making it easy to identify active inputs, simplify troubleshooting, and enhance real-time monitoring during operation.
