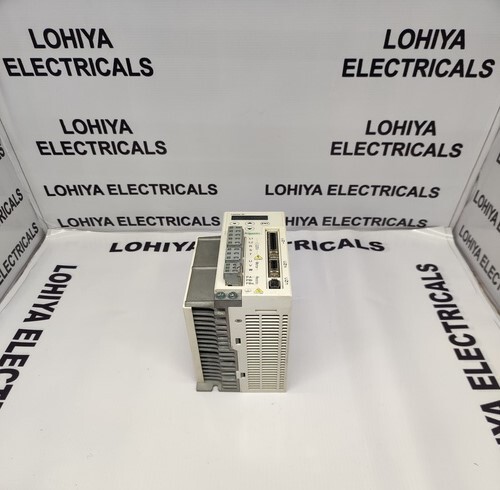

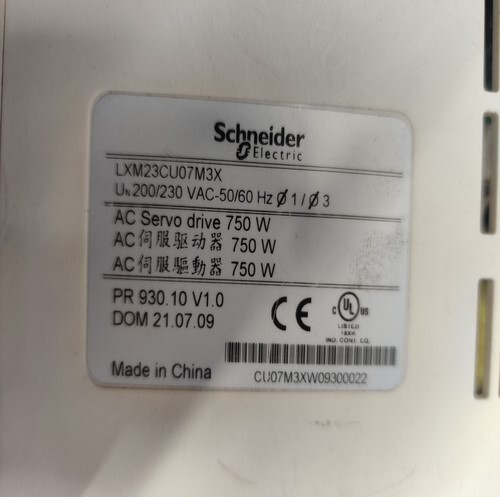

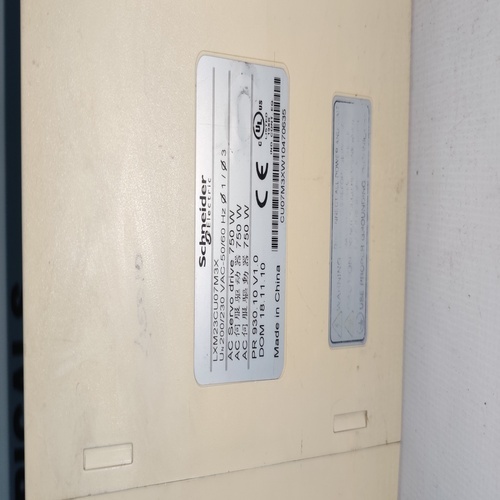

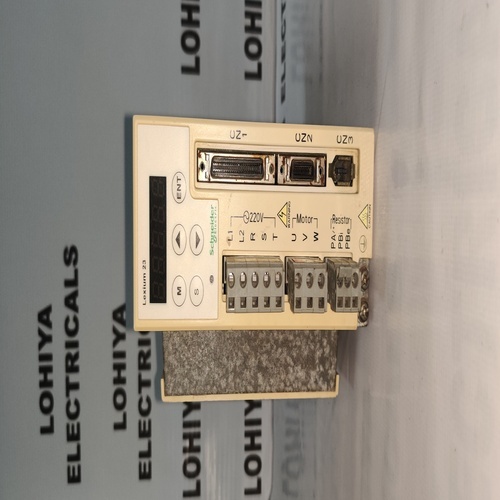

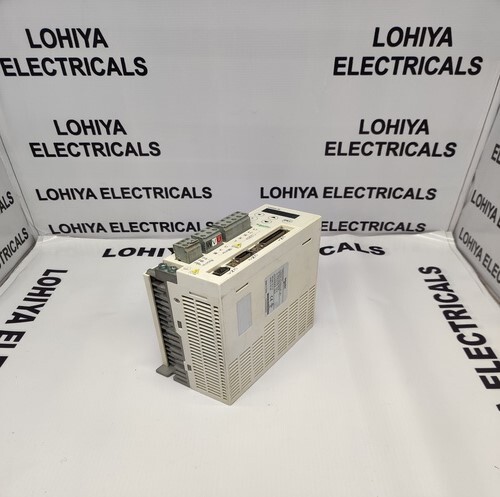

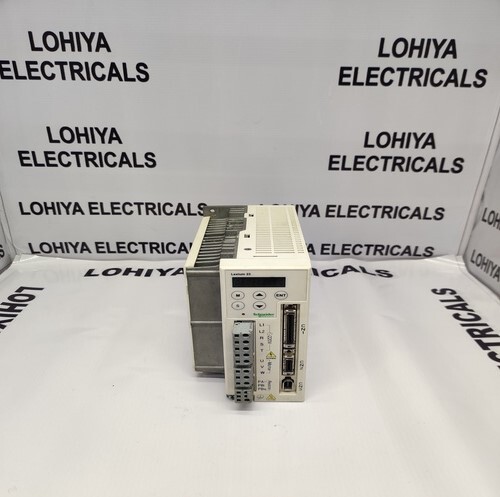

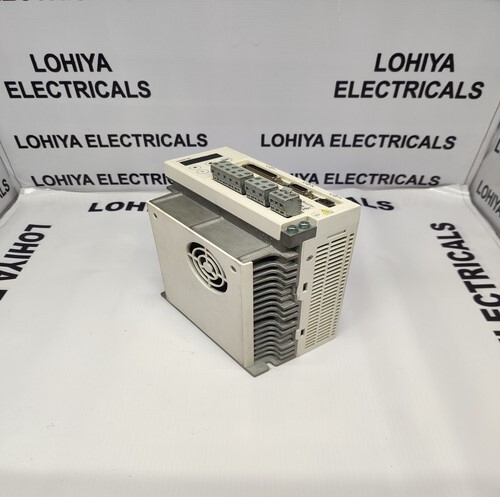

SCHNEIDER ELECTRIC LXM23CU07M3X SERVO DRIVE

Get a Price/Quote

SCHNEIDER ELECTRIC LXM23CU07M3X SERVO DRIVE Specification

Connector Type
Industrial Connector

Operating Temperature
0C to 40C

Overheating Protection
Built-in Thermal Protection

Efficiency
>90%

IP Rating
IP20

Shape
Rectangular

Humidity %
<90% RH, non-condensing

Feature
Built-in Position Control, High Dynamic Response

Insulation Material
Plastic

Mounting Type
Panel Mount

Surface Finish
Powder Coated

Power Factor
>0.95

Product Type
Servo Drive

Application
CNC Machines, Robotics, Packaging Machines, Motion Control

Protection Level
Over-voltage, Over-current, Over-temperature

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Optimized for high efficiency

Output Type
Digital & Analog Outputs

Color
Gray

Dimension (L*W*H)
220 mm x 170 mm x 60 mm

Weight
2.8 kg

Input Voltage
380-480 V AC

Size
Compact

Phase
Three Phase

Material
Aluminium / Steel

Connection Type
Screw Terminal / Plug-in

No Of Poles
3

About SCHNEIDER ELECTRIC LXM23CU07M3X SERVO DRIVE

Utilise this exclusive offer on the SCHNEIDER ELECTRIC LXM23CU07M3X Servo Drivea must-have for automation aficionados and industry titans alike. Boasting a top-drawer control mode with Velocity, Position, and Torque, this first-string unit guarantees redoubtable reliability and precision. With a robust output power of 0.7 kW, forced air cooling, and wide compatibility with Lexium 23 Servo Motors, it stands out in the limited-stock category. Secure this compact, panel-mount, IP20 rated drive for high-efficiency performance in CNC, robotics, or motion-centric operations.

Key Features and Versatile Applications of LXM23CU07M3X

The SCHNEIDER ELECTRIC LXM23CU07M3X SERVO DRIVE offers high dynamic response, efficient digital and analog outputs, and robust protection with built-in position control. Its compact size with LED indicators and powder-coated finish boosts both usability and durability. Primarily designed for CNC machines, robotics, and packaging solutions, this drives versatility extends to any demanding motion control environment, delivering reliability and energy efficiency for a spectrum of industrial applications.

Certifications and Hassle-free Order Processing

Backed by robust certifications like EN61800-5-1 and an IP20 rating, the LXM23CU07M3X is well-suited for the domestic market. Dispatching is swift upon order confirmation, with streamlined processing to facilitate both small and bulk requirements across India. Flexible payment terms and sample availability further ease procurement, allowing traders and suppliers to assess suitability prior to bulk commitmentmaking industrial integration smooth and prompt.

FAQs of SCHNEIDER ELECTRIC LXM23CU07M3X SERVO DRIVE:

Q: How do I set parameters on the SCHNEIDER ELECTRIC LXM23CU07M3X Servo Drive?

A: You can set parameters on the LXM23CU07M3X using dedicated software via its RS485 or CANopen communication interfaces, enabling quick configuration to suit various applications.

Q: What are the main benefits of using this servo drive in industrial automation?

A: This servo drive ensures precise motion control, optimized energy consumption, and robust protection features, making it highly effective for CNC machines, robotics, and packaging systems.

Q: Where can the LXM23CU07M3X be installed safely?

A: Its panel mount design and IP20 rating allow safe installation in controlled industrial environments where dust and moisture exposure are minimal.

Q: When can I expect order dispatching after placing a purchase request?

A: Order dispatching typically occurs swiftly after confirmation, subject to stock availability, ensuring minimal downtime for your operations.

Q: What certifications does the LXM23CU07M3X hold for quality and safety?

A: It holds certifications including EN61800-5-1 Degree of Contamination 2 and meets stringent industrial standards for performance, safety, and reliability.
