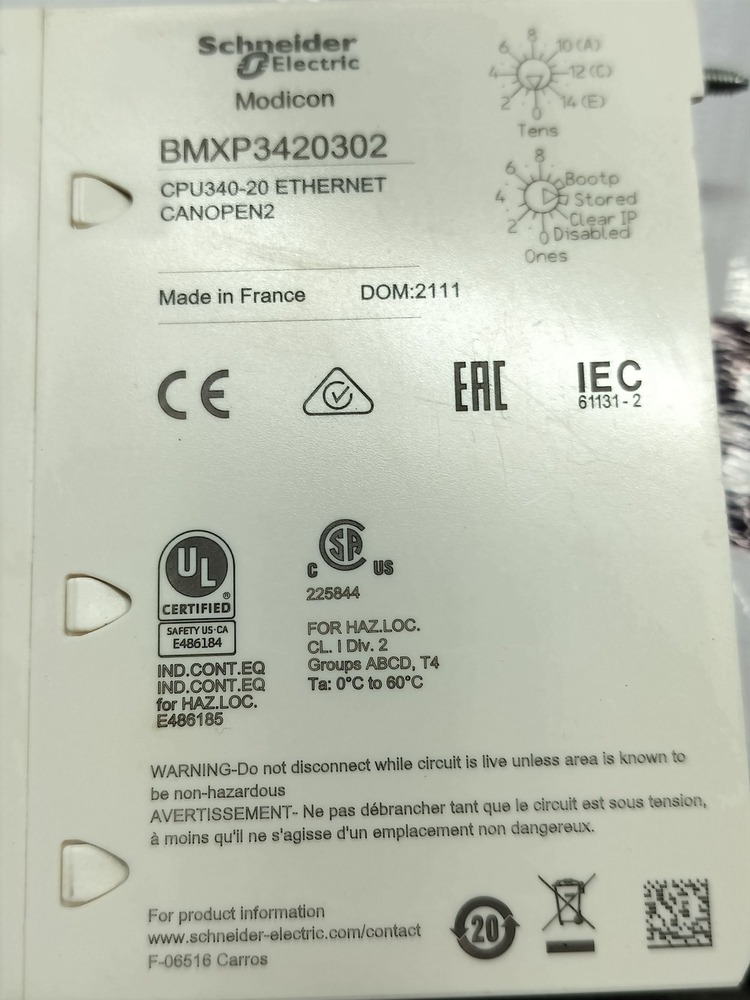

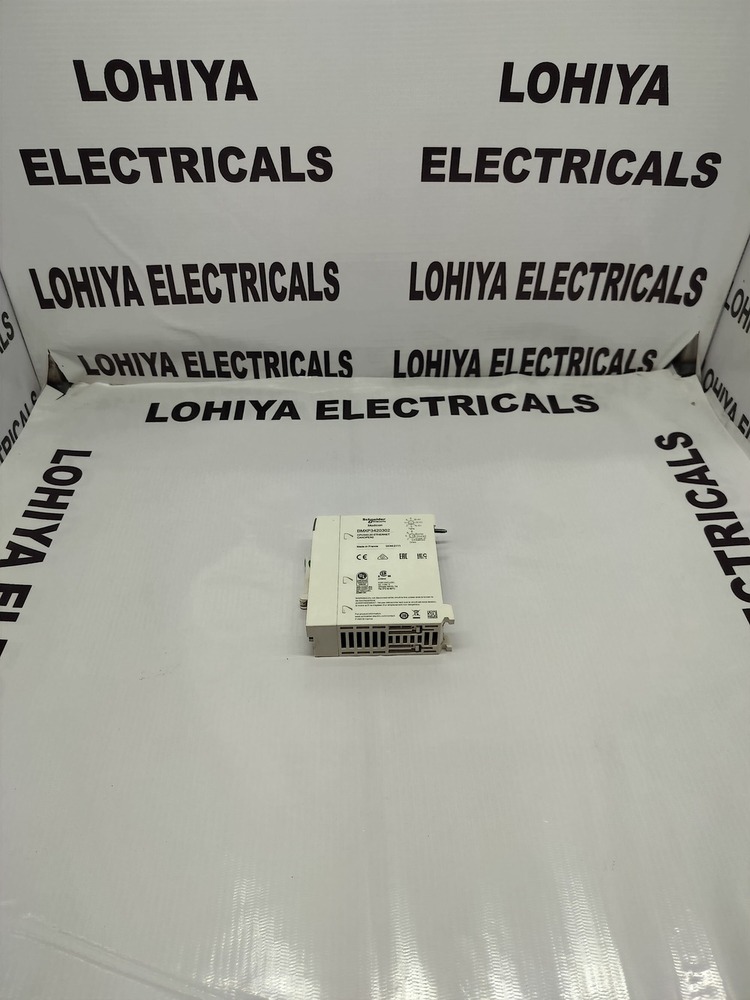

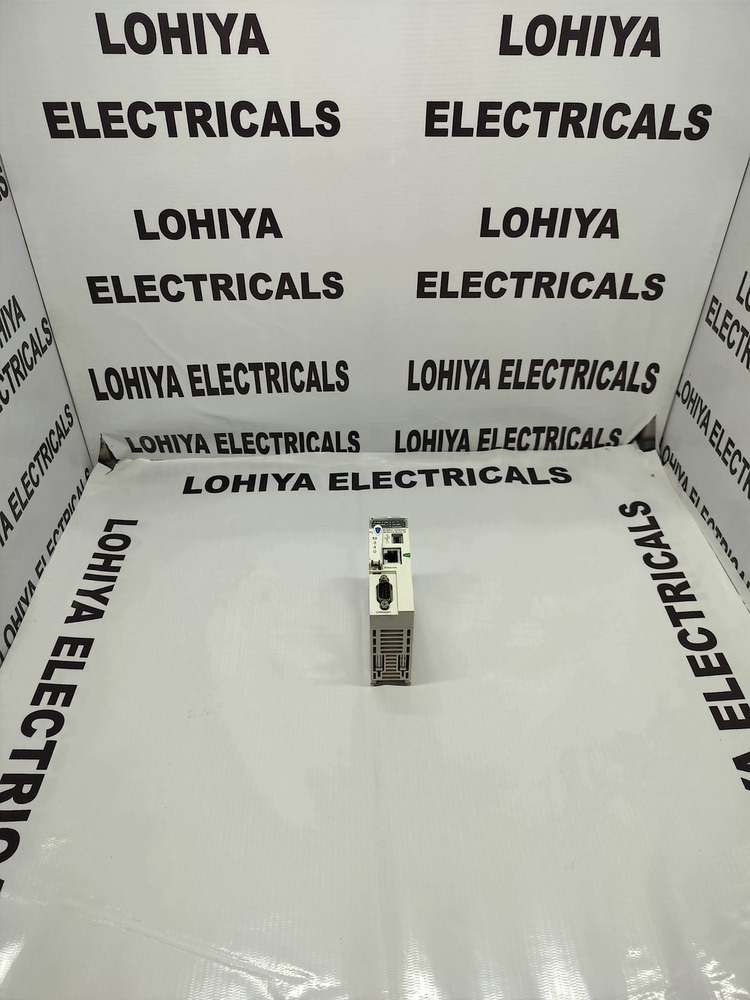

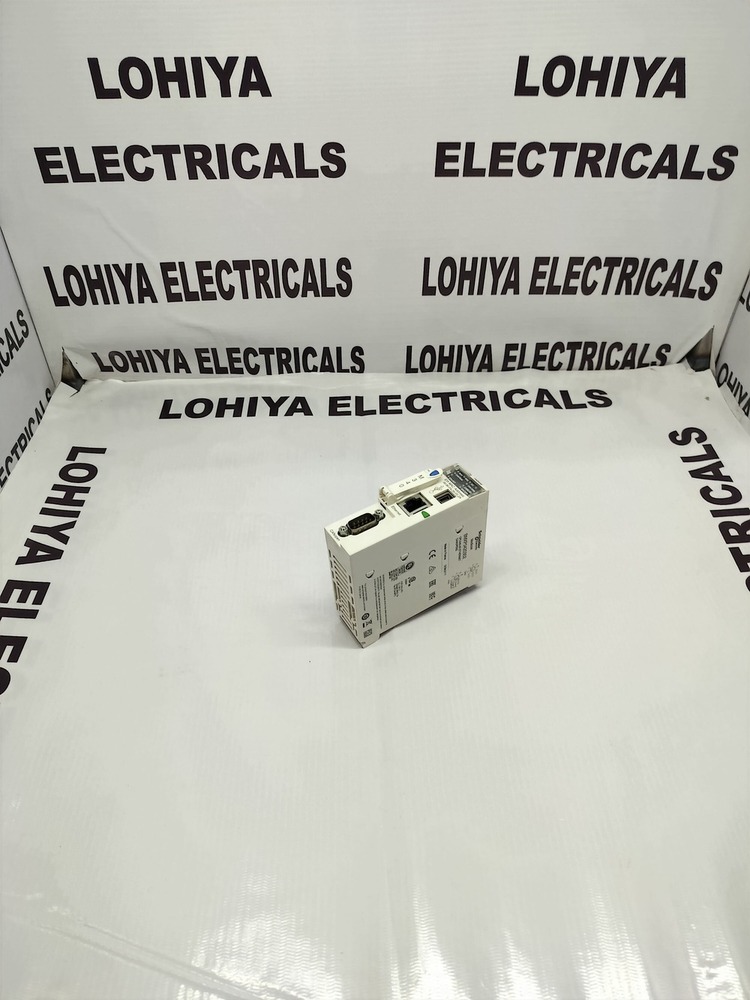

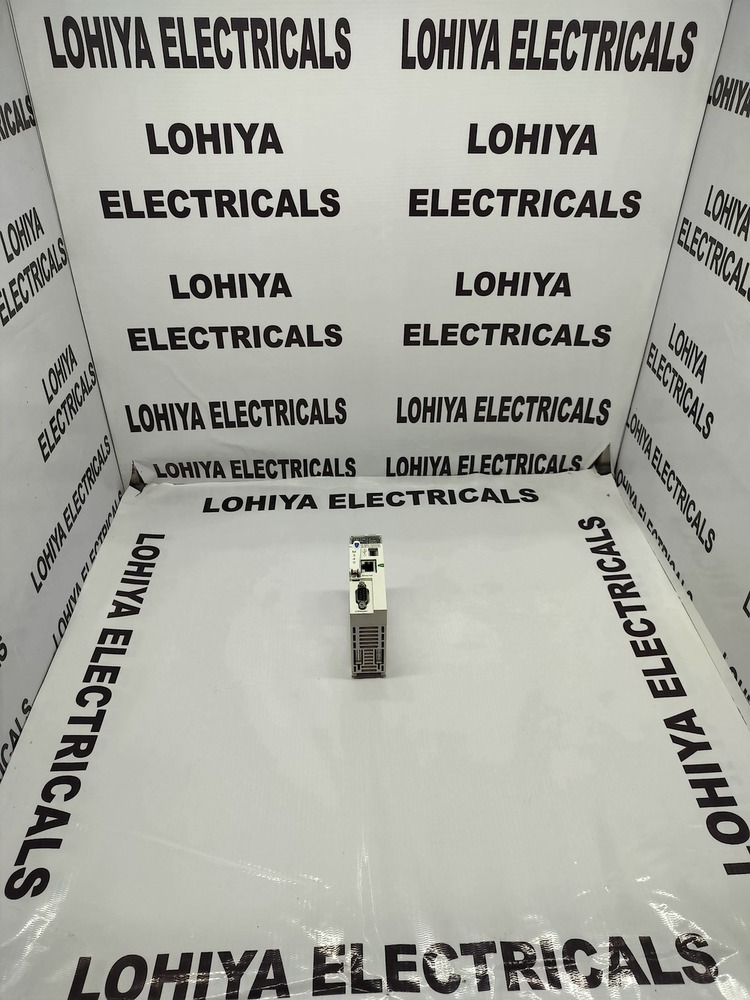

SCHNEIDER BMXP3420302 PROCESSOR MODULE

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER BMXP3420302 PROCESSOR MODULE Specification

Features
Dual local bus, high performance CPU, large memory, fast processing speed, real-time clock, battery backup

Connector Type
Connector for backplane rack

Working Temperature
0°C to +60°C

Cooling Method
Passive ventilation

Power Supply
Backplane power via rack

Output Type
Digital output signals for PLC system

Operating Temperature
0°C to +60°C

Noise Level
< 30 dB

Application
Automation systems, industrial control panels, Modicon M340 platform

Product Type
Processor Module

Input Voltage
19.2...30.2 V DC (via rack backplane)

Voltage Protection
Integrated electronic protection

Material
Plastic enclosure, PCB electronic components

Storage Temperature
-40°C to +85°C

Weight
0.85 kg

Standards Compliance
CE, CSA, UL

Configuration
Configurable via Unity Pro software

Clock Frequency
66 MHz

Model Number
BMXP3420302

Protection Class
IP20

Memory
RAM 2 MB, Flash 4 MB, 16 MB mass memory

Communication Ports
Mini-USB for programming/debugging

Typical Cycle Time
< 2 ms

Battery Type
Lithium backup battery

Relative Humidity
5% to 95% non-condensing

Dimensions
98 x 67 x 40 mm

Diagnostic Functions
Built-in diagnostic via software

Mounting Type
Rack-mounted

Redundancy Support
No

Product Series
Modicon M340

Maximum Modules Per System
Up to 11 per rack

Status Indication
LED status indicators

Programming Language
IEC 61131-3 languages (LD, ST, FBD, SFC, IL)

Firmware Upgrade
Supported via USB port

Number of Slots Supported
Supports up to 11 slots per rack

Processor Type
RISC 32-bit CPU

SCHNEIDER BMXP3420302 PROCESSOR MODULE About

Experience superlative performance with the SCHNEIDER BMXP3420302 PROCESSOR MODULEa scarce and extraordinary addition to the Modicon M340 lineup. Featuring a RISC 32-bit CPU clocked at 66 MHz and ace access to 2 MB RAM with 16 MB mass memory, it excels in complex industrial automation tasks. Markdown cycle times to under 2 ms with rapid response, while integrated lithium backup battery and robust IP20 protection ensure reliability. Configuration is streamlined via Unity Pro, and with up to 11 slot support per rack, scalability is at your fingertips. Compliant with international standards, this processor redefines industrial control excellence.

Unmatched Versatility and Features for Industrial Automation

The SCHNEIDER BMXP3420302 PROCESSOR MODULE is crafted for critical industrial control panels and automation systems. Its high-performance RISC CPU, expansive memory capacities, dual local bus, and fast processing render it ideal for advanced applications. Usage is further streamlined through IEC 61131-3 language compatibility and Unity Pro configurability. Reliable operation is assured thanks to LED status indicators, built-in diagnostics, and lithium battery-backed real-time clock.

Professional Packaging, Swift Dispatch, and Flexible Payment

Each SCHNEIDER BMXP3420302 PROCESSOR MODULE is securely packed to prevent transit damage. We offer prompt dispatching from India, with express shipping available for time-sensitive orders. Clients can estimate delivery schedules upfront and choose from flexible payment terms, including T/T and LC. With an efficient supply chain and attentive customer service, your order is managed from inquiry to delivery for maximum satisfaction.

FAQs of SCHNEIDER BMXP3420302 PROCESSOR MODULE:

Q: How can the SCHNEIDER BMXP3420302 PROCESSOR MODULE be configured for my automation project?

A: You can easily configure the module using Unity Pro software, which supports IEC 61131-3 programming languages like LD, ST, FBD, SFC, and IL, offering significant flexibility for various industrial applications.

Q: What special features set this processor module apart in industrial usage?

A: Key features include high-speed RISC 32-bit CPU, dual local bus, LED status indicators, large memory capacity, integrated diagnostics, and a reliable lithium battery for backup, making it suitable for mission-critical operations.

Q: Where is the processor module typically used?

A: The SCHNEIDER BMXP3420302 is widely deployed in automation systems, industrial control panels, and process control within factory environments, especially as part of the Modicon M340 platform.

Q: What is the process for firmware upgrades and how is maintenance managed?

A: Firmware upgrades can be performed via the integrated USB programming port, while built-in diagnostic capabilities and LED indicators facilitate easy maintenance and monitoring during use.

Q: When can express shipping be arranged, and how soon can I estimate product dispatching?

A: Express shipping is available upon request for urgent orders. You can get a delivery estimate during the order process, ensuring timely dispatch and arrival of your SCHNEIDER BMXP3420302 processor module.
