SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE

Name: SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE
Brand: LOHIYA ELECTRICALS
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE Specification

Current Range
7 mA (per input)

Connector Type
Removable terminal block

Working Temperature
0 to 60 C

Rated Current
0.8 A (fuse rating), 7 mA/input

Operating Temperature
0 to 60 C

Cooling Method
Natural convection

Features
64 discrete input channels, module diagnostics, removable terminal block

Power Supply
Supplied from PLC backplane

Application
Automation, Industrial Control Systems, PLC Input Expansion

Product Type
Discrete Input Module

Input Voltage
24 V DC

Voltage Protection
Yes, protects against reverse polarity and short-circuit

Material
Plastic (housing), electronic components

Storage Temperature
-40 to 85 C

Weight
0.22 kg

Module Reference
BMXDDI6402K

Mounting Type
DIN rail mounting

Module Current Consumption
180 mA at 3.3 V DC

Dimensions (W x H x D)
32 x 100 x 96 mm

Number of Inputs
64

Response Time
4.5 ms (On), 4.5 ms (Off)

Status Indication
LED per channel

Isolation Voltage
500 V (between channels and bus)

Input Signal Type
Sink/Source (Positive/Negative logic)

Nominal Input Voltage
24 V DC

Input Voltage Range
19 to 30 V DC

SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
No

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America

Main Domestic Market
All India

About SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE

SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE Supplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- BMXDDI6402K

Product Name:- SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE

Brand:- SCHNEIDER

Condition:- USED CONDITION

SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT

Description:-

SCHNEIDER
BMXDDI6402K
DISCRETE INPUT MODULE

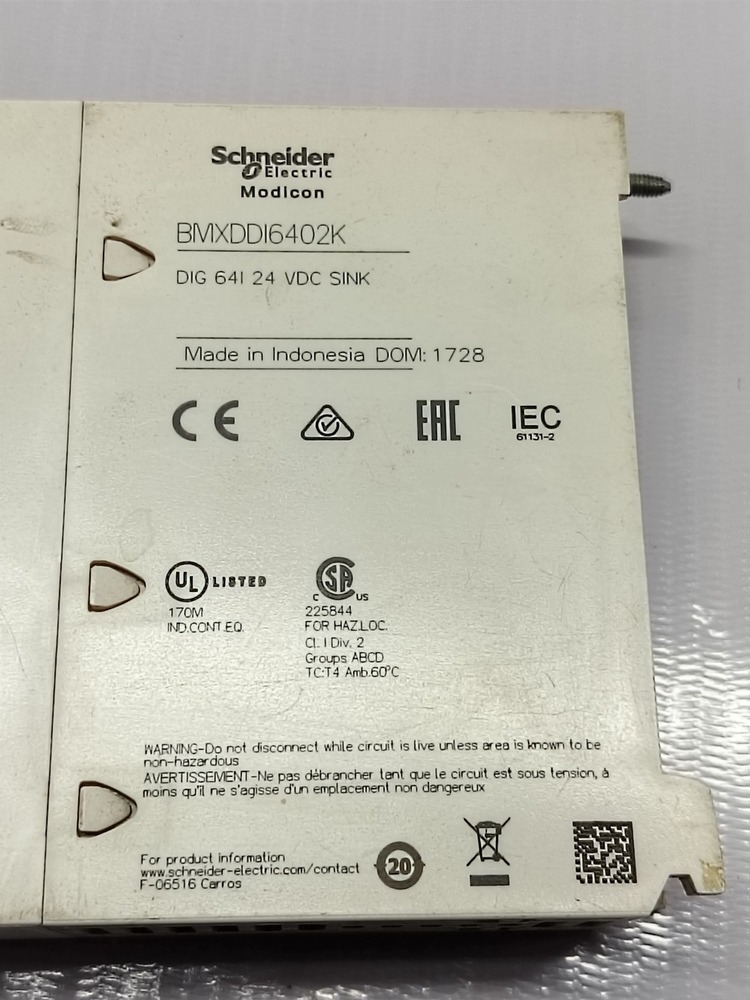

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- HAFIZ SUMRA

High-Density Input for Flexible Automation

The BMXDDI6402K module provides 64 discrete digital input channels, enabling significant I/O expansion in industrial automation panels. Its compact design and removable terminal block ease both installation and upgrades, making it an excellent choice for scalable control systems.

Robust and Reliable Operation

Equipped with voltage protection features, the module is safeguarded against reverse polarity and short-circuit, ensuring dependable operation in demanding industrial environments. LEDs provide real-time status for every input, while diagnostics enhance maintenance efficiency.

Efficient Integration with PLC Systems

Tailored for PLC backplane power supply, the BMXDDI6402K discreetly integrates into Schneider's automation solutions. Thanks to DIN rail mounting and natural convection cooling, the module can be easily deployed in various control cabinets with minimal impact on space or energy consumption.

FAQ's of SCHNEIDER BMXDDI6402K DISCRETE INPUT MODULE:

Q: How is the SCHNEIDER BMXDDI6402K module connected to a PLC system?

A: The BMXDDI6402K module is designed for DIN rail mounting and connects to a PLC system via the backplane, drawing power directly from the PLC and utilizing a removable terminal block for straightforward wiring.

Q: What types of logic signals are compatible with this input module?

A: This module accepts both sink and source (positive and negative logic) input signals, making it adaptable to a wide range of industrial automation devices.

Q: When should this module be used in an automation setup?

A: The BMXDDI6402K is ideal for applications that require monitoring multiple discrete signals, such as large-scale process controls or any setup needing high input channel density.

Q: Where can the BMXDDI6402K be installed within an industrial environment?

A: Its compact size and DIN rail mounting make it suitable for control cabinets and industrial panels in factories, manufacturing plants, and infrastructure automation projects.

Q: What is the process for installing or replacing the terminal block?

A: The module offers a removable terminal block, allowing users to easily wire, install, or replace connections without detaching the entire unit from the DIN rail or disrupting ongoing operations.

Q: How does the module provide input status feedback?

A: Each input channel is equipped with an individual LED indicator, enabling operators to quickly assess the status of every connected device at a glance.

Q: What benefits does the voltage protection feature provide?

A: The built-in voltage protection safeguards the module against reverse polarity and short-circuit situations, enhancing device reliability and protecting connected components in harsh industrial environments.
