SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE

Name: SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE
Brand: LOHIYA ELECTRICALS
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE Specification

Cooling Method
Natural convection

Working Temperature
0 to 60C

Power Supply
24 V DC

Application
For use with Modicon M340 PLCs in Industrial Automation

Operating Temperature
0 to 60C

Connector Type
Removable terminal block

Features
16 channels, Hot swap, LED status indication, Screw terminal connection

Current Range
4 mA per input

Product Type
Discrete Input Module

Input Voltage
24 V DC

Voltage Protection
Reverse Polarity Protection, Overvoltage Protection on Input

Material
Plastic (housing), Electronic Components

Storage Temperature
-40 to 70C

Weight
140 g

Standards
CE, UL, cUL, CSA certified

LED Status Indicators
Individual channel status

Input Delay
<7 ms (rising edge), <6 ms (falling edge)

Input Impedance
>3.2 k

Module Width
32.6 mm

Isolation Voltage
500 V (between groups and internal logic)

Mounting Type
DIN Rail

Series
Modicon M340

Module Height
90 mm

Protection Class
IP20

Number of Inputs
16 (sink/source type)

Module Depth
81 mm

Response Time
Fast response for automation tasks

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
No

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE About

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE Supplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- BMXDDI1602

Product Name:- SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE

Brand:- SCHNEIDER

Condition:- USED CONDITION

SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT

Description:-
SCHNEIDER
BMXDDI1602
DISCRETE INPUT MODULE

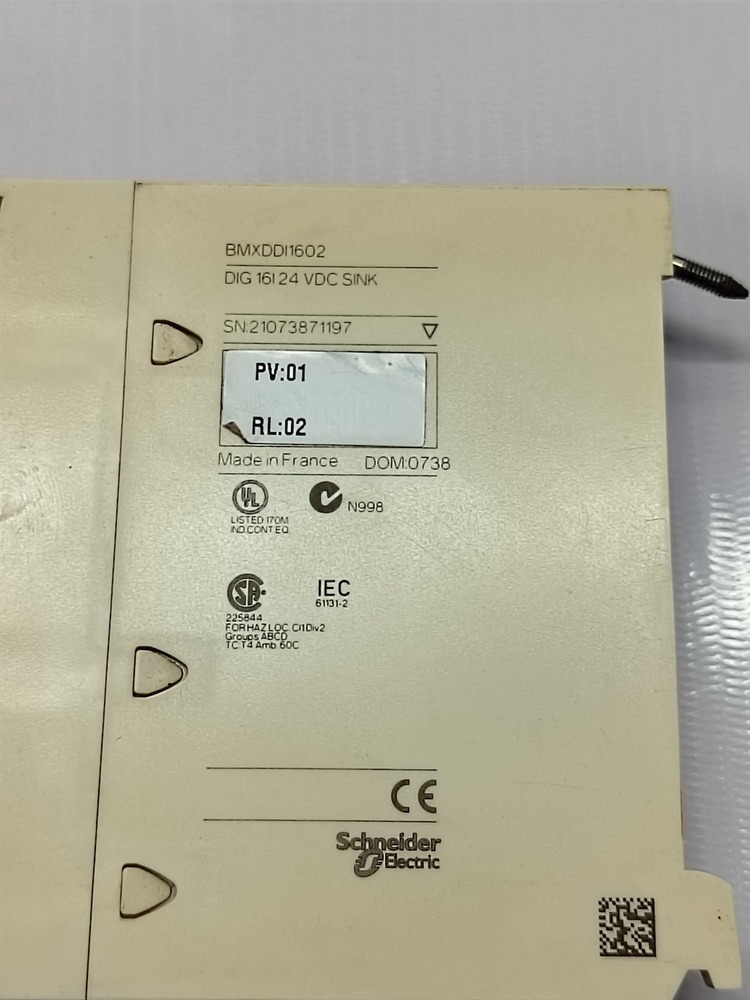

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- HAFIZ SUMRA

Versatile Performance in Industrial Automation

The SCHNEIDER BMXDDI1602 delivers 16 fast, reliable digital inputs in a compact footprint, making it an ideal choice for industrial automation. Its DIN rail mounting and removable terminal block ensure easy installation and maintenance. With hot-swap capability and robust protection features, it minimizes downtime and enhances operational efficiency in environments from -40C storage to 60C working temperatures.

Reliable and Certified for Harsh Conditions

Engineered to meet global standards including CE, UL, cUL, and CSA, the BMXDDI1602 module ensures operational safety and reliability. Its IP20-rated housing and advanced input protection features guard against reverse polarity and overvoltage, while LED status indicators offer at-a-glance diagnostics for each channel, reducing troubleshooting time and supporting continuous operations.

FAQ's of SCHNEIDER BMXDDI1602 DISCRETE INPUT MODULE:

Q: How do I install the SCHNEIDER BMXDDI1602 discrete input module?

A: The module is designed for simple DIN rail mounting. Connect your input lines to the removable screw terminal block, ensure a stable 24 V DC power supply, and follow the wiring guidelines in the manual for safe operation.

Q: What are the benefits of individual LED status indicators on this module?

A: Each channel features an LED status indicator, providing immediate visual feedback on the input state. This aids in quick diagnostics, reduces troubleshooting time, and enhances system monitoring during operation.

Q: When should I use the BMXDDI1602 module with my Modicon M340 PLC?

A: Use this module when you require high-speed, reliable digital input acquisition for industrial automation applications, especially when you need up to 16 channels with strong isolation and compliance to global safety standards.

Q: What protection features does the SCHNEIDER BMXDDI1602 offer?

A: The input module is equipped with reverse polarity and overvoltage protection to safeguard internal electronics and connected equipment, ensuring reliable long-term operation in industrial environments.

Q: Where is the SCHNEIDER BMXDDI1602 best utilized?

A: It is best suited for use in industrial automation projects within manufacturing plants, process control, and other environments controlled by Modicon M340 PLCs, where fast, reliable discrete input collection is critical.

Q: What is the process for hot-swapping this input module?

A: The BMXDDI1602 supports hot-swap capability: you can safely remove and replace the module without powering down the system, provided you follow the correct procedures as outlined in the manufacturer's manual to avoid data loss or system faults.

Q: How does the module ensure high-speed input processing?

A: With rising and falling edge input delays as low as 7 ms and 6 ms respectively, along with an input impedance exceeding 3.2 k, the module is engineered for rapid and precise digital input detection in demanding industrial automation tasks.
