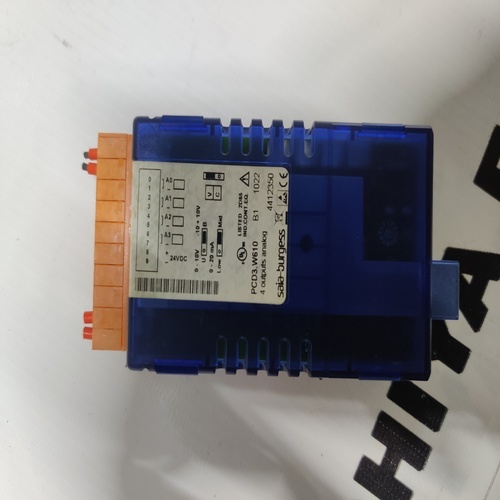

SAIA-BURGESS PCD3.W610 INPUT ANALOG MODULE

Get a Price/Quote

MOQ : 1 Piece

SAIA-BURGESS PCD3.W610 INPUT ANALOG MODULE Specification

Operating Voltage
24 V DC

Connectivity Type
Terminal block (removable)

Features
4-channel analog input, LED indication, removable connectors, 12 bit resolution

Panel Type
Module

Cover Material
Plastic

Current Rating
<10 mA per channel

Control System
PCD3 Automation Series

Components
Analog signal processor, connectors

Rated Insulation Voltage
250 V

Thickness
approx. 22.5 mm

Protection Class
Class II

Base Material
Plastic

Cooling System
Natural air cooling

Way
4-channel

Rated Current
<10 mA per channel

Rated Operation Voltage
24 V DC

Cabinet Material
Plastic housing

Protection Level
IP20

Product Type
Analog Input Module

Material
Plastic, Electronic Components

Surface Finish
Matte

Standard
SAIA-Burgess PCD3 standard

Surface Color
Gray

Rated Voltage
24 V DC

Dimension (L*W*H)
107 x 22.5 x 90 mm

Application
Industrial Automation, Building Automation

IP Rating
IP20

Display Type
LED status indicators

About SAIA-BURGESS PCD3.W610 INPUT ANALOG MODULE

Take advantage of this hot deal on the SAIA-BURGESS PCD3.W610 Input Analog Module and realise formidable savings today! Built with a polished matte finish and unrivaled 12-bit resolution, this module features 4 analog inputs supporting a selectable voltage and current range (0 to 10 V, 020 mA, 420 mA). Designed for demanding industrial and building automation, it guarantees reliable performance with LED indication for each channel. Utilise this offer and upgrade your operations with this formidable, DIN rail-mountable solution crafted to SAIA-Burgess standards for maximum efficiency and dependability.

Advantage, Applications, and Usage Type

The SAIA-BURGESS PCD3.W610 Input Analog Module delivers a significant advantage for automation systems. Its versatility makes it suitable for diverse application mediaranging from industrial equipment to advanced building automation. The module is engineered for continuous, reliable usage in challenging environments, providing precise analog signal processing. Its robust form ensures consistent operation, while the modular setup enables seamless integration into PCD3 programmable controllers, enhancing process automation and monitoring efficiency in professional automation networks.

FOB Port, Certifications, and Export Markets

This input analog module is shipped from premier FOB ports in India, ensuring swift arrival through reliable goods transport networks. The module boasts recognised certifications that ensure compliance and safety across industrial environments. Our proposal amount reflects competitive export pricing aimed at major international markets. Primary export destinations include Asia, Europe, and the Middle East, catering to automation professionals who value certified products and dependable post-sale support for their automation needs.

FAQs of SAIA-BURGESS PCD3.W610 INPUT ANALOG MODULE:

Q: How do I install the SAIA-BURGESS PCD3.W610 Input Analog Module?

A: Installation is straightforward as the module is designed for DIN rail mounting. Simply slot the module into place within a compatible control cabinet and connect via the removable terminal blocks.

Q: What types of input signals are supported by the PCD3.W610 module?

A: This analog input module supports both voltage (0 to 10 V) and current (020 mA, 420 mA) input signals, selectable per channel for maximum flexibility in your automation applications.

Q: Where can the SAIA-BURGESS PCD3.W610 be utilised?

A: It is ideal for industrial and building automation systems requiring precise analog signal monitoring, particularly when integrated with PCD3 programmable controllers.

Q: What benefits does the LED status indication provide?

A: With an LED indicator for each channel, you gain instant visual feedback on system status and channel activity, facilitating fast diagnostics and efficient maintenance.

Q: What is the process to ensure compatible integration with PCD3 programmable controllers?

A: To ensure compatibility, connect the module via the specified terminal blocks and configure the channels according to system requirements using PCD3 programming tools.
