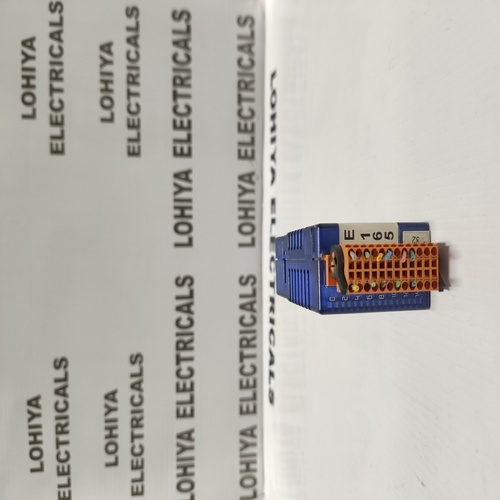

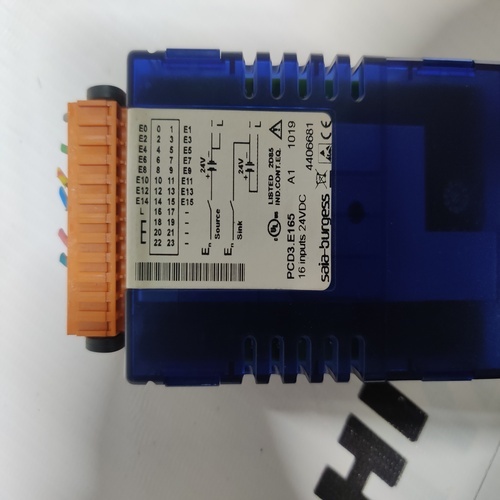

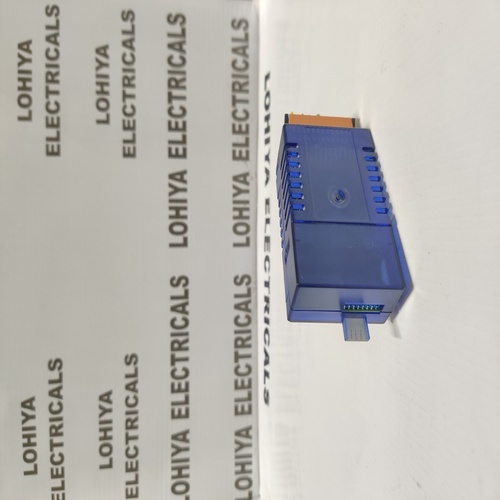

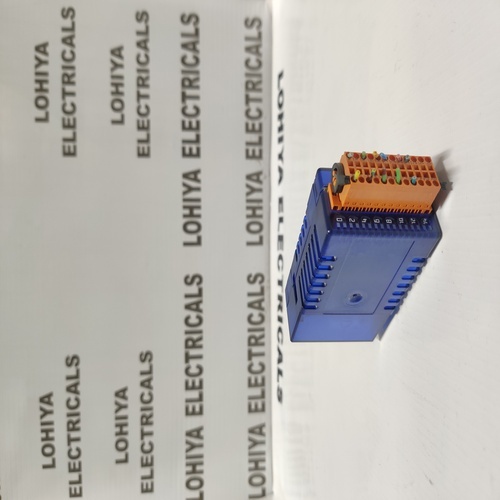

SAIA-BURGESS PCD3.E165 INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

SAIA-BURGESS PCD3.E165 INPUT MODULE Specification

Rated Insulation Voltage
500 V

Cover Material
Polycarbonate

Control System
Saia PCD3 System

Protection Level
IP20

Base Material
Polycarbonate

Components
Opto-isolated input circuitry, LED channel indicators

Cooling System
Passive

Features
Hot-swappable, channel diagnostics, compact design

Thickness
Module thickness 21 mm

Rated Operation Voltage
24VDC

Rated Current
<10 mA per channel

Operating Voltage
24VDC

Protection Class
Class II

Connectivity Type
Rear connector to backplane

Way
16-channel

Panel Type
PLC Input Expansion

Current Rating
10 mA

Product Type
Digital Input Module

Material
Industrial-grade plastic and electronic components

Surface Finish
Matte

Standard
IEC 61131

Surface Color
Grey

Rated Voltage
24 VDC

Frequency (MHz)
DC Input (no frequency)

Dimension (L*W*H)
98mm x 145mm x 21mm

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
Status LEDs

Channel Status Indication
Individual LED for each input

Module Mounting
Plug-in for PCD3 backplane

Storage Temperature
-20°C to +70°C

Operating Temperature Range
0°C to +55°C

Relative Humidity
10-95%, non-condensing

Power Consumption
Approx. 60 mA @ 5V (from bus)

Isolation Voltage
500 V channel to bus

Number of Inputs
16 digital inputs

Reaction Time
<4 ms

Input Type
Potential-free contacts or voltage input (24VDC)

About SAIA-BURGESS PCD3.E165 INPUT MODULE

Experience grandiose performance with the SAIA-BURGESS PCD3.E165 INPUT MODULEan essential for modern industrial automation and process control. This fresh, limited stock input module offers lustrous reliability, featuring 16 valiant digital input channels, potential-free or voltage-input capability, and robust 500V isolation. Advance purchase ensures you secure this high-demand module, renowned for swift <4ms reaction time, individual LED indications, and elite IEC 61131 compliance. Crafted from industrial-grade polycarbonate and designed for hot-swappable convenience, it empowers seamless, secure integration into Saia PCD3 systems. Ideal for discerning professionals seeking durability and precision.

Versatile Industrial Control for Competitive Edge

The SAIA-BURGESS PCD3.E165 INPUT MODULE is designed for valiant industrial automation and advanced process control. Its 16 digital input channels suit demanding usage environments, while compact plug-in mounting grants effortless integration. The modules competitive advantages lie in its hot-swap capability, rapid response, and channel diagnostics with LED indicators. From manufacturing plants to process lines, this module elevates system performance reliably, making it an optimal choice for mission-critical automation infrastructure.

Professional Packaging, Certifications, and Global Delivery

Each SAIA-BURGESS PCD3.E165 INPUT MODULE is delivered with secure shipping, ensuring your order arrives intact for immediate deployment. Products meet international IEC 61131 standards and undergo rigorous quality checks for certification. Our efficient delivery process extends to major export markets worldwide. Once you complete your order, rest assured your module is professionally packed for maximized protection, ensuring a seamless journey from warehouse to your control panel. Trust us for timely, safe, and certified deliveries.

FAQs of SAIA-BURGESS PCD3.E165 INPUT MODULE:

Q: How is the SAIA-BURGESS PCD3.E165 INPUT MODULE typically used in industrial settings?

A: It is primarily used for adding reliable digital input channels in industrial automation and process control applications, facilitating real-time signal acquisition and monitoring through PLC expansion.

Q: What advantages does this module offer compared to standard input modules?

A: The module boasts swift reaction times under 4 ms, individual LED channel indications, hot-swapping ability, robust isolation, and compliance with IEC 61131, granting reliability and fast diagnostics.

Q: When should businesses consider advance purchase of this input module?

A: Due to its limited stock and high demand for critical automation upgrades, advance purchasing ensures uninterrupted project timelines and secures access to this reliable component.

Q: Where can this input module be integrated within an automation setup?

A: It is designed for plug-in mounting on Saia PCD3 backplanes, fitting control panels and PLC enclosures used in industrial and process control workflows.

Q: What is the certification standard for the SAIA-BURGESS PCD3.E165 INPUT MODULE?

A: It conforms to the IEC 61131 standard, ensuring international quality and interoperability within automation systems.

Q: How does the secure shipping process benefit customers?

A: Every module is professionally packed to prevent transit damage, ensuring that your order arrives in pristine condition for immediate use in your automation setup.
