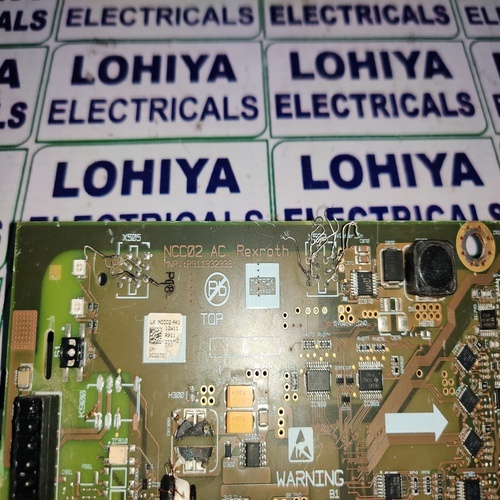

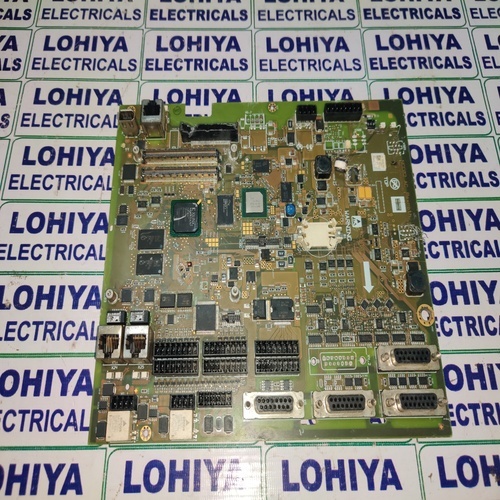

REXROTH R911332338 NCC02AC PCB CARD

Get a Price/Quote

REXROTH R911332338 NCC02AC PCB CARD Specification

Operating Temperature
0C to 55C

Humidity %
0-90% RH (non-condensing)

Surface Finish
Solder Mask, Screen Printed

Mounting Type
Plug-In/Slot Mount

Insulation Material
Epoxy Resin

Feature
High Reliability, Factory Calibrated, Plug-in Replacement

Efficiency
High Signal Integrity

Connector Type
DIN Edge Connector

Shape
Rectangular

Product Type
Industrial Controller PCB Card

Application
Bosch Rexroth Automation Systems, CNC Controllers

Protection Level
Standard PCB Protection

Rated Voltage
24 V DC

Energy Consumption
Low

Output Type
Signal/Control

Color
Green with Multicolor Components

Dimension (L*W*H)
Approx. 180mm x 100mm x 20mm

Weight
Approx. 350 g

Size
Standard Module Size

Input Voltage
24 V DC

Material
Epoxy Laminated PCB, Electronic Components

Connection Type
Edge Connector Terminal

Storage Temperature
-20°C to 70°C

Model Number
R911332338 NCC02AC

Compatibility
Rexroth Indramat Drive Controllers

Voltage Tolerance
±10%

Replacement Code
NCC02AC

PCB Thickness
1.6 mm

Response Time
Fast (typical for CNC Signal Cards)

RoHS Compliance
Yes

Static Protection
Standard ESD Precautions Required

PCB Layers
Multilayer

Manufacturer Part Number
R911332338

Life Span
>10 Years (under normal usage)

Service Code
As per Rexroth Manual

About REXROTH R911332338 NCC02AC PCB CARD

The REXROTH R911332338 NCC02AC PCB Card is a breathtaking, ace performer designed for Rexroth Indramat Drive Controllers. Ephemerally engineered with multilayer epoxy resin, it ensures high signal integrity, low energy consumption, and valiant compatibility. Select this highly reliable, factory-calibrated solution for standard or plugin-slot mountingperfect for quick replacements and promotion of operational excellence. Supporting a response time thats unmatched for CNC signal cards and crafted for a life span exceeding ten years, it seamlessly integrates into Bosch Rexroth automation environments, blending efficiency and robust protection.

Versatile Application and Enhanced Features

Widely used by automation engineers and CNC technicians, the REXROTH R911332338 NCC02AC PCB Card adapts seamlessly to Bosch Rexroth automation systems. Notable features include high reliability, standard ESD protection, and factory calibration. Its precision design supports plug-in replacement, making it a select module for diverse motion control and signal applications. This modules rectangular shape and solder-masked surface ensure optimal installation, serving demanding industrial automation surfaces.

Certification, Sample Policy, and Domestic Market Reach

This premium PCB card meets RoHS compliance standards and is manufactured using high-quality epoxy resin, assuring lasting performance. Order processing is streamlined to ensure the product is dispatched efficiently within the main domestic market. Sample policies are customer-centric, allowing clients to review the cards performance before completing large transactions. All shipments are inspected for standard compliance, reinforcing the REXROTH reputation for quality.

FAQs of REXROTH R911332338 NCC02AC PCB CARD:

Q: How is the REXROTH R911332338 NCC02AC PCB Card installed?

A: The card is designed for plug-in or slot mounting using a DIN edge connector, making the installation process straightforward and efficient.

Q: What are the key benefits of selecting this PCB card for Rexroth Indramat Drive Controllers?

A: Key benefits include high signal integrity, rapid response times, robust protection, low energy consumption, and a lifespan exceeding ten years under normal use.
