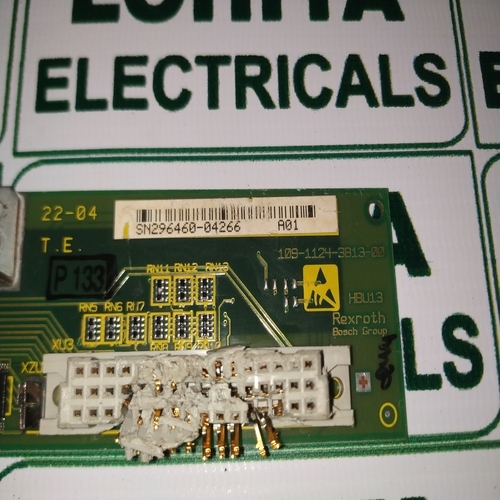

REXROTH 109-1124-3B13-00 HBU13 PCB CARD

Get a Price/Quote

REXROTH 109-1124-3B13-00 HBU13 PCB CARD Specification

Overheating Protection
NO

IP Rating
IP00 (unprotected, for internal use)

Mounting Type
Plug-In

Surface Finish
Solder Masked

Operating Temperature
0C to +60C

Feature
High reliability, Original OEM

Efficiency
High (Electronic)

Insulation Material
None (bare board)

Shape
Rectangular

Connector Type
Card Edge, Male Pin Header

Product Type
PCB Card

Application
Industrial Automation, HBU13 Control System

Protection Level
Standard PCB Protection

Frequency (MHz)
DC/Low Frequency

Rated Voltage
24V DC

Energy Consumption
Low

Output Type
Signal/Control

Color
Green

Dimension (L*W*H)
Approx. 180 mm x 110 mm x 25 mm

Weight
Approx. 200 g

Size
Standard

Input Voltage
24V DC

Connection Type
Edge Connector

Material
Fiberglass PCB, Electronic Components

Compatibility
HBU13 Drive Units and Systems

Part Number
109-1124-3B13-00 HBU13

Humidity %
10% to 90% (non-condensing)

Manufacturing Brand
Rexroth

Storage Temperature
-20°C to +70°C

ESD Protection
Not directly integrated - requires system level protection

Status Indicator
No LED or visual indicator

PCB Layer
Multi-Layer

About REXROTH 109-1124-3B13-00 HBU13 PCB CARD

Experience the undeniable merit of the REXROTH 109-1124-3B13-00 HBU13 PCB CARDan affordable, first-rate choice for industrial automation and HBU13 drive systems. This select component by the renowned Rexroth brand is engineered with premium fiberglass and multi-layer construction, ensuring high reliability for demanding environments. With limited stock available, this original OEM card features low energy consumption, standard PCB protection, and easy plug-in mounting. Despite no integrated ESD or overheating protection, its recognized performance and robust design make it a meritorious addition to your control system.

Versatility and Application Suitability

The REXROTH 109-1124-3B13-00 HBU13 PCB CARD is structured for seamless integration in industrial automation frameworks and HBU13 control systems. Its high efficiency and standard form factor make it ideal for both routine and specialized applications. The card is suitable for internal system use where reliable signal and control output are crucial. Designed for use within compatible HBU13 drive units, it streamlines control processes in demanding industries, supporting a range of automation tasks efficiently.

Shipped Goods, Delivery, and Domestic Market Valuation

Our shipped goods for the REXROTH 109-1124-3B13-00 HBU13 PCB CARD are available for prompt delivery, typically dispatching within a standard timeframe upon order confirmation. The FOB port is determined according to your domestic market location, ensuring convenience and transparency. Payment terms are flexible, designed to accommodate both local and international procurement requirements. The products valuation reflects its first-rate quality and the esteemed reputation of the Rexroth brand.

FAQs of REXROTH 109-1124-3B13-00 HBU13 PCB CARD:

Q: How can I integrate the REXROTH 109-1124-3B13-00 HBU13 PCB CARD into my control system?

A: The PCB card is designed for plug-in mounting and uses a card edge connector, allowing for straightforward integration into compatible HBU13 drive units and control systems.

Q: What are the main benefits of choosing this original Rexroth PCB card?

A: Selecting this card ensures high reliability, low energy consumption, and compatibility with industrial automation systems, backed by the renowned quality of Rexroth manufacturing.

Q: Where is the REXROTH 109-1124-3B13-00 HBU13 PCB CARD typically applied?

A: It is primarily used within industrial automation environments and HBU13 control systems, supporting a myriad of functions that require signal and control outputs.

Q: When should I consider system-level ESD protection for this PCB card?

A: Since the card does not feature direct ESD protection, it is recommended to implement system-level safeguards during installation to prevent potential static damage.

Q: What is the expected delivery time for shipped goods in the domestic market?

A: Delivery times may vary based on your location and the domestic market, but orders are generally processed and shipped promptly following payment and order confirmation.
