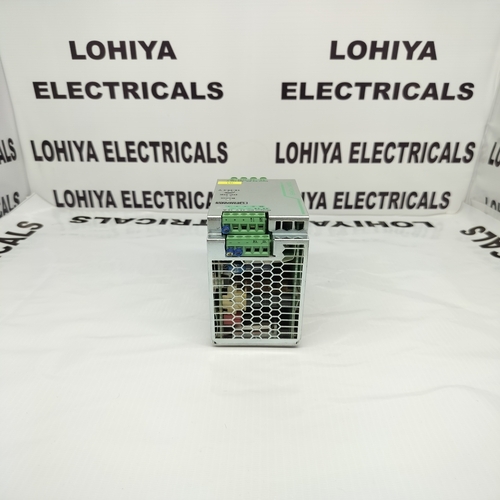

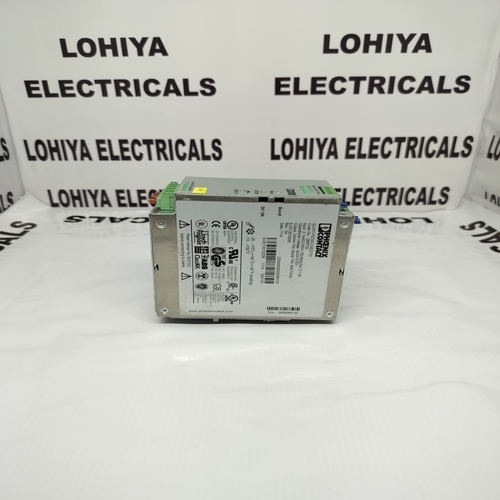

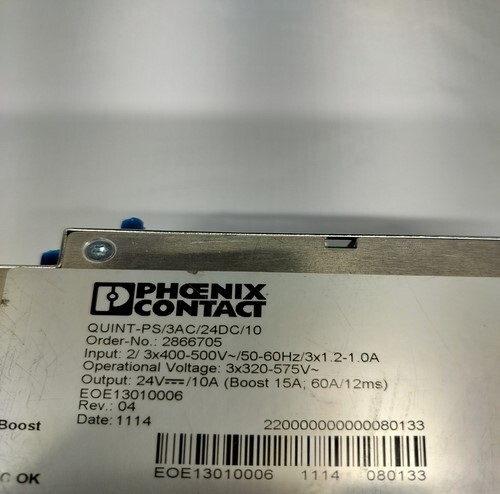

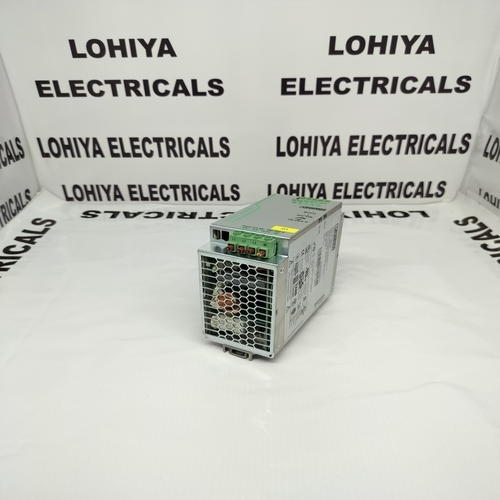

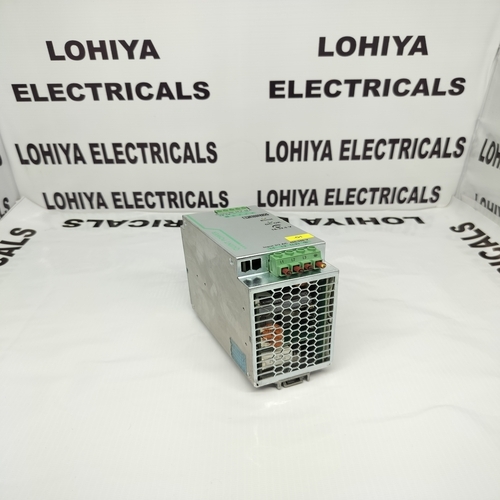

PHOENIX CONTECT QUINT-PS/3AC/24DC/10 POWER SUPPLY

Send Inquiry

Request To Call Back

PHOENIX CONTECT QUINT-PS/3AC/24DC/10 POWER SUPPLY

Get a Price/Quote

MOQ : 1 Piece

PHOENIX CONTECT QUINT-PS/3AC/24DC/10 POWER SUPPLY Specification

Output Current
10 A

Noise Level
<40 dB(A)

Connector Type
Screw Terminal

Power Factor
>0.95 at full load

Working Temperature
-25C to +70C

Cooling Method
Natural Convection

Features
Single and parallel operation, dynamic boost (up to 15 A for 5 s), active voltage regulation, signaling contacts

Application
Industrial Automation, Control Cabinets, Machine Building

Rated Current
10 A

Power Supply
QUINT-PS/3AC/24DC/10

Current Range
0 - 10 A

Rated Power
240 W

Phase
Three-phase

Output Type
DC

Operating Temperature
-25C to +70C

Product Type
DIN Rail Power Supply

Output Power
240 W

Output Frequency
50 Hz / 60 Hz

Input Voltage
3 x 320 V AC ... 575 V AC

Voltage Protection
Integrated short-circuit, overload, and overvoltage protection

Efficiency
94.6%

Material
Metal Housing

Line Regulation
< 0.1%

Storage Temperature
-40C to +85C

Weight
1.3 kg

Signal Output
DC OK Relay Contact

Protection Class
Class I (with PE connection)

Start-up Time
< 1 s (at 230 V AC full load)

Output Voltage
24 V DC

Mounting Type
DIN Rail TS35/7.5 or TS35/15

Ripple Voltage
< 50 mVpp

Cooling
Free Air Convection

MTBF
>500,000 hours (IEC 61709)

About PHOENIX CONTECT QUINT-PS/3AC/24DC/10 POWER SUPPLY

Markdown this Last Chance Offer on the PHOENIX CONTACT QUINT-PS/3AC/24DC/10, a first-string, gilt-edged power supply engineered for enlightened industrial automation. Delivering 24 V DC at an output current of 10 A and 240 W, it features gilt-edged protection with integrated short-circuit, overload, and overvoltage safeguards. The rugged metal housing fits DIN Rail mounting, and advanced features like dynamic boost and signal output set this supply apart. Optimal for demanding control cabinets and machine building-don't miss this exceptional opportunity.

Advanced Features and Versatile Usages

Enjoy the robust PHOENIX CONTACT QUINT-PS/3AC/24DC/10 with dynamic boost, active voltage regulation, and DC OK relay contact for seamless system monitoring. Its advanced protection makes it ideal for machine building, industrial automation, and control cabinets. This unit thrives in demanding conditions, confidently supporting both single and parallel operation. Gilt-edged construction ensures reliability, while natural convection cooling maintains a stable temperature range of -25C to +70C. Put your trust in this enlightened power supply for lasting performance.

Delivery Timeline, Export Markets, and Payment Methods

This product is quickly handed over to customers upon full charge confirmation, with minimal waiting periods. Our asking price covers dispatch across major export markets in India and beyond. Enjoy flexible payment terms tailored for bulk or urgent orders - be it advance payment or credit facility arrangements. Rely on prompt logistics and transparent policies for a smooth transaction; your power supply will be securely packaged and delivered as agreed, ensuring efficiency and satisfaction from order to installation.

FAQ's of PHOENIX CONTECT QUINT-PS/3AC/24DC/10 POWER SUPPLY:

Q: How does the PHOENIX CONTACT QUINT-PS/3AC/24DC/10 ensure reliable operation in industrial settings?

A: The power supply features integrated short-circuit, overload, and overvoltage protection, a rugged metal housing, and high-efficiency (94.6%) operation, guaranteeing reliability in harsh industrial environments.

Q: What are the special benefits of the dynamic boost feature?

A: Dynamic boost provides up to 15 A for 5 seconds, allowing the supply to handle short-term overloads during start-up or peak load without compromising performance or safety.

Q: When will the power supply be handed over after payment?

A: Once the full charge is received, the product is promptly prepared, securely packaged, and handed over for delivery with minimal delay, ensuring timely arrival to your facility.

Q: Where can this power supply be mounted?

A: The unit is designed for DIN Rail mounting (TS35/7.5 or TS35/15), making it suitable for installation in control cabinets and industrial panels.

Q: What is the process for ensuring safe export and delivery of the power supply?

A: After confirming the order and payment, the product is securely packaged to prevent damage during transit. Exports are managed in compliance with industry standards to guarantee safe and timely delivery.

Q: How can this power supply enhance the performance of my automation system?

A: With its active voltage regulation and signaling contacts, this power supply ensures stable output and easy monitoring, significantly improving the uptime and reliability of your automation system.
