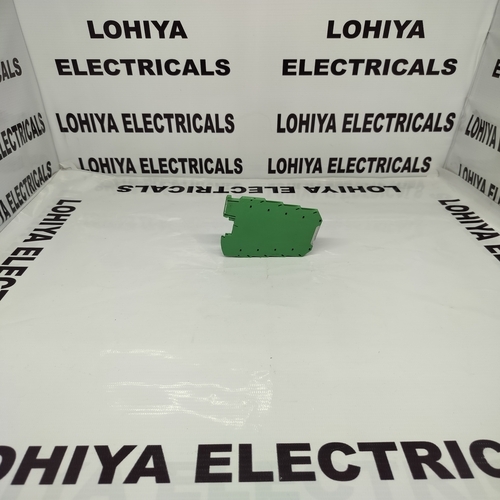

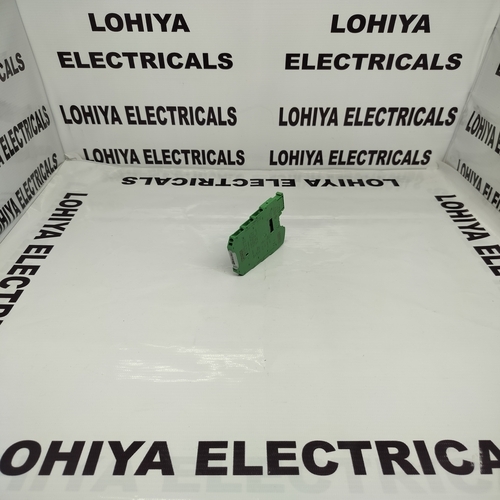

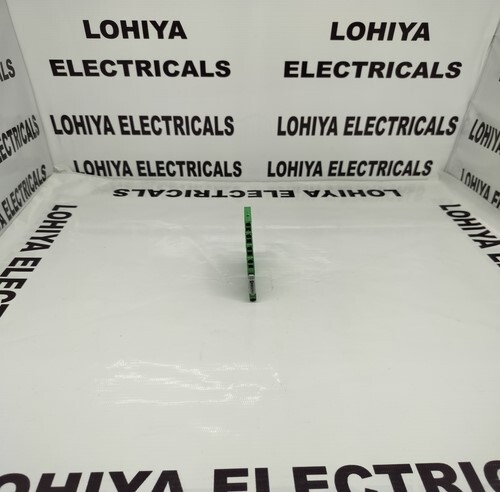

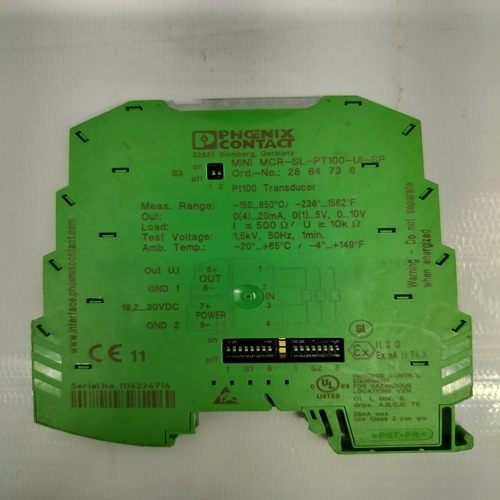

PHOENIX CONTECT MINI MCR-SL-PT100-UI-SP SIGNAL CONDITIONER

Get a Price/Quote

MOQ : 1 Piece

PHOENIX CONTECT MINI MCR-SL-PT100-UI-SP SIGNAL CONDITIONER Specification

Cooling Method
Natural convection

Current Range
0(4)...20 mA

Power Supply
24 V DC (10%)

Features
Screw connection terminal blocks, narrow design, signal accuracy, configurable output, compact MINI format

Application
Isolation, conversion, amplification of sensor signals (PT100), industrial automation

Operating Temperature
-25C to +60C

Output Current
0(4)...20 mA

Output Type
Current or voltage (configurable)

Connector Type
Screw terminal

Working Temperature
-25C to +60C

Product Type
Signal Conditioner

Input Voltage
24 V DC

Voltage Protection
Transient protection, surge voltage withstand

Material
Plastic housing

Storage Temperature
-40C to +85C

Weight
Approx. 62 g

Dimensions (W x H x D)
6.2 mm x 93.1 mm x 102.5 mm

Mounting Type
DIN Rail (NS 35/7.5)

Input Signal
PT100 (2-, 3-, or 4-wire connection)

Power Consumption
< 0.7 W

Accuracy
0.1 % (of full scale)

Output Signal
0(4)...20 mA or 0...10 V (selectable)

Channel Type
Single channel

Response Time
< 10 ms

Status Indication
Green LED (supply voltage ok)

Standards/Approvals
CE, UL, cUL Listed

Isolation Voltage
2.5 kV (input/output/power supply)

About PHOENIX CONTECT MINI MCR-SL-PT100-UI-SP SIGNAL CONDITIONER

Find the supreme solution for signal isolation and conversion with the PHOENIX CONTACT MINI MCR-SL-PT100-UI-SP Signal Conditioner. Unlock extraordinary accuracy of 0.1% (full scale) and rare, rapid response times under 10 ms. With lofty isolation voltage at 2.5 kV and selectable output-0(4)...20 mA or 0...10 V-you enjoy exceptional flexibility. This DIN rail-mounted device ensures durable protection against surges and transient voltage. Its ultra-compact, 6.2 mm-wide design and green LED indicator make for effortless integration and supreme status monitoring in industrial environments.

Applications & Suitability

The PHOENIX CONTACT MINI MCR-SL-PT100-UI-SP Signal Conditioner excels in industrial automation, ensuring precise isolation, conversion, and amplification of PT100 sensor signals. It is suitable for use in environments where reliable data transmission is critical, including factory automation, process control, and instrumentation. Designed for single-channel applications, it supports both current and voltage outputs, making it highly adaptable for diverse use types across industries requiring supreme accuracy and robust electrical protection.

Sample Policy, Certifications & Domestic Market

Samples of the PHOENIX CONTACT MINI MCR-SL-PT100-UI-SP are delivered upon request, typically with a nominal charge depending on the list price. It meets rigorous industry standards, holding CE, UL, and cUL certifications. The main domestic market is India, supported by authorized suppliers and traders. Buyers benefit from compliant, high-quality products with full certification, ensuring dependable operation and straightforward procurement processes within the country.

FAQ's of PHOENIX CONTECT MINI MCR-SL-PT100-UI-SP SIGNAL CONDITIONER:

Q: How is the PHOENIX CONTACT MINI MCR-SL-PT100-UI-SP Signal Conditioner installed?

A: The signal conditioner is designed for easy DIN rail (NS 35/7.5) mounting, and uses screw connection terminal blocks for swift and secure wiring.

Q: What applications is this signal conditioner most suitable for?

A: It is ideal for use in industrial automation, sensor signal isolation, conversion, amplification, and environments requiring reliable data transmission from PT100 sensors.

Q: When should I choose current or voltage as my output type?

A: Choose current (0(4)...20 mA) for long distance transmission or in high-interference environments; use voltage (0...10 V) when interfacing with voltage-based control systems or shorter wiring runs.

Q: Where can I purchase the PHOENIX CONTACT MINI MCR-SL-PT100-UI-SP in India?

A: This signal conditioner is available through authorized suppliers and traders specializing in automation products across India.

Q: What are the main benefits of using this signal conditioner in my setup?

A: It provides extraordinary signal accuracy, rapid response times, robust isolation (2.5 kV), compact design, configurable outputs, and enhanced protection against surges and transients, ensuring supreme reliability.
