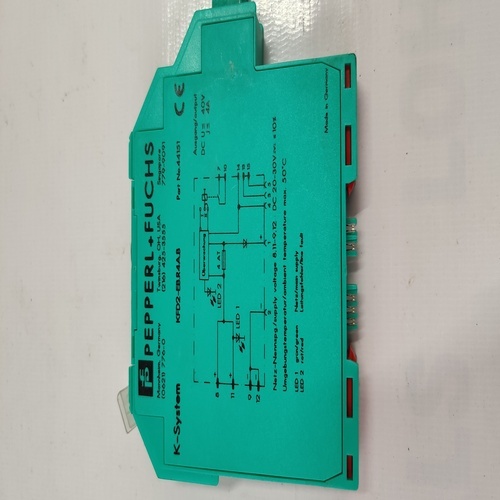

PEPPERL FUCHS KFD2-EB.R4A.B SWITCH AMPLIFIER

Send Inquiry

Request To Call Back

PEPPERL FUCHS KFD2-EB.R4A.B SWITCH AMPLIFIER

Get a Price/Quote

PEPPERL FUCHS KFD2-EB.R4A.B SWITCH AMPLIFIER Specification

Connectivity Type
Screw terminals

Frequency
0 Hz to 5 kHz

IP Rating
IP20

Protection Level
IP20

Current
4 mA (input); 250 mA (output)

Features
Explosion protection, galvanic isolation, LED indication, compact design

Pole Type
Single relay contact

Phase
Single phase

Output
Relay (SPDT), max. 250 V AC/6 A

Switch Type
Relay switch (SPDT)

Usage & Applications
Industrial automation, process control, signal transfer

Installation Type
DIN rail mounting

Display
LED status indicators

Sensor Type
NAMUR sensor/Contact

Mounting Type
DIN rail enclosure

Product Type
Switch Amplifier

Operating Temperature
-20C to +60C

Working Temperature
-20C to +60C

Input
Digital input, Namur sensor or contact

Application
Signal isolation and transfer for sensors/switches

Supply Voltage
20-30 V DC

Accuracy
High signal integrity and reliability

Dimension (L*W*H)
Approx. 115 mm x 23 mm x 99 mm

Weight
Approx. 150 g

Terminal type
Screw terminal

Signal Transmission
Galvanic isolated

Power Consumption
2.3 W

Reverse Polarity Protection
Available

Compatible input devices
Proximity switches, contacts

Response Time
<10 ms

Typical Applications
Sensor signal transfer in hazardous environments

Status indication
Power and switch state LED

Relay Output Rating
max. 6 A, 250 V AC

Environmental Standards
RoHS, EMC compliant

Hazardous Area Use
Approved for use in Ex zones (Zone 2/22)

Approvals/Certificate
ATEX, IECEx, UL, CSA

Ambient Humidity
95% RH (non-condensing)

Electrical Isolation
Input/Output: 2 kV

Housing Material
Polycarbonate enclosure

Model Number
KFD2-EB.R4A.B

About PEPPERL FUCHS KFD2-EB.R4A.B SWITCH AMPLIFIER

Discover the paragon of industrial signal amplification with the PEPPERL FUCHS KFD2-EB.R4A.B Switch Amplifier. Designed exclusively for hazardous area environments, this first-rate device offers splendid customization for various sensor and switch applications. Engineered with a rugged polycarbonate enclosure, it provides galvanic isolation, robust relay output, and comprehensive electrical protection. Featuring high signal integrity, reverse polarity protection, and LED status indicators, this amplifier is both reliable and efficient. Grab yours now and experience first-class safety and performance tailored for modern industrial automation and process control needs.

Advantages and Commercial Applications of the KFD2-EB.R4A.B

Benefit from exceptional reliability and explosion protection with the PEPPERL FUCHS KFD2-EB.R4A.B Switch Amplifier. Its chief advantage lies in its customizable setup and splendid operational integrity, making it ideal for commercial uses in industrial automation and process control. Capable of handling digital signals via NAMUR sensors or contacts, it supports application media such as proximity switches, ensuring precise signal transfer in hazardous and standard environments alike.

Sample Policy, Export Markets, and Certifications Information

Samples of the KFD2-EB.R4A.B Switch Amplifier can be handed over quickly upon request, ensuring you get the lowest price on bulk orders. We facilitate international shipment to main export markets, including India and other global destinations. Backed by robust certifications such as ATEX, IECEx, UL, CSA, and full RoHS/EMC compliance, this device assures you of world-class standards for safety and performance in every unit delivered.

FAQs of PEPPERL FUCHS KFD2-EB.R4A.B SWITCH AMPLIFIER:

Q: How does the PEPPERL FUCHS KFD2-EB.R4A.B ensure signal integrity in hazardous environments?

A: The amplifier utilizes galvanic isolation and robust electrical protection, maintaining high signal integrity even in explosive or harsh industrial settings.

Q: What input devices are compatible with this switch amplifier?

A: It is compatible with NAMUR sensors and contact-based digital input devices, including proximity switches and contacts for versatile application.

Q: When should the KFD2-EB.R4A.B be selected over standard signal amplifiers?

A: Choose this model when you require explosion protection, Ex zone certification, rapid response times, and reliability in industrial or hazardous area environments.

Q: Where is the amplifier best installed for optimal performance?

A: For best results, mount it on a DIN rail within a control panel in industrial environments, ensuring compliance with IP20 protection standards.

Q: What benefits does this amplifier offer for process automation?

A: It delivers quick signal relay (under 10 ms), electrical isolation, LED status indication, and supports commercial usage across industrial automation and process control applications.

Q: How is the PEPPERL FUCHS KFD2-EB.R4A.B shipped and what certifications does it carry?

A: The amplifier is swiftly shipped to your location with all certifications in place, including ATEX, IECEx, UL, CSA, RoHS, and EMC, guaranteeing safety and compliance.
