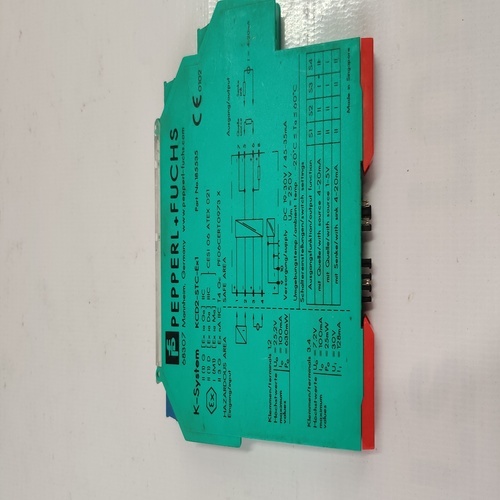

PEPPERL FUCHS KCD2-STC-EX1 SWITCH AMPLIFIER

Get a Price/Quote

PEPPERL FUCHS KCD2-STC-EX1 SWITCH AMPLIFIER Specification

Mounting Type
DIN Rail Mount

Pole Type
Single Pole

Output
1 relay contact, SPDT (form C)

Protection Level
Short-circuit proof, overload proof

Switch Type
Relay Output

Features
LED indication (green for power, yellow for output); Reverse polarity protection; Fast response time

Connectivity Type
Screw terminals

Current
50 mA

Installation Type
DIN Rail Mounting

Display
No Display

IP Rating
IP20

Usage & Applications
Isolated barrier for hazardous area instrumentation

Frequency
5 kHz

Sensor Type
NAMUR sensor, mechanical contact

Product Type
Switch Amplifier

Operating Temperature
-20C to +60C

Working Temperature
-20C to +60C

Input
1-channel input, NAMUR sensor or dry contact

Application
Intrinsic safety applications, signal transfer from hazardous area

Supply Voltage
20 V DC to 30 V DC

Dimension (L*W*H)
18 mm x 114 mm x 124 mm

Weight
Approx. 110 g

Relay Contact Ratings
250 V AC/2 A; 40 V DC/2 A

Terminal Type
Screw terminals, pluggable

Approvals/Certificates
ATEX, IECEx, cULus, SIL 2 (IEC 61508)

Ambient Storage Temperature
-40C to +80C

Housing Material
Plastic (polycarbonate)

Isolation Type
3-way isolation (input/output/power supply)

Model Number
KCD2-STC-EX1

Power Consumption
1.2 W

Response Time
On: 20 ms, Off: 20 ms

About PEPPERL FUCHS KCD2-STC-EX1 SWITCH AMPLIFIER

Unlock ephemeral savings and experience a triumphant leap in intrinsic safety applications with the PEPPERL FUCHS KCD2-STC-EX1 Switch Amplifier. Engineered for crackerjack reliability, this wondrous 1-channel, relay output amplifier harnesses advance purchase value with its 3-way isolation, short-circuit and overload proof design, and fast response times (20ms). With ATEX, IECEx, cULus, and SIL 2 approvals, its robust polycarbonate housing ensures protection in hazardous areas. The device supports NAMUR sensors and dry contacts, features pluggable screw terminals, and showcases LED indication for seamless integration in critical environments. Designed for DIN rail mounting, this switch amplifier embodies safety, efficiency, and forward-thinking performance.

Versatile Usage Across Hazardous Zones

The PEPPERL FUCHS KCD2-STC-EX1 Switch Amplifier stands out as a specialist in signal transfer from hazardous areas, supporting both NAMUR sensors and mechanical contacts. Its general use encompasses isolated barrier functions for safety instrumentation, making it ideal for a multitude of industries where intrinsic safety is paramount. The device finds application in control rooms, process automation panels, and chemically sensitive zones. With both specific and broad usability, it ensures reliable signal integrity and protection across demanding environments.

Market Availability and Sample Dispatch Information

The device is available for immediate dispatch across major domestic markets in India, ensuring prompt transportation to client sites. With its recognized market value and reliability, the PEPPERL FUCHS KCD2-STC-EX1 is supplied through established traders and suppliers, primarily via FOB ports. A flexible sample policy enables evaluation of product fit before bulk procurement. Swift logistics and streamlined documentation facilitate timely, secure delivery, reinforcing trust with partners and enhancing operational efficiency for customers.

FAQs of PEPPERL FUCHS KCD2-STC-EX1 SWITCH AMPLIFIER:

Q: How does the PEPPERL FUCHS KCD2-STC-EX1 ensure safety in hazardous area applications?

A: The amplifier provides 3-way isolation (input, output, power supply), relay output, and approvals such as ATEX, IECEx, cULus, and SIL 2, guaranteeing intrinsic safety and reliability in hazardous zones.

Q: What types of sensors and contacts are compatible with this switch amplifier?

A: It supports 1-channel input for both NAMUR proximity sensors and mechanical dry contacts, making it versatile for various industrial applications.

Q: Where can the KCD2-STC-EX1 Switch Amplifier be installed?

A: Thanks to its DIN rail mounting design and compact size, it is ideal for installation within control panels, hazardous area junction boxes, and other industrial enclosures.

Q: What benefits does advance purchase of this amplifier provide?

A: Advance purchase secures competitive savings, guarantees stock availability for scheduled projects, and assures timely integration into safety systems without procurement delays.

Q: What is the process for ordering samples or evaluating the device?

A: Potential buyers may request samples under the suppliers flexible policy, allowing hands-on evaluation prior to large-scale orders, ensuring the amplifier meets specific project requirements.
