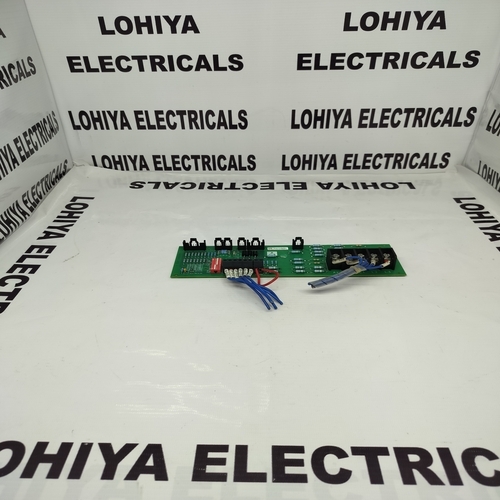

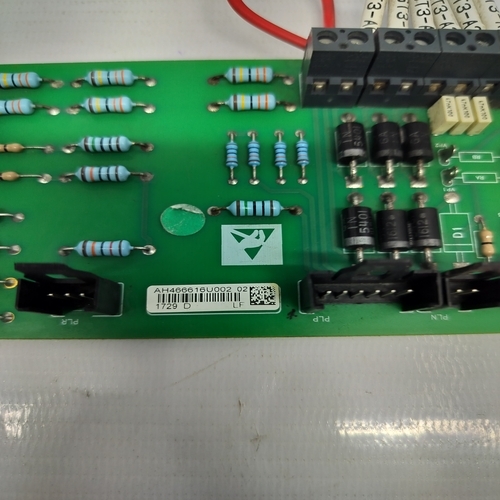

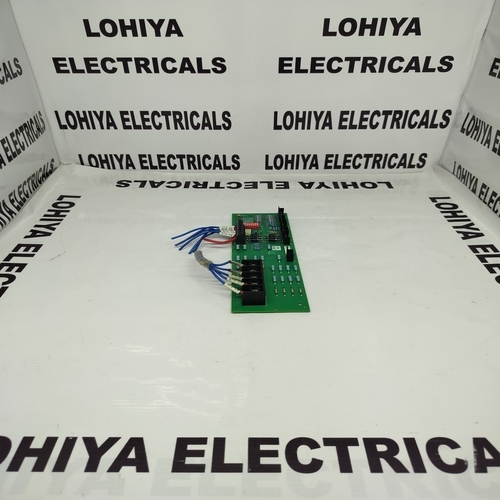

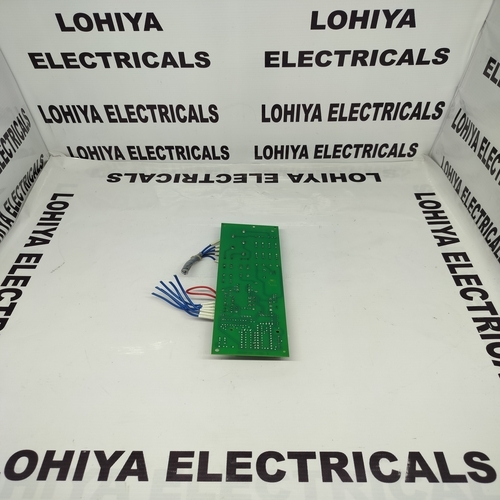

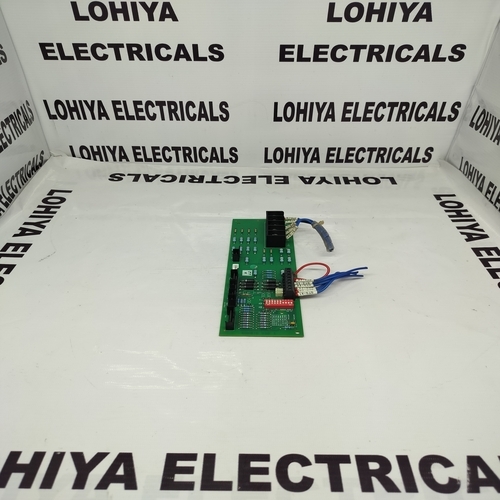

PARKER AH466616U002 PCB CARD

Get a Price/Quote

MOQ : 1 Piece

PARKER AH466616U002 PCB CARD Specification

Power Factor
N/A (Not applicable)

Shape
Rectangular

Insulation Material
Epoxy Resin (PCB)

Connector Type
Screw Terminal / Edge

Feature
High Reliability, Multi-Circuit

Efficiency
Typical for PCB circuits

Humidity %
5% - 95% RH Non-Condensing

Operating Temperature
-20C to +65C

IP Rating
Not Rated / PCB level

Overheating Protection
Provided by External System

Surface Finish
Solder Masked, Silkscreen Print

Mounting Type
Panel/Enclosure Mount or Card Slot

Product Type
PCB Card

Application
Industrial Automation, Control Panels

Protection Level
Standard (Depends on Installation)

Frequency (MHz)
50/60 Hz Supported

Rated Voltage
24 VDC

Energy Consumption
Low Power PCB

Output Type
Signal/Control Outputs

Color
Green (PCB) with Multi-colour Components

Dimension (L*W*H)
140 mm x 80 mm x 15 mm (Approx.)

Weight
220 g

Input Voltage
24 VDC

Phase
Single Phase (Application Dependent)

Size
Standard PCB Size

Connection Type
Screw Terminal / Edge Connector

Material
Fiberglass PCB, Electronic Components

Compliance
RoHS Compliant

PCB Layer
Double-sided

Model Number
AH466616U002

Component Type
Mixed Through-hole and SMD

PCB Type
Industrial Control PCB

Voltage Tolerance
10%

PARKER AH466616U002 PCB CARD About

Unlock the performance of elite industrial control with the PARKER AH466616U002 PCB Card, an enviable and sought-after solution for advanced automation. This classic double-sided, RoHS compliant PCB sets industry standards with a robust fiberglass build, supporting both through-hole and SMD components. Designed for reliability and low energy consumption, it operates at 24 VDC and 50/60 Hz, ensuring resilient signal and control outputs. Its standard size, high-reliability multi-circuit design, and impeccable solder-masked surface make it the ultimate choice for automated control panels. Experience the benefits of trusted efficiency and seamless integration.

PARKER AH466616U002: Features & Applications

This classic PCB card boasts elite features such as high reliability, multi-circuit capability, and a robust fiberglass base. Its double-sided layout and solder-masked finish cater to environments where durability and consistent performance are critical. Ideally suited for industrial automation, control panels, and signal management, this card is a sought-after selection across machine manufacturing, process lines, and commercial protection systems. Users enjoy enviable operational stability, making it a preferred choice for diverse applications needing dependable automation.

Delivery Time & Packaging for Global Market

Goods are shipped promptly, with delivery times depending on destination-typically 5-10 working days within India and slightly longer internationally. Carefully packed and dispatched in anti-static, moisture-resistant materials, each PARKER AH466616U002 PCB Card ensures pristine arrival at your site. Packaging adheres to global standards to maintain product integrity during transit. Major export markets include Asia, Europe, and the Middle East, reflecting a trusted presence among global industrial automation suppliers and traders.

FAQ's of PARKER AH466616U002 PCB CARD:

Q: How can the PARKER AH466616U002 PCB Card be used in industrial automation systems?

A: The PARKER AH466616U002 is engineered for application in automation systems, where it controls and manages signal outputs in control panels and machinery, facilitating reliable system operation.

Q: What is the process for installing this PCB card in control panels?

A: Installation is straightforward, using either the screw terminal or edge connector options. The card mounts easily into panel enclosures or card slots, with external overheating protection recommended as per system design.

Q: When should you consider using this model for your projects?

A: Opt for the AH466616U002 when you require a high-reliability, double-sided PCB card with low power consumption for industrial automation, control, or signal distribution applications.

Q: Where does the PARKER AH466616U002 PCB Card find its most common commercial applications?

A: This PCB card is widely used in sectors such as manufacturing automation, commercial process control, and industrial protection systems that demand stability and multi-circuit functionality.

Q: What benefits does its RoHS compliance offer to users?

A: RoHS compliance ensures the card adheres to strict environmental and safety regulations, offering users peace of mind regarding reduced hazardous material content and enhanced workplace safety.
