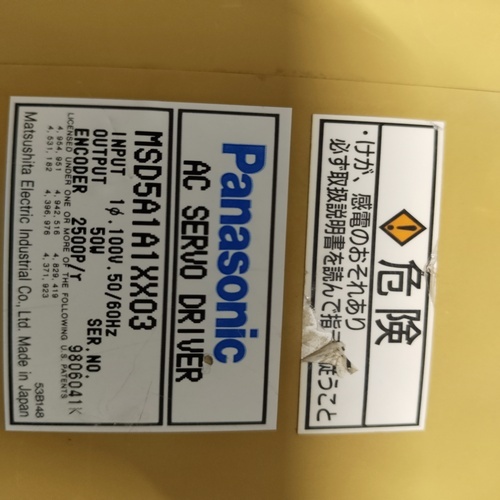

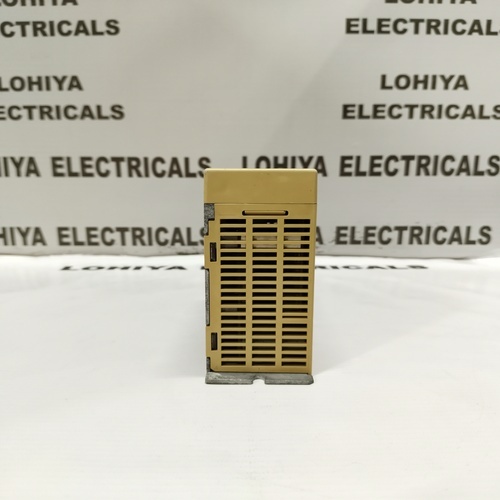

PANASONIC MSD5A1A1XX03 AC SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

PANASONIC MSD5A1A1XX03 AC SERVO DRIVE Specification

Control System
Servo Control (Position, Speed, Torque)

Protection Class
Class I

Current Rating
5A

Base Material
Aluminum

Rated Insulation Voltage
250V AC

Rated Current
5A

Cooling System
Integrated Cooling Fan

Panel Type
Digital

Way
Single

Connectivity Type
RS232, Pulse, Analog

Protection Level
IP20

Cabinet Material
Aluminum

Rated Operation Voltage
220V AC

Thickness
Standard

Operating Voltage
200-240V AC

Features
Overload Protection, Fault Diagnosis System, Compact Design

Components
Control Board, Power Circuit, Cooling Fan

Cover Material
ABS Plastic

Product Type
AC Servo Drive

Material
Industrial grade components

Surface Finish
Textured

Standard
CE, UL, RoHS compliant

Surface Color
Black

Rated Voltage
200-240V AC

Frequency (MHz)
50/60Hz

Maximum Output Current
5A

Dimension (L*W*H)
160mm x 110mm x 50mm

Application
Industrial Automation, CNC Machinery, Robotics

IP Rating
IP20

Display Type
LED Status Display

Input Phase
Single/Three Phase

Mounting Type
Panel Mount

Model Number
MSD5A1A1XX03

Response Time
High-speed response

Weight
1.25 kg

Vibration Resistance
Up to 5.9 m/s²(10 to 60 Hz)

Operation Modes
Position / Speed / Torque control

Encoder Feedback
Supported

Motor Power Supported
0.4kW to 0.75kW

Ambient Temperature
0°C to 55°C

Storage Temperature
-20°C to 60°C

Safety Features
Electronic lock, Overcurrent/Overvoltage protection

Isolation
Optical and electrical isolation for signals

Communication Interface
RS232/RS485

PANASONIC MSD5A1A1XX03 AC SERVO DRIVE About

Discover the rare PANASONIC MSD5A1A1XX03 AC SERVO DRIVE, blending eminent performance with a compact, radiant design. Jump on this opportunity to acquire the latest solution for seamless industrial automation, robotics, and CNC machinery. Praiseworthy for its high-speed response and robust safety features, it supports both single and three-phase inputs and motor powers from 0.4kW to 0.75kW. With a CE, UL, and RoHS compliant build, optical/electrical isolation, and user-friendly RS232/485 communication, this model defines reliability in a textured black industrial-grade finishsupplied by an eminent trader in India.

Versatile Applications, Advanced Features

The PANASONIC MSD5A1A1XX03 AC SERVO DRIVE is engineered for demanding environments such as industrial automation, CNC machinery, and robotics. Its robust panel mount design ensures secure installation, while a digital panel and LED display provide clear operational status. Integrated features like electronic lock, fault diagnosis, and overload protection offer peace of mind. Optical and electrical isolation amplify reliability, making it an ideal solution for use in challenging production surface applications and continuous operation.

Global Market Reach and Certifiable Value

Delivered globally to meet the needs of prominent industries, the PANASONIC MSD5A1A1XX03 commands a praiseworthy market value thanks to its international certificationsCE, UL, and RoHS. List price is competitive, reflecting high quality and value. Samples are often available for evaluation before mass deployment, enhancing customer experience. Exported to regions requiring top-notch automation solutions, this models reliability and compliance ensure it meets varied operational and regulatory demands in the global marketplace.

FAQs of PANASONIC MSD5A1A1XX03 AC SERVO DRIVE:

Q: How does the PANASONIC MSD5A1A1XX03 enhance industrial automation processes?

A: The drive delivers high-speed response, multi-mode control (position, speed, torque), and built-in protection features, optimizing efficiency and equipment safety in automation applications.

Q: What are the main benefits of its optical and electrical isolation?

A: Optical and electrical isolation protect critical signals from interference and electrical faults, ensuring reliable, uninterrupted performance and easier troubleshooting.

Q: Where can the PANASONIC MSD5A1A1XX03 AC Servo Drive be installed?

A: With its panel-mount design, the drive is suitable for installation within control cabinets and panels in various industrial environments, including automation lines and CNC machinery.

Q: When is it advisable to use the overload and fault diagnosis features?

A: These features should be active during all operations to automatically detect and respond to overcurrent or fault conditions, thus safeguarding connected equipment and reducing downtime.

Q: What type of communication interfaces does this model support?

A: The drive supports RS232 and RS485 communication, ensuring versatile connectivity with modern control systems, supporting both analog and pulse signals for varied integration needs.
