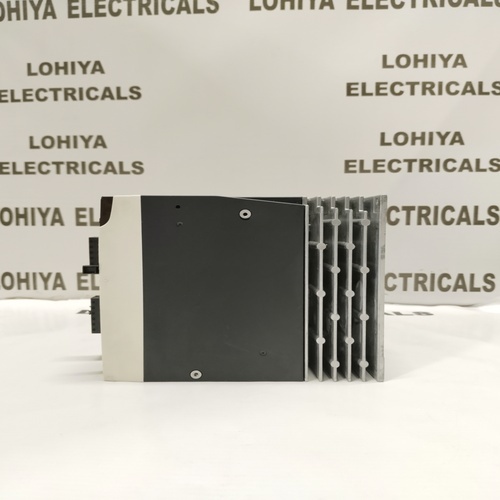

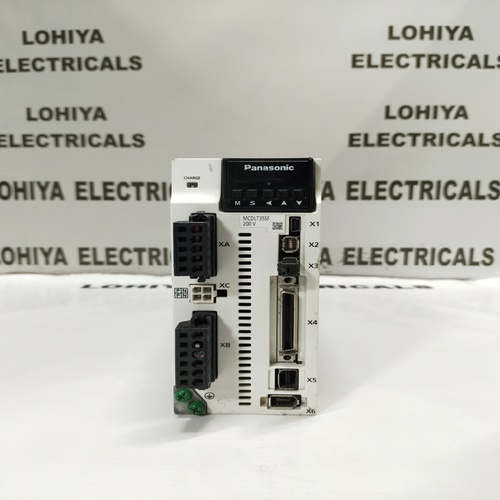

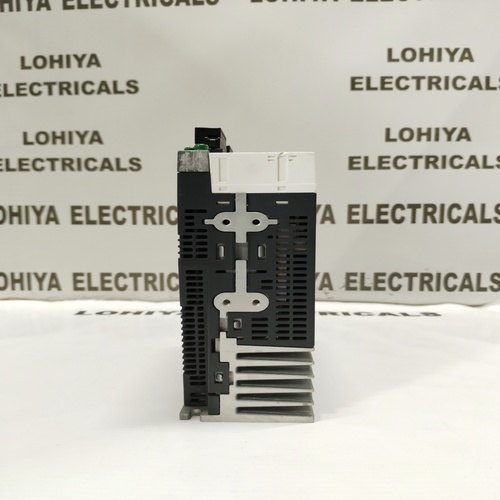

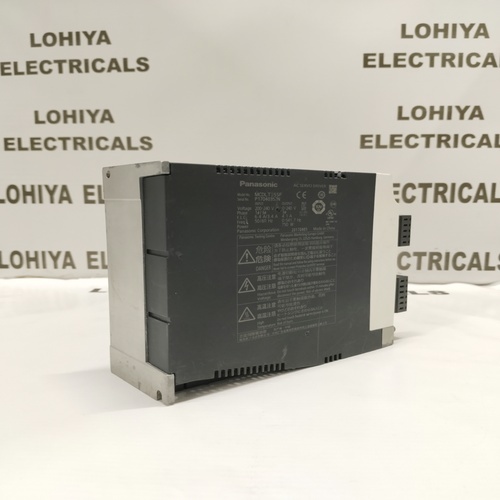

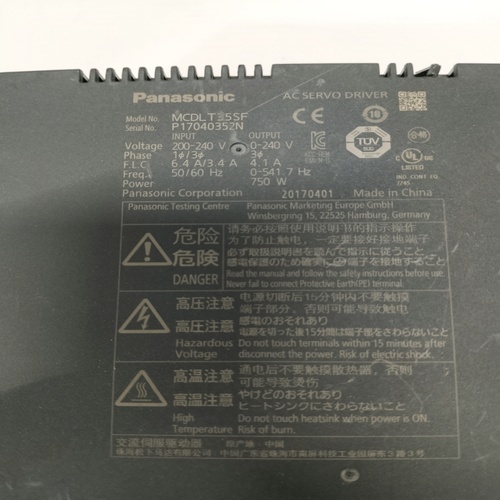

PANASONIC MCDLT35SF AC SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

PANASONIC MCDLT35SF AC SERVO DRIVE Specification

Cabinet Material
Rigid Metal Enclosure

Protection Level
Overcurrent, Overvoltage, Short Circuit

Rated Insulation Voltage
Over 500V AC

Current Rating
Up to 12.5A

Thickness
Compact Form Factor (approx. 120 mm)

Way
Single/Three Phase Input (Depending on Model)

Features
Auto-Tuning, In-Built Safety, High Precision

Rated Operation Voltage
200V AC

Control System
Vector Control, Position/Speed/Torque Control

Connectivity Type
RS232/RS485 Communication Port

Cooling System
Forced Air Cooling

Panel Type
Digital LED/LCD

Base Material
Reinforced Plastic & Metal

Cover Material
ABS Plastic

Operating Voltage
200-230V AC

Components
IGBT Module, Power Supply, Signal Processor

Protection Class
Class I

Rated Current
7.5A

Product Type
AC Servo Drive

Material
Industrial Grade Electronic Components

Surface Finish
Matte

Standard
International CE, RoHS Compliant

Surface Color
Standard Grey

Rated Voltage
200-230V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
12.5A

Dimension (L*W*H)
Approx. 240 x 120 x 150 mm

Application
Industrial Automation, CNC Machines, Robotics

IP Rating
IP20

Display Type
7-Segment LED Display

Model Number
MCDLT35SF

Compatible Motor
AC Servo Motor (50W to 3.5kW)

Communication Interface
RS232, RS485, Encoder Port

Storage Temperature
-20C to +65C

Operating Temperature Range
0C to +55C

Maximum Output Power
3.5kW

Supported Languages
English / Japanese UI

Braking System
Built-in Dynamic Braking Unit

Mounting Type
Panel Mount / DIN Rail Mount

Display
Status, Error Codes

Weight
Approx. 2.7 kg

Vibration Resistance
5.9 m/s2 (10 to 55 Hz)

Safety Functions
Overload, Overvoltage, Undervoltage, Overheat, Short Circuit, Overcurrent Protection

Feedback
Incremental Encoder (supports multi-turn absolute encoders)

Control Method
Vector Control, Speed/Torque/Position Loop Control

Ambient Humidity
Below 90% RH (non-condensing)

PANASONIC MCDLT35SF AC SERVO DRIVE About

The PANASONIC MCDLT35SF AC SERVO DRIVE is an affordable yet top-tier industrial solution offered at a special rate for discerning professionals. Despite its prodigious performance, this meritorious device comes with a discount for bulk orders, making it accessible for supplier and trader networks across India. Engineered with industrial-grade electronics and compliant with international CE and RoHS standards, it supports AC servo motors from 50W to 3.5kW with advanced vector control. Its robust protection features and versatile connectivity ensure reliable automation for CNC machines and robotics.

PANASONIC MCDLT35SF AC SERVO DRIVE: Usage & Competitive Edge

Designed for industrial automation, CNC machines, and robotics, the MCDLT35SF excels with its speed, torque, and position loop control. Its primary competitive advantages include prodigious precision, auto-tuning features, and multi-language support. This meritorious drive offers superior vibration resistance, high output power, and is suited for applications demanding reliability and efficiency, cementing its top-tier status among panel mount and DIN rail AC servo drives.

PACKAGING & DOMESTIC SUPPLY OF PANASONIC MCDLT35SF AC SERVO DRIVE

Products are securely packed using reinforced plastic and rigid metal enclosure, ensuring protection during exchange and quick dispatch. The main domestic market is India, serviced by a network of reliable suppliers and traders. With prompt delivery and consistent supply ability, the PANASONIC MCDLT35SF is delivered directly to your facility, guaranteeing minimal lead times and maximizing operational uptime for industrial clients.

FAQs of PANASONIC MCDLT35SF AC SERVO DRIVE:

Q: How does the PANASONIC MCDLT35SF AC SERVO DRIVE enhance industrial automation?

A: It utilizes advanced vector control and multi-loop feedback systems to provide precise speed, torque, and position management, ensuring optimized performance in automation, CNC, and robotics applications.

Q: What are the competitive advantages of choosing the MCDLT35SF servo drive?

A: The drive combines affordability with top-tier precision, featuring auto-tuning, comprehensive safety protections, multi-language support, and prodigious output power, setting it apart from comparable units.

Q: Where is the MCDLT35SF commonly used in India?

A: This servo drive is predominantly used in industrial automation settings, including CNC machines, robotics, and various manufacturing processes supplied across India by trusted traders and suppliers.

Q: What protection and safety functions does the MCDLT35SF offer?

A: It provides overload, overvoltage, undervoltage, overheat, short circuit, and overcurrent protection, ensuring reliable and safe operation throughout its working lifecycle.

Q: How quickly can the PANASONIC MCDLT35SF be delivered after purchase?

A: With quick dispatch and efficient exchange procedures, suppliers offer minimal lead times, allowing for rapid delivery and immediate integration into existing industrial systems.
