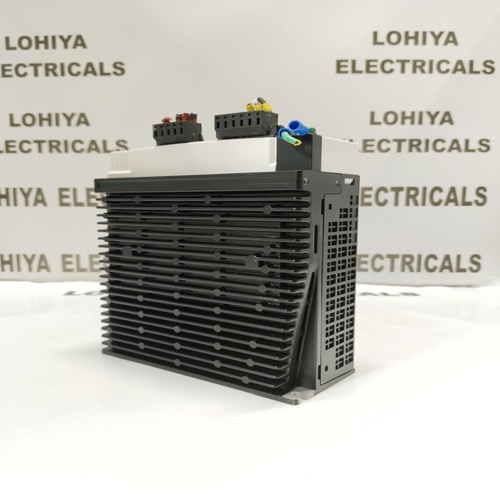

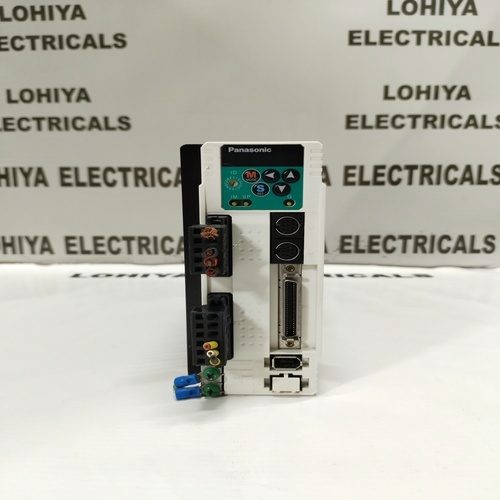

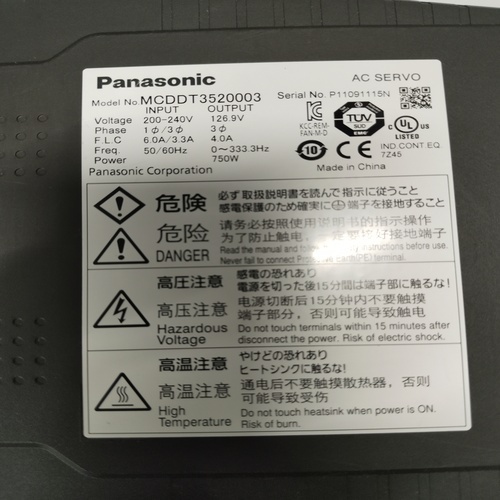

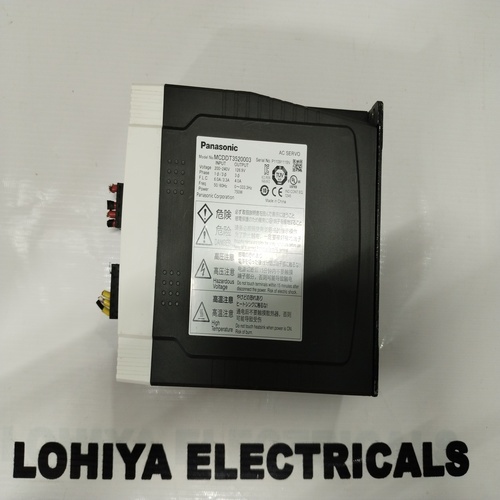

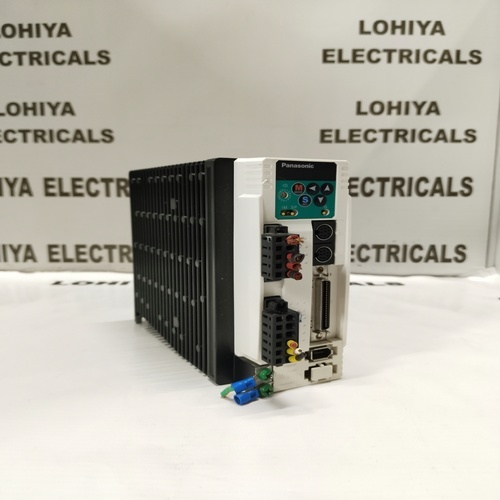

PANASONIC MCDDT3520003 AC SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

PANASONIC MCDDT3520003 AC SERVO DRIVE Specification

Connectivity Type
RS232/RS485, Digital I/O

Components
Power Module, Control Circuit, Fan

Rated Operation Voltage
200-220V AC

Base Material
Metal

Protection Class
Class I

Panel Type
Digital

Cover Material
ABS Plastic

Way
Single

Rated Current
20.2A

Control System
PWM

Thickness
Standard Housing

Protection Level
IP20

Cooling System
Forced Air Cooling

Current Rating
20.2A

Cabinet Material
Metal housing

Features
Overload Protection, Short-circuit Protection, Over-voltage Protection

Operating Voltage
200-220V AC

Rated Insulation Voltage
500V AC

Product Type
AC Servo Drive

Material
Industrial Grade Components

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Black/Grey

Rated Voltage
200-220V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
20.2A

Dimension (L*W*H)
Approx. 340x150x200 mm

Application
Industrial Automation, Motion Control

IP Rating
IP20

Display Type
LED/LCD Panel

Insulation Resistance
>5 M (DC 500V)

Input Phase
3 Phase

Max Output
3.5kW

Compatible Motor Type
AC Servo Motor

Encoder Compatibility
Incremental/Absolute

Weight
7.2 kg

Rated Power
3.5 kW

Mounting Type
Panel/Wall Mount

Response Frequency
Up to 500kHz

Ambient Operating Temperature
0-55C

Model Number
MCDDT3520003

Communication Interface
RS232, RS485, Pulse Train

About PANASONIC MCDDT3520003 AC SERVO DRIVE

Experience an astonishing deal on the PANASONIC MCDDT3520003 AC Servo Drive a brilliant and sought-after choice for industrial automation. With a top-rated power of 3.5 kW and a maximum output current of 20.2A, this robust drive operates efficiently at 200-220V AC. Its superior features, including RS232/RS485 connectivity, overload and short-circuit protection, and a digital LED/LCD panel, ensure reliable performance. Engineered from industrial-grade materials with a protective IP20 rating and compliant with IEC/EN 61800-5-1 standards, its the optimal, reduced-price solution for precise motion control.

Versatile Industrial Motion Control Solution

The PANASONIC MCDDT3520003 AC Servo Drive is designed for both specific and general industrial uses, especially motion control and automation systems. Its robust digital panel enables advanced, real-time adjustments, while the PWM-based control system offers precise and efficient operation. Special features like overload, short-circuit, and over-voltage protection ensure safe, continuous operation. Highly sought after for industrial automation projects, it is ideal for demanding environments requiring reliable, high-performance AC servo drives.

Streamlined Order Process and Global Reach

PANASONIC MCDDT3520003 AC Servo Drive samples are available to help customers assess product suitability prior to bulk orders. With a well-rated FOB port in India, we facilitate efficient logistics and fast international delivery. The main export markets include Asia, the Middle East, and Africa, enabling worldwide access to top-tier automation technology through seamless and reliable shipping processes.

FAQs of PANASONIC MCDDT3520003 AC SERVO DRIVE:

Q: How can the PANASONIC MCDDT3520003 AC Servo Drive be integrated into existing industrial systems?

A: The drive features RS232/RS485 and digital I/O connectivity, making integration into current industrial automation systems straightforward and efficient, supporting both incremental and absolute motor encoders.

Q: What protection features are included in this servo drive?

A: This model incorporates advanced overload, short-circuit, and over-voltage protection to safeguard both the device and connected equipment during intensive or prolonged use.

Q: When is this AC Servo Drive most beneficial for industrial applications?

A: The servo drive excels in scenarios requiring high-precision motion control, repeatable positioning, and reliable operation across a wide ambient temperature range (055C).

Q: Where is the ideal installation location for the MCDDT3520003 AC Servo Drive?

A: It can be securely mounted on a panel or wall, preferably within enclosed industrial environments to maximize its IP20 and Class I protection advantages.

Q: What is the process for ordering samples or bulk quantities?

A: Samples can be ordered for initial testing, while bulk orders are processed with efficient logistics from an Indian FOB port, ensuring timely global delivery.
