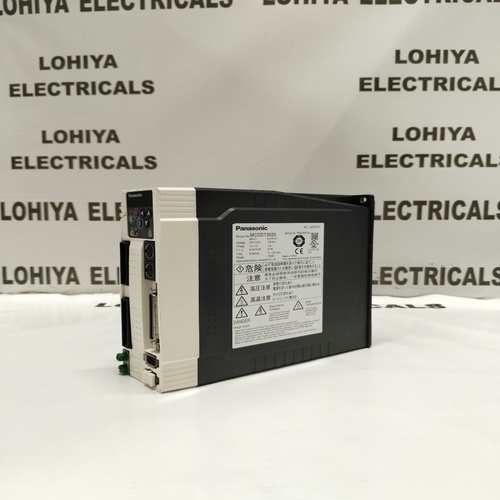

PANASONIC MCDDT3520 AC SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

PANASONIC MCDDT3520 AC SERVO DRIVE Specification

Rated Insulation Voltage
Over 230V

Way
Single

Operating Voltage
200-230 VAC

Protection Level
IP20

Components
Integrated Drive Electronics

Control System
Position/Speed/Torque Control (Digital)

Current Rating
15A

Protection Class
Class I

Rated Current
15A

Features
Compact Size, Overload Protection, Easy Install, High Accuracy

Cabinet Material
Anti-corrosive Metal

Cover Material
Metal / Plastic

Base Material
Aluminum Alloy

Thickness
Standard Industrial

Cooling System
Built-in Fan Forced

Connectivity Type
RS232/RS485,CN I/O Ports

Rated Operation Voltage
200V AC

Panel Type
DIN Mountable

Product Type
AC Servo Drive

Material
Metal Body, Electronic Components

Surface Finish
Powder Coated

Standard
CE, UL Certified

Surface Color
Gray / Silver

Rated Voltage
200-230V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
20A

Dimension (L*W*H)
Approx. 160 x 90 x 150 mm

Application
Industrial Automation, CNC Machinery, Robotics

IP Rating
IP20

Display Type
LED Status Indicators

Power Output
1.5 kW

Humidity
10% - 90% Non-Condensing

Operating Temperature Range
0°C to 55°C

Encoder Feedback
Supports Incremental/Absolute Encoders

Mounting
Vertical

Storage Temperature Range
-20°C to 65°C

Model Number
MCDDT3520

Compatible Motors
Panasonic MINAS A4 / A5 Series

PANASONIC MCDDT3520 AC SERVO DRIVE About

The PANASONIC MCDDT3520 AC Servo Drive is an in-demand, sensational solution for industrial automation, known for its astounding performance and favorable reviews. With instant checkout available, this model offers a soaring power output of 1.5 kW and seamless compatibility with Panasonic MINAS A4/A5 motors. It provides high-accuracy control with integrated digital electronics, LED indicators, and overload protection. Designed for versatile mounting and robust operations under varying temperatures and humidities, this IP20-rated, CE and UL-certified drive is a top choice among suppliers and traders across India.

Reliable Usage Across Industrial Media

The PANASONIC MCDDT3520 AC Servo Drive is tailored for continuous use in industrial environments. Its application extends to CNC machinery, robotics, and other automation systems where precise motion control is vital. Designed for both light and heavy-duty usage, it operates efficiently on a 200-230V AC range and supports various application media, excelling in demanding factory floors, assembly lines, and specialized automation cells.

Sample Policy, FOB Port, and Secure Shipping

For interested buyers, sample units of the PANASONIC MCDDT3520 AC Servo Drive are readily available. Typically shipped from major Indian FOB ports, goods undergo thorough quality inspection, secure packing, and prompt dispatch. Packaged with care to prevent transit damages, each drive is delivered in industry-compliant boxes. The packaging ensures protection and proper identification, reflecting our commitment to safe shipping and customer satisfaction.

FAQs of PANASONIC MCDDT3520 AC SERVO DRIVE:

Q: How does the PANASONIC MCDDT3520 AC Servo Drive improve industrial automation?

A: The MCDDT3520 enhances industrial automation by providing highly accurate position, speed, and torque control, supporting consistent and reliable machine operation. Its integrated drive electronics and easy installation allow for seamless integration with new or existing CNC machinery, robotics, or automated production lines.

Q: What types of motors are compatible with this servo drive?

A: This servo drive is compatible with Panasonic MINAS A4 and A5 series motors, enabling users to upgrade or implement advanced motor solutions for increased efficiency and control precision in their automation systems.

Q: Where is the recommended mounting location for this servo drive?

A: The PANASONIC MCDDT3520 is DIN mountable in a vertical position, making it suitable for installation within industrial control cabinets or electrical panels. Its compact size offers flexibility for space-constrained environments.

Q: What is the sample policy for this servo drive?

A: Sample units are available upon request. Interested buyers can obtain samples for evaluation and testing prior to bulk purchase, ensuring the product meets specific application requirements and quality standards.

Q: When can I expect the shipped goods to arrive after checkout?

A: Shipments are dispatched promptly from major Indian FOB ports, with packaging and dispatch typically completed within a short time frame. Delivery times will vary based on the destination but aim for prompt arrival and secure transit.
